Industrial Glass Handling Glazing Robot
Built by Qingdao Hanhai Industry
Overview

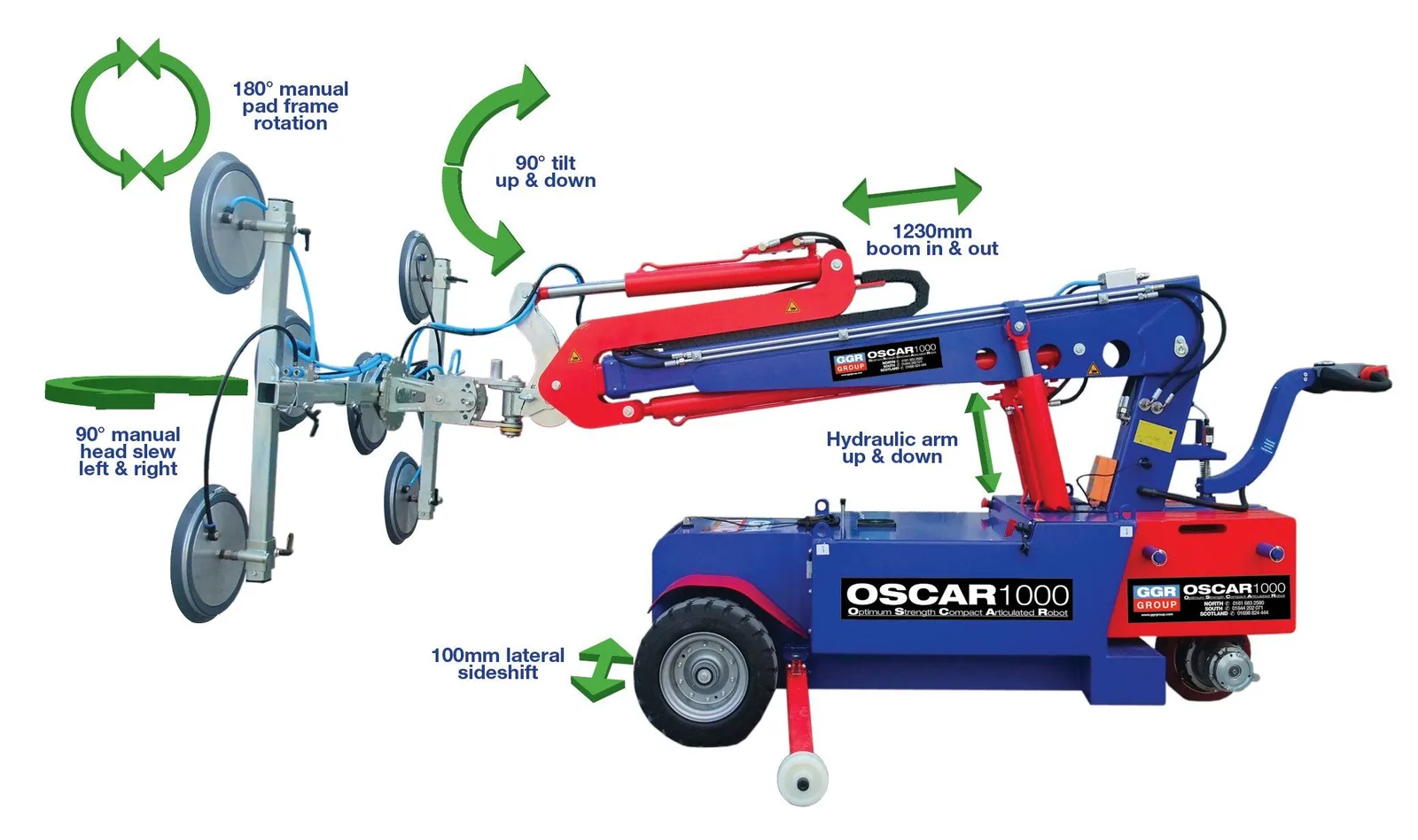

Glazing Robot Electric Suction Cups Glass Vacuum Lifter is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various work pieces (such as glass, iron plates, etc.) Pick up, and transport the work piece to the designated position through the rotatable mechanical arm.
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Payload
- ≤ 600 kg
- Reach
- 3500 mm
- Mounting
- floor
- Programming
- manual control
- Safety cert.
- CE, ROHS, SGS
- Force limiting
- No
- Maturity
- commercial
- Industries
- construction, glass handling
Detailed specifications
Power & battery1
- Power Battery
- Movment2
Other19
- Origin
- China
- HS Code
- 8428609000
- Trademark
- HH Glass Machinery
- Price Tier
- 10-20K
- Tilt Degree
- 90
- Cup Quantity
- 2-20
- Applications
- glass_moving_and_installing
- Front Wheel Mm
- 310*100
- Remote Control
- Optional
- Warranty Years
- 1
- Specification Mm
- 1100*940*500
- Sponge Sucker Mm
- Square 400*250
- Hydraulic Movment
- Rotation 360degree
- Lifting Height Mm
- 5000
- Transport Package
- Packed by Wooden Box
- Production Capacity
- 5000000
- Size Of Suction Cap Mm
- 300
- Smart Pneumatic Control
- Dual Circuit Vacuum System with Check Valve
- High Performance Pump Station Oil Tank
- Anti-Explosion Valve and Over-Flow Valve for Safety
