Jiaxin 1500mm Working
Built by Shandong Jiaxin Machinery Equipment · China

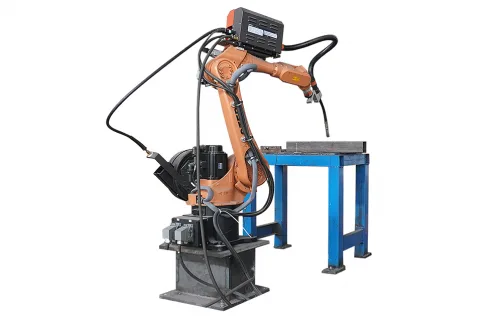

The Jiaxin 1500mm Working is a Industrial Arm developed by Shandong Jiaxin Machinery Equipment (China), priced $6,500–$10,000 USD. Key specifications: arm class welding, axes 6, payload ≤ 10 kg, reach ≤ 1440 mm.
Robo Index
Strong evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how Jiaxin 1500mm Working measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview
Cnc Industrial Automatic Arm Robot Welding Equipment With Robotic Arm Welding Robot. Industrial robots are multi-joint manipulators or multi-degree-of-freedom robots oriented to the industrial field. An industrial robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc.; all tasks are completed with high efficiency, durability, speed and accuracy.
Buyer decision signals
Viability
Jiaxin robot arm shown at Vietnam Expo
Availability
Specifications
Category: Industrial Arm- Arm class
- welding
- Axes
- 6
- Payload
- ≤ 10 kg
- Reach
- ≤ 1440 mm
- Repeatability
- ±0.05 mm
- Weight
- 172 kg
- IP rating
- IP67
- Mounting
- floor, ceiling
- Programming
- teach pendant,drag and drop
- Safety cert.
- ISO, CE
- Force limiting
- No
- Maturity
- commercial
- Industries
- welding
Company profile
- Founded
- 2013
Detailed specifications
Motion & kinematics1
- Dof
- 6
Other19
- Max Stroke
- 1440
- Price Tier
- 10-20K
- Max Payload
- 10
- Control Mode
- Continuous Path Control
- Travel Range
- {"J1 axis S":"+160°/-160°","J2 axis L":"+80°/-145°","J3 axis U":"+145°/-75°","J4 axis R":"+190°/-190°","J5 axis B":"+50°/-210°","J6 axis T":"+230°/-230°"}
- Travel Speed
- {"J1 axis S":"199.5 °/s","J2 axis L":"159.3 °/s","J3 axis U":"199.5 °/s","J4 axis R":"392 °/s","J5 axis B":"272 °/s","J6 axis T":"1000 °/s"}
- Applications
- welding,loading,forging
- Welding Torch
- Standard air-cooling torch with built-in anti-collision protection
- Max Speed M S
- 2.77
- Model Variants
- MR10-1440
- Operating Temp
- 0°C to 45°C
- Warranty Years
- 1
- Welding Current
- 350A/500A
- Company Country
- CN
- Welding Machines
- Standard: Aotai NBC-350R (MIG/MAG/CO2), Optional: Aotai NBC-350RL (low spatter)
- Installation Mode
- Floor type, ceiling type
- Fieldbus Protocols
- EtherCAT,TCP/IP
- Availability Status
- available
- Additional Information
- The Robot Arm is equipped with a high-performance MIG/TIG welding power source, customizable for various industrial applications.,Natural cooling method for maintaining optimal operating conditions.,Designed for robustness with a wide temperature and humidity operating range.,Available for different installation types including floor and ceiling.
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Shandong Jiaxin Machinery Equipment Co., Ltd. or an authorized seller.
Request a quote — goes straight to Shandong Jiaxin Machinery Equipment Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Oct 2020MilestoneJiaxin robot arm shown at Vietnam Expo
- Dec 2013MilestoneCompany Established
- 2023MilestoneOver 10 Years of Experience
- 2013LaunchLaunch of CNC Plasma Cutting Machines
- 2013LaunchLaunch of Rebar Bending Machines
Compare with peers
More by Shandong Jiaxin Machinery Equipment
Frequently asked questions
- Who makes the Jiaxin 1500mm Working?
- The Jiaxin 1500mm Working is developed by Shandong Jiaxin Machinery Equipment, based in China.
- What type of robot is the Jiaxin 1500mm Working?
- The Jiaxin 1500mm Working is a Industrial Arm made by Shandong Jiaxin Machinery Equipment.
- How much does the Jiaxin 1500mm Working cost?
- The Jiaxin 1500mm Working is priced $6,500–$10,000 USD.
- What are the key specifications of the Jiaxin 1500mm Working?
- Key specifications of the Jiaxin 1500mm Working: arm class welding, axes 6, payload ≤ 10 kg, reach ≤ 1440 mm, repeatability ±0.05 mm.
