Overview

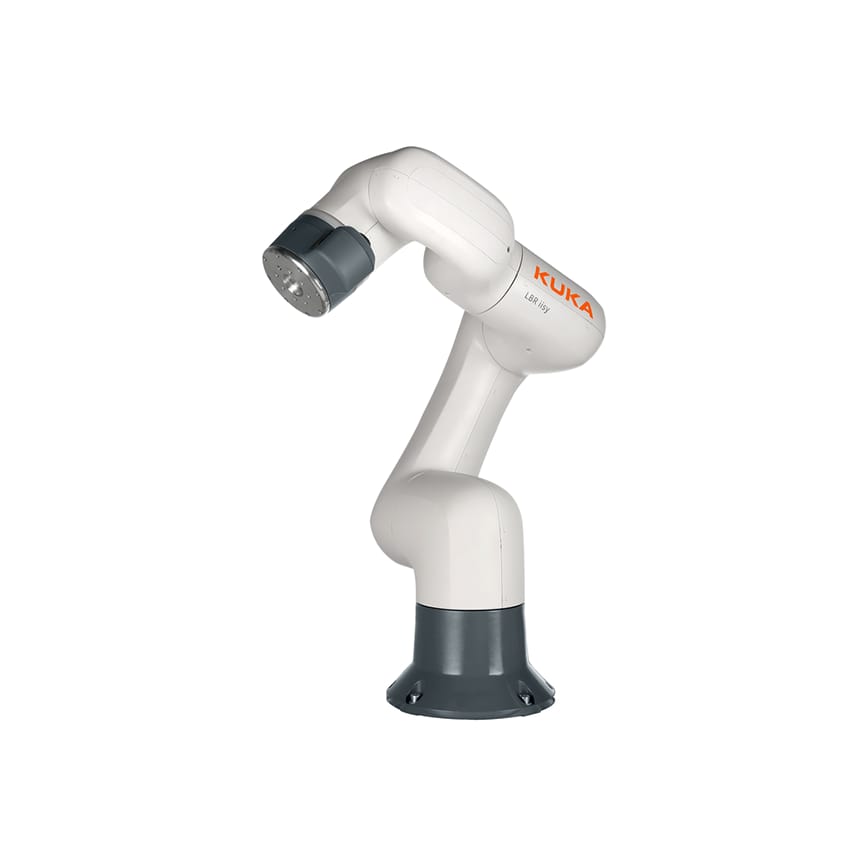

The LBR iisy 3 R760 is designed for agile and flexible applications, offering a load capacity of 3 kg and a maximum reach of 760 mm. It provides easy integration into production environments and is ideal for precise handling and machine loading tasks.
Flagship features
- Fast commissioning and easy repurposing
- Ideal for human-robot collaboration (HRC) tasks
- Can operate at maximum speed for non-HRC tasks when humans are absent
- Part of the iiQKA Robotic Republic ecosystem for easy expansion with various system components
- Out-of-the-box experience enables setup and basic programming in 30 minutes
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- 3 kg
- Reach
- 760 mm
- Repeatability
- ±0.1 mm
- Weight
- 22.8 kg
- IP rating
- IP30
- Safety cert.
- ISO/TS 15066
- Force limiting
- Yes
- F/T sensing
- none
- No-code
- Yes
- Teach pendant
- SmartPAD-Pro
- CaaS / month
- $1,000
Detailed specifications
Other5
- Original Price
- {"amount":23445,"currency":"EUR"}
- Company Country
- DE
- Controller Model
- KR C5 micro
- Additional Information
- - Fast commissioning and easy repurposing. - Ideal for human-robot collaboration (HRC) tasks. - Can operate at maximum speed for non-HRC tasks when humans are absent. - Part of the iiQKA Robotic Republic ecosystem for easy expansion with various system components. - Out-of-the-box experience enables setup and basic programming in 30 minutes.
- Price Currency Verified
- true
