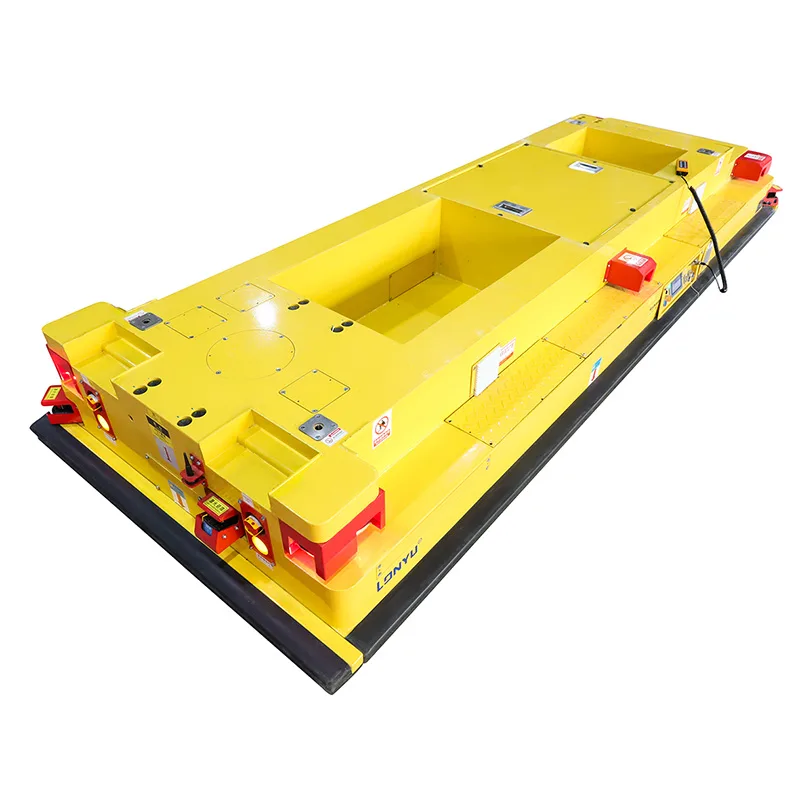

The Lonyu Heavy-Duty AGV 24136A is a AGV developed by Lonyu Agv (China), launched 2012, listed at $100,000 USD (unverified). Key specifications: payload 12000 kg, speed 0.25 m/s, navigation magnetic_tape, guidance Magnetic strip navigation.
RoboScore
Strong evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
5 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 5 scored · blanks don't count
Not in the AGV standing. The standings cover robots first sold from 2020 onward, and this one launched in 2012. Its Robo Score above is unaffected — the score is the evidence, the standing is only who it is listed against.
See the AGV standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how Lonyu Heavy-Duty AGV 24136A measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview
The Lonyu Heavy-Duty AGV model 24136A is an automated guided vehicle designed for transporting extremely heavy loads up to 50,000 kg. It features a differential drive with four-wheel drive and eight wheels, a low-voltage servo motor with independent servo control, and a lithium iron phosphate battery. Safety features include collision avoidance, emergency stop buttons, obstacle detection sensors, and a safety laser scanner. It is designed for indoor use, with a maximum speed of 30 meters per minute and a climbing ability of up to 3 degrees. The robot has an IP54 protection rating and is customizable. Lonyu AGV specializes in heavy-duty AGVs for industries like aerospace, high-speed rail, wind power, and heavy truck manufacturing, providing solutions for moving oversized and overweight objects in industrial IoT systems.
Flagship features
- Back-loading lifting type for heavy payloads
- Differential drive mode enables omnidirectional movement (forward/backward, left/right, rotation)
- Safety features: laser obstacle avoidance, safety edge touch, sound/light alarm, emergency stop
- Manufacturer offers a range from 3-ton to 600-ton heavy duty AGVs
- Suspension method: spring and hydraulic
- Power system: pure electric with automotive-grade LiFePO4 batteries
Buyer decision signals
Viability
300-ton outdoor AGV debut in Tianjin
Price
Unverified — no source on record
Availability
Specifications
Category: AGV- Payload
- 12000 kg
- Speed
- 0.25 m/s
- Navigation
- magnetic_tape
- Guidance
- Magnetic strip navigation
- Turn radius
- 1750 mm
- Fleet software
- AGVS cluster operation and maintenance system
Company profile
- Founded
- 2008
Detailed specifications
What it is built for8
- Industries
- manufacturing
- Amr Subtype
- other
- Applications
- pallet transport
- Sub Category
- backpack heavy duty
- Payload Class
- ultra heavy
- Industries Served
- aerospace,industrial,high-speed rail,wind power,ships,heavy trucks
- Environment Rating
- indoor only
- Primary Applications
- manufacturing logistics
Size & capacity3
- Width Mm
- 2682
- Height Mm
- 659
- Length Mm
- 4660
Movement & precision4
- Drive Mode
- Low Voltage Servo Motor + Independent Servo Control
- Control Mode
- Automatic
- Max Incline Deg
- 3
- Obstacle Detection
- true
Controls & integration1
- Customization
- Available
Safety & certification1
- Pedestrian Detection
- generic obstacle
Buying & support7
- Price Tier
- 150K+
- Price Currency
- USD
- Pricing Models
- capex
- Lead Time Weeks
- 2
- Price On Request
- false
- Availability Status
- available
- Countries Available
- CN
Other details9
- Walking Speed
- 30 Meters/Min
- Body Structure
- Differential Drive
- Lift Height Mm
- 120
- Lifting Stroke
- 120 mm
- Climbing Ability
- ≤ 3 °
- Protection Level
- IP54
- Battery Chemistry
- lifepo4
- Predictive Maintenance
- ml based
- Number Of Driving Wheels
- Four-Wheel Drive and Eight Wheels
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Lonyu Agv Co., Ltd or an authorized seller.
Request a quote — goes straight to Lonyu Agv Co., Ltd.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Jan 2025Launch300-ton outdoor AGV debut in Tianjin
- 2025MilestoneLonyu AGV company profile
- 2025LaunchLY-3-100T-612-B product listing
- 2008MilestoneCompany founded
Compare with peers
Frequently asked questions
- Who makes the Lonyu Heavy-Duty AGV 24136A?
- The Lonyu Heavy-Duty AGV 24136A is developed by Lonyu Agv, based in China.
- What type of robot is the Lonyu Heavy-Duty AGV 24136A?
- The Lonyu Heavy-Duty AGV 24136A is a AGV made by Lonyu Agv.
- How much does the Lonyu Heavy-Duty AGV 24136A cost?
- The Lonyu Heavy-Duty AGV 24136A is listed at $100,000 USD in the Robolist catalogue, but this figure is unverified and not confirmed by Lonyu Agv — contact them for a quote.
- When was the Lonyu Heavy-Duty AGV 24136A launched?
- The Lonyu Heavy-Duty AGV 24136A was launched in 2012.
- What are the key specifications of the Lonyu Heavy-Duty AGV 24136A?
- Key specifications of the Lonyu Heavy-Duty AGV 24136A: payload 12000 kg, speed 0.25 m/s, navigation magnetic_tape, guidance Magnetic strip navigation, turn radius 1750 mm.
