Overview

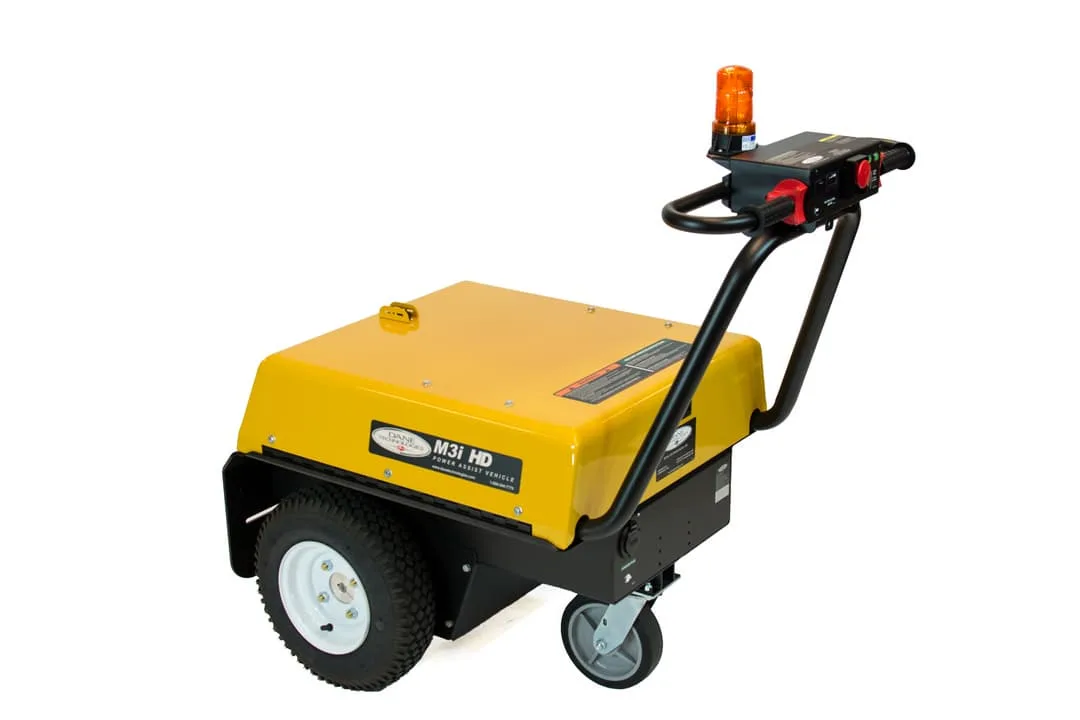

The M3i HD is the high capacity industrial mover designed with heavy duty upgrades to handle larger loads, while still featuring the same maneuverability & ergonomic design as the standard M3i.
Key specs
- Built for material handling, machine tending and assembly
- Certified to QuicKART®: Optional UL Standard 583 and Smart Charger: UL Standard 1564
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Medium payload
- Teach pendant
- UL-certified (583 ES)
- Industrial, logistics, transportation
Detailed specifications
What it is built for1
- Applications
- material handling,machine tending,assembly,press tending,airport logistics,transportation center logistics,military logistics
Safety & certification1
- Certifications
- QuicKART®: Optional UL Standard 583; Smart Charger: UL Standard 1564; Remote Control: FCC & CE Approved
Buying & support4
- 40-80K
- Model Variants
- M3i,M3i HD
- Price On Request
- Yes
- Availability Status
- available
Other details12
- Motor
- Electric 1.38 HP 4-pole (1000W) / Electric 1.75 HP 4-pole (1120W)
- Tires
- Front: (2) 12 in. Solid Knobby Tread / (2) 16 in. Foam-Filled Knobby Tread; Rear: 8.5 in. x 3.5 in. Solid Swivel Caster
- Batteries
- (3) Group 31 Maintenance-Free
- Battery Life
- 12 hours Continuous Output
- Hood Material
- Welded Heavy Gauge Steel with Powder Coating
- Battery Options
- Exide NG 27, Trojan 225, Deka Maintenance-Free
- Weight Capacity
- 18,400 lb (1,814 kg) / 20,000 lb (2,721 kg) under ideal surface conditions
- Transaxle Torque
- 1,100 in.-lb Continuous, 1,400 in.-lb Peak / 1,820 in.-lb Continuous, 2,143 in.-lb Peak
- Typical Roi Months
- 6
- Accessories Options
- Battery Options Available, Radio Mode Remote Control, Safety Beacon Height Extension, Tire Options, Specialized Cart Hitches for Pushing/Towing, Optional Traction Packages
- Programmable Speeds
- Forward: 0 – 3.3 mph (0 – 5 kph); Reverse: 0 – 1.0 mph (0 – 1.6 kph); RADIO Forward FAST: 2.7 mph (4.3 kph); SLOW: 0.8 mph (1.3 kph)
- Teleoperation Supported
- Yes
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2026DeploymentManifest 2026 deployment mention
- Jan 2026LaunchDane AiR DC freezer package announced for Sub-Zero temperatures
- Jan 2026DeploymentFreezer package deployment disclosed
- 2025MilestoneDane AiR DC unveiled
- Mar 2025MilestoneProMat 2025 showcase announced
- Mar 2025LaunchDane Technologies and Brain Corp unveil Dane AiR DC
- 2019DeploymentVGVs used by CJ Logistics to improve conveyor operations
- 1996LaunchQuicKART® introduced
Compare with
More by Dane Technologies
Frequently asked questions
- Who makes the M3i HD?
- The M3i HD is developed by Dane Technologies, based in United States.
- What type of robot is the M3i HD?
- The M3i HD is a Industrial Arm made by Dane Technologies.
- How much does the M3i HD cost?
- Pricing for the M3i HD is not publicly listed. Contact Dane Technologies for a quote.
- What are the key specifications of the M3i HD?
- Key specifications of the M3i HD: arm class medium payload, programming teach pendant, safety cert. UL-certified (583 ES), industries industrial, logistics, transportation.
