Non Wiping Kolon360plus
Built by Shanghai Kuo Long Cleaning Machinery
Updated May 2026·methodology
Overview

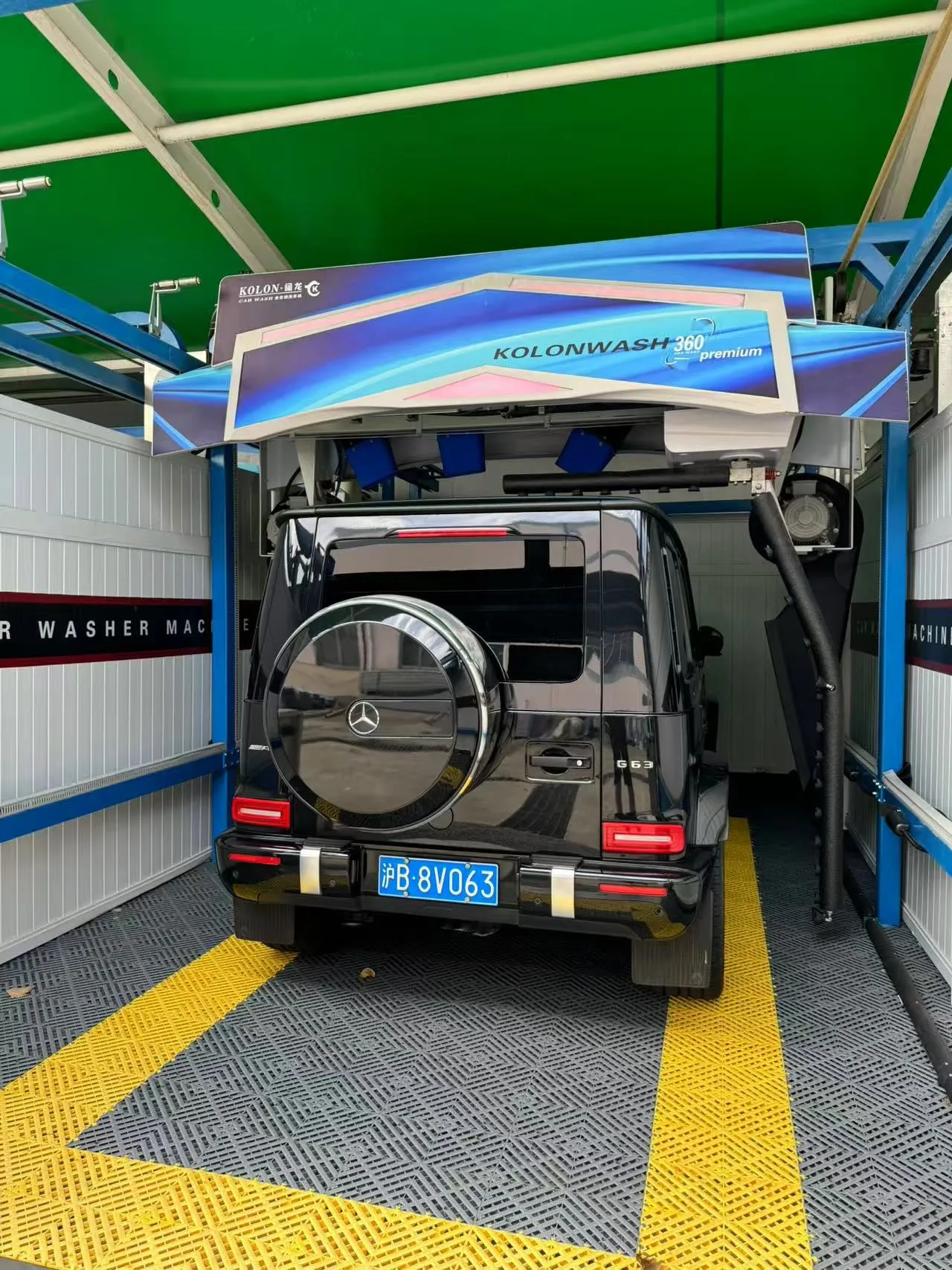

Non wiping KOLON360PLUS automatic car washing robot with air drying function 360premium. Hello, I'm from Shanghai kolon cleaning machinery Co., Ltd., specializing in the production of automatic car washing machines. We have 16 years of experience in the production, R & D and sales of automatic car washing machines. We hope to cooperate with you.
Detailed specifications
Power & battery4
- Total Power
- 45KW
- Fan Motor Power
- Siemens motor (20.5kw) fan air volume total pressure 11000pa / air volume 23000m3 / h
- Power Requirements
- 380V / 22kw
- Switching Power Supply
- Taiwan Mingwei longitudinal drive motor Jinlong motor (370W)
Sensors1
- Ultrasonic Sensor
- German doublefour photoelectric sensor, bunner, USA
Other20
- Frames
- 13 frames
- Tracks
- 2 tracks (7.5m)
- Accessories
- pipe fittings and accessory boxes
- Applications
- automotive
- Sub Category
- car_wash_system
- PLC Controller
- Siemens color touch screen Taiwan Delta
- Warranty Years
- 3
- Company Country
- CN
- Industries Served
- automotive
- Rotary Servo Motor
- Taiwan delta transverse servo motor Taiwan Delta
- Additional Information
- - Stationary car wash system (not a mobile robot); uses a gantry-style frame with rotating arms. - Smart 360plus technology for adaptive wash process. - Intelligent chemical mixing system uses only 20-50 ml of chemical per car. - Embedded quick drying system with four 5.5 kW motors and cylindrical air outlets. - Self-service card payment system integration for unmanned operation. - Digital voice security alarm and one-button antifreeze system. - Uses German PINFL high-pressure pump and Siemens motor. - Applicable to multiple vehicle types including dual tires. - Not an autonomous mobile robot; it is a fixed automated cleaning equipment.
- Wider Car Washing Width
- 2900mm
- High Pressure Water Pump
- German Pifu water pump motor power Siemens motor (18.5kw)
- Larger Car Washing Height
- 2050 (mm)
- Larger Car Washing Length
- 5900mm
- Total Weight Of Equipment
- 2600kg / 10.5m3
- Overall Dimension Of Proportioner (L * W * H)
- 800 * 450 * 1400 (mm)
- Overall Dimension Of Equipment (Length * Width * Height)
- 3500 * 1200 * 900 (mm)
- Overall Dimension Of Pump Station (Length * Width * Height)
- 1250 * 800 * 600
- Installation Dimension Requirements (Length * Width * Height)
- 7500 * 3800 * 3350 (mm)
