Overview

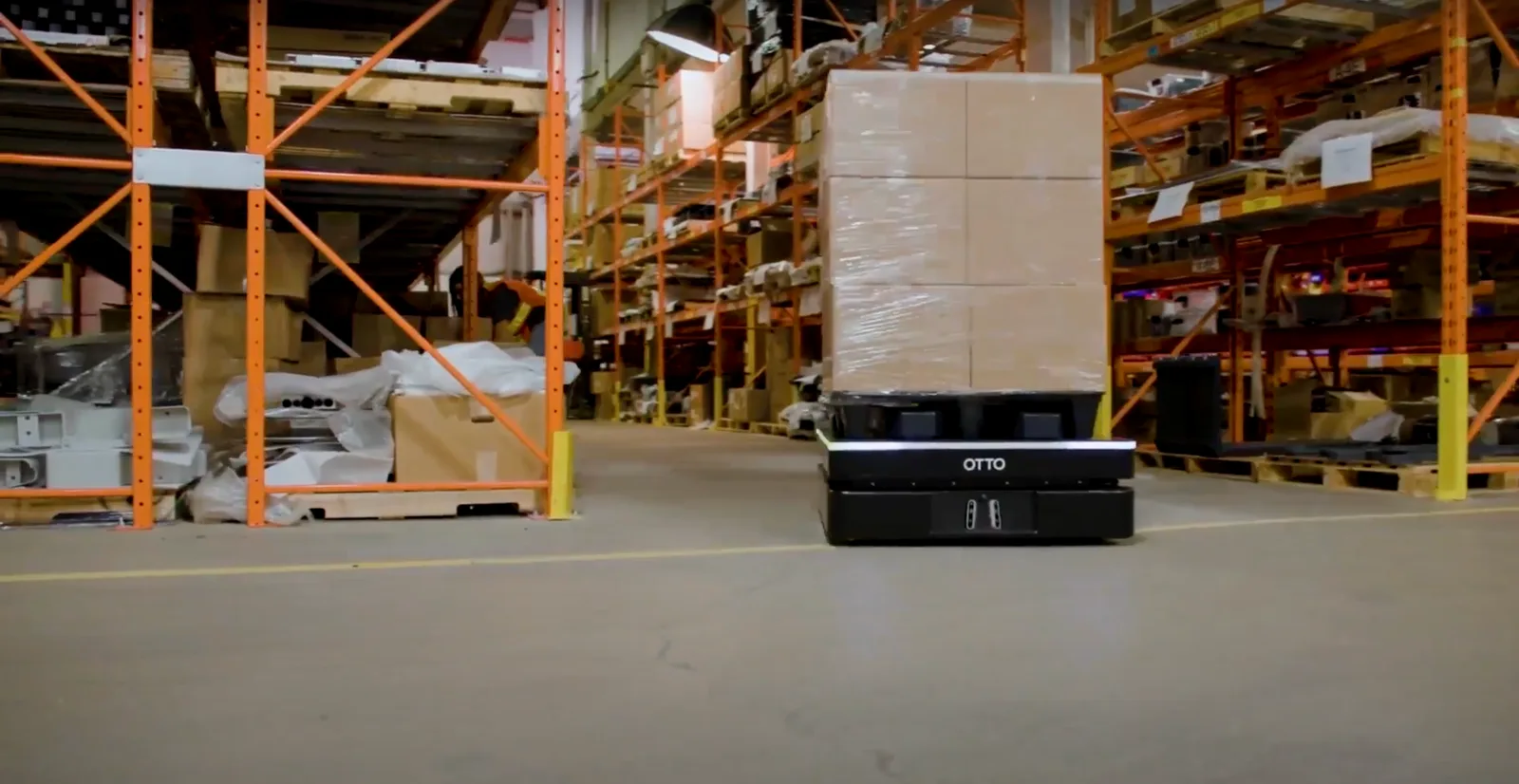

The OTTO 1200 is designed for high-capacity material handling, accommodating loads up to 1200 kg. It provides enhanced throughput and efficiency for larger manufacturing operations.
Flagship features
- Designed for heavy-duty transport of payloads up to 2,640 lb (1,200 kg)
- Suitable for high throughput in tight spaces
- Designed for optimal performance in warehouse logistics
Specifications
Category: Warehouse AMR- Type
- unit load carrier
- Payload
- 1200 kg
- Top speed
- 1.5 m/s
- Navigation
- slam natural
- Safety cert.
- none
- Battery type
- li ion
- Maturity
- commercial shipping
- Pricing model
- unknown
Detailed specifications
Motion & kinematics1
- Docking Repeatability Mm
- 10
Power & battery3
- Charge Time Hours
- 0.5
- Charge Cycles Rated
- 6000
- Battery Capacity Kwh
- 1.008
Sensors3
- Lidar Count
- 2
- Camera Count
- 2
- Safety Lidar Coverage Deg
- 360
Safety & certifications2
- Safety Category
- Cat.3 PLd
- Emergency Stop Count
- 2
Other29
- Width Mm
- 910
- Height Mm
- 320
- Length Mm
- 1350
- Industries
- manufacturing,general_warehousing
- Applications
- pallet_transport
- Auto Docking
- true
- Max Speed Ms
- 1.5
- Sub Category
- pallet_mover
- Auto Charging
- true
- Datasheet Url
- View Link
- Payload Class
- ultra_heavy
- Fleet Software
- OTTO Fleet Manager
- Operating Temp
- 5 to 40° C
- Company Country
- US
- Industries Served
- manufacturing,warehousing
- Network Protocols
- wifi_5
- Software Platform
- OTTO Fleet Manager
- Turning Radius Mm
- 0
- Visual Indicators
- status_led,direction_lights,warning_strobe
- Environment Rating
- indoor_outdoor_dock
- Floor Clearance Mm
- 30
- Obstacle Detection
- true
- Availability Status
- available
- Floor Compatibility
- smooth_concrete,painted_concrete,epoxy
- Ground Clearance Mm
- 30
- Opportunity Charging
- true
- Pedestrian Detection
- human_aware
- Primary Applications
- pallet_picking,putaway
- Additional Information
- - Designed for heavy-duty transport of payloads up to 2,640 lb (1,200 kg). - Suitable for high throughput in tight spaces. - Designed for optimal performance in warehouse logistics.
