Overview

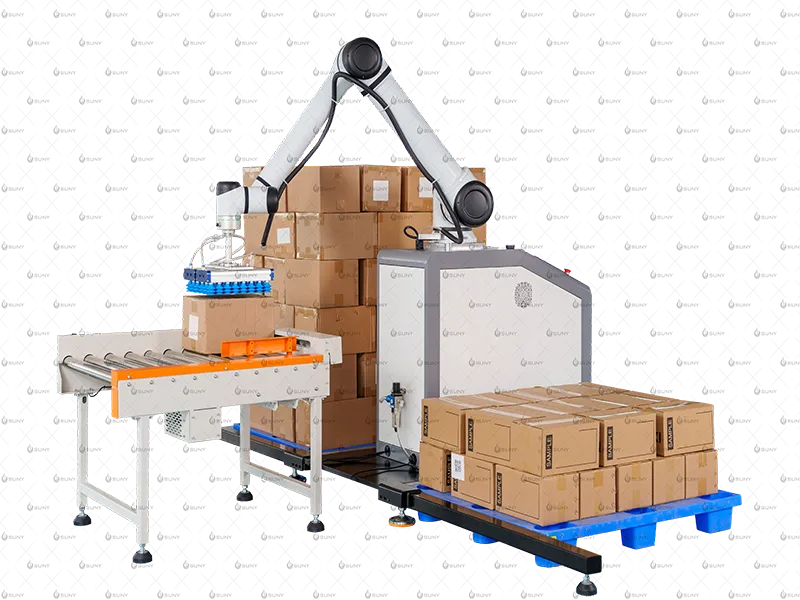

The palletizing robot is an efficient and flexible automated device designed specifically for carton palletizing. Its four-axis arm offers high flexibility, particularly the hollow design of the J1 joint, facilitating both production and maintenance. The J4 axis features a 360° rotation range, allowing cartons to be positioned at any desired angle, enhancing operational flexibility and adaptability. Its maximum operating speed is 390°/second, ensuring efficient palletizing.
Flagship features
- Offers high payload capacity and flexibility
- Designed for reliable performance under real production conditions
- Allows handling of various product types
- Reduces packing labor costs by up to 60%
- Achieves payback periods of 12-24 months
- Modular and scalable solutions for small and medium factories
Specifications
Category: Industrial Arm- Arm class
- palletizing
- Axes
- 4
- Payload
- 120 kg
- Reach
- 2403 mm
- Repeatability
- ±0.02 mm
- Safety cert.
- CE
- Force limiting
- No
- Maturity
- commercial
- Industries
- chemical, beverage, food
Detailed specifications
Motion & kinematics1
- Dof Total
- 4
Power & battery1
- Power Kw
- 7.5
Sensors1
- Sensor Suite
- high-quality sensors,actuators
Other13
- Height Mm
- 2200
- Arm Span Mm
- 2400
- Applications
- warehouse_transport
- Sub Category
- null
- Model Variants
- JCY-MD20G,JCY-MD20S,JCY-MD25G,JCY-MD25S
- Operating Temp
- 0°C to 55°C
- Company Country
- CN
- Max Speed Deg S
- 390
- Deployment Notes
- Widely used in automated warehousing, logistics, and production lines.
- Max Stacking Speed
- 700 times/h
- Additional Information
- - Offers high payload capacity and flexibility - Designed for reliable performance under real production conditions - Allows handling of various product types - Reduces packing labor costs by up to 60% - Achieves payback periods of 12-24 months - Modular and scalable solutions for small and medium factories - Extensive support for installation and after-sales service
- Deployment Environment
- indoor
- Pallet Size Max Length Mm
- 1200
