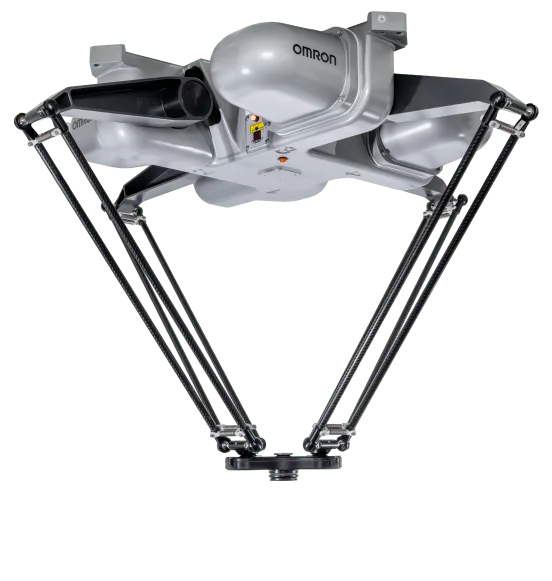

Quattro
Built by Omron Adept · United States
Overview
The Quattro is one of the fastest pick-and-place robots in existence, capable of performing over 300 cycles every minute. When coupled to a vision system, it easily outpaces humans and other robot types at rapid object manipulation. It can handle up to 15-kilogram payloads with a working XY stroke of 1600 mm and Z stroke of 500 mm, featuring a hygienic design with sealed mechanisms for handling primary and secondary food.
Detailed specifications
Motion & kinematics1
- Dof
- 4
Safety & certifications1
- Ip Rating Wrist
- IP67
Other22
- Duty Cycle
- continuous_24_7
- Industries
- food_and_beverage
- Price Tier
- 40-80K
- Applications
- pick_and_place,packaging,sorting
- Sub Category
- delta
- Datasheet Url
- Preview PDF online
- Pricing Model
- purchase
- Model Variants
- Quattro 650H,Quattro 650HS,Quattro 800H,Quattro 800HS
- Price Currency
- USD
- Company Country
- JP
- Deployment Notes
- Mackle Petfoods achieved a 50% productivity boost and cut factory footprint by 30% through an automated packaging solution.
- Price On Request
- true
- Software Platform
- Sysmac Studio
- Fieldbus Protocols
- ethercat,ethernet_ip
- Availability Status
- available
- Countries Available
- US
- Primary Applications
- pick_and_place,packing,assembly,material_handling
- Programming Languages
- IEC 61131-3
- Additional Information
- - USDA accepted for primary food handling (650HS model) - Ethernet capability for integration with NX/NJ machine controllers - Supports multi-hand (multi-picking) operations - High-speed and high-precision conveyance and assembly - PackXpert packaging software available for integrated solutions
- Internal Cable Routing
- through_arm
- Service Network Density
- regional
- Cycle Time 25 305 25 Sec
- 0.33
