Overview

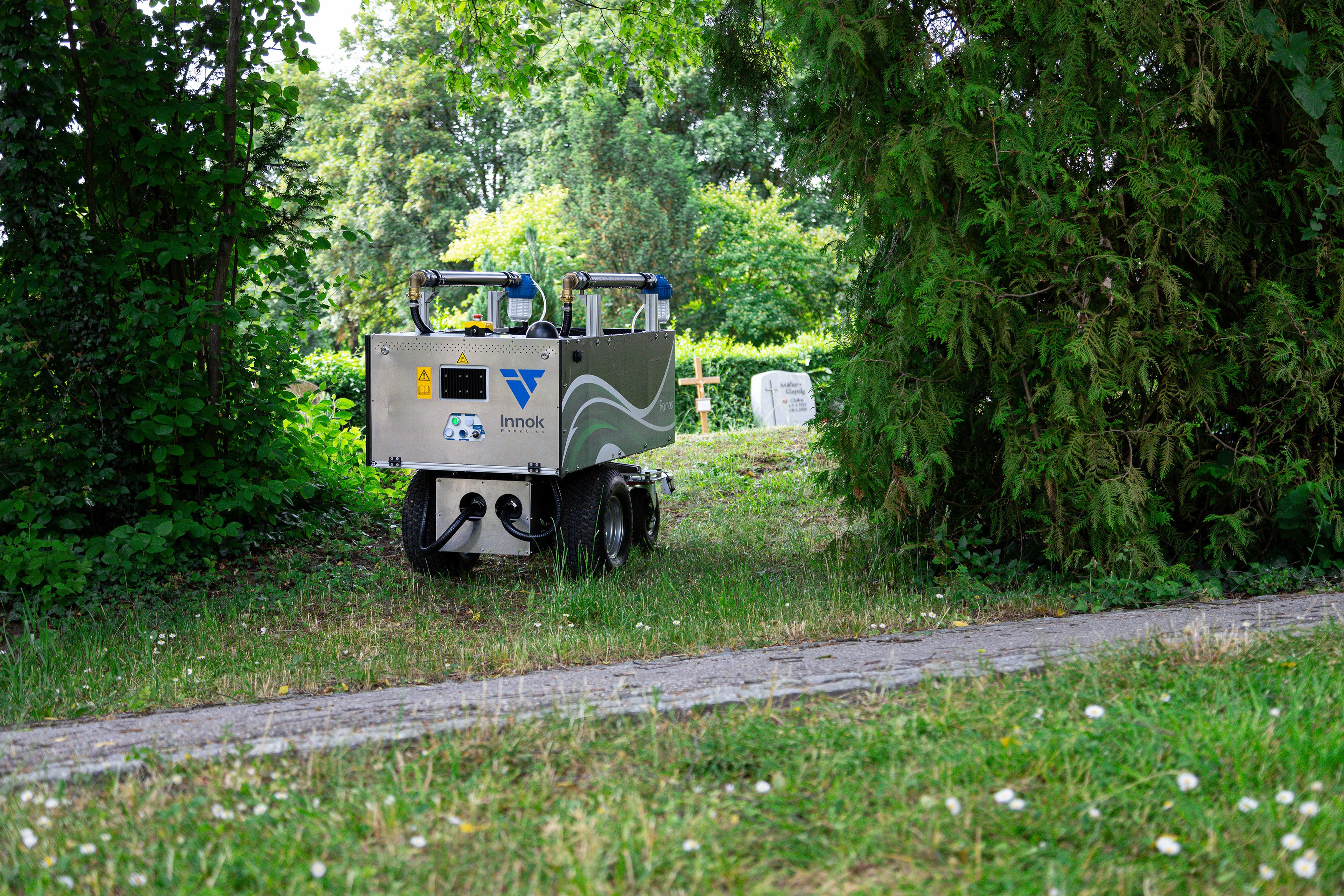

The RAINOS 2.0 is a fully autonomous watering robot designed specifically for cemetery grave irrigation. It operates at night to avoid disturbing visitors, navigates autonomously via LiDAR, and can water up to 200 graves or 20,000 litres per night. The robot features autonomous refuelling at a filling station, adjustable watering patterns per grave, and can traverse poor paths and meadows. It is equipped with a high-performance safety scanner that automatically stops when obstacles are detected. The system includes a 215-litre tank (robot) and 300-litre refuelling station, with battery life up to 16 hours. Designed to address skilled labour shortages in horticulture, it offers rapid amortization and a 'Pour-as-a-Service' model.
Specifications
Category: Agricultural- Payload
- 215 kg
- Speed
- 0.9 m/s
- Weight
- 165 kg
- Battery
- 16 h
- Price
- Contact for quote
- Status
- active
Detailed specifications
Power & battery6
- Motor Power W
- 800
- Battery Power Kw
- 4
- Battery Voltage V
- 48
- Battery Capacity Wh
- 2900
- Refuelling Station Power
- Solar + lithium battery
- Operating Time Per Charge Hours
- 16
Safety & certifications2
- Safety Scanner Range M
- 20
- Safety Scanner Angle Degrees
- ±15°
Other34
- Source Url
- View Link
- Record Type
- robot
- Localization
- LiDAR
- Auto Charging
- true
- Dimensions Mm
- 1250 x 700 x 1100
- Max Speed Kmh
- 3.1
- Fleet Software
- Innok Cockpit
- Mapping Method
- terrestrial 3D scanner, then 2D navigation map
- Track Width Mm
- 570
- Guidance System
- LiDAR
- Partner Network
- Building partner network in DACH region
- Charging Methods
- cable or inductive
- Motor Gear Ratio
- 1:100 or 1:50
- Floor Clearance Mm
- 100
- Remote Maintenance
- Support team can connect to device
- Commissioning Steps
- Mapping environment, setting up location, learning main routes, setting up refuelling/charging stations, creating first 30 casting locations, defining watering patterns, test runs
- Daily Graves Capacity
- 200
- Refuelling Connection
- GEKA
- Tank Capacity Robot L
- 215
- Switzerland Deployment
- true
- Drive Wheel Diameter Mm
- 410
- Price Currency Verified
- false
- Refuelling Time Seconds
- 60
- Tank Capacity Station L
- 300
- Charging Time Full Hours
- 4-6
- Refuelling Station Water
- Line pressure
- Ambient Temperature Max C
- 45
- Ambient Temperature Min C
- -10
- Inductive Charging Available
- true
- Obstacle Detection Height Mm
- 200
- Cemetery Authorization Cities
- Regensburg, Hamburg, Leipzig, Ludwigshafen, Pforzheim, Nuremberg, others
- Daily Watering Capacity Litres
- 20000
- Charging Time 20 80 Percent Hours
- 2
- Station Per Hectare Recommendation
- 1 per hectare (100m x 100m)
