RB5-850

Overview

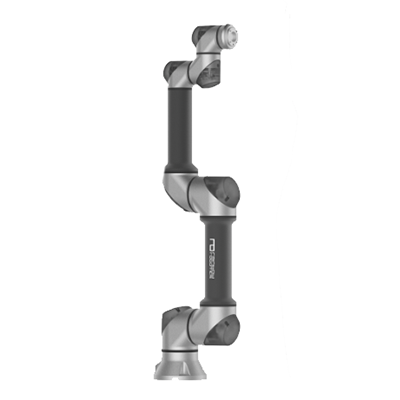

The RAINBOW ROBOTICS RB5-850 is a versatile standard model in the RB series, designed with a maximum load capacity of 5 kg and a work radius of 927.7 mm. This robot is optimized for a variety of tasks in both manufacturing and service industries. Its precision, with a repeatability of ±0.05 mm, ensures consistent performance in production, assembly, and fastening of components. Constructed from a combination of aluminum, plastic, and steel, the RB5-850 is durable yet lightweight at 22 kg. Its compact footprint of 173 mm allows for easy integration into different work environments. The robot features an M10 12-pin connector for tool attachments, supporting both 12V and 24V power, which provides flexibility for various applications. Additionally, it operates efficiently with a power consumption of 200W and maintains noise levels below 65dB(A), making it suitable for settings where quiet operation is essential. Designed to operate within an IP66 environment range and a temperature range of 0-50°C, the RB5-850 is suitable for demanding industrial conditions.
