RoboArc
Built by Metalcraft Automation Group · United States
The RoboArc is a Industrial Arm developed by Metalcraft Automation Group (United States). Key specifications: arm class welding, axes 6, payload 453.6 kg, mounting floor.
RoboScore
Strong evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
3 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 3 scored · blanks don't count
Ranked #352 of 972 in the Industrial Arm standing.
See the standingWhere it has stood42 days · best #273 · worst #353
Nothing changed about this robot itself — what you can see is the field shifting around it, or its maker's news rising and ageing.
One reading per day since 3 Aug, when the current ordering began. The rank above is the reading for 13 Sept, taken against 972 robots — the standing itself is live, so a robot added since then counts there and not here yet.
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how RoboArc measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview
RoboArc - Robotic Welding systems providing high-quality welding automation solutions.
Flagship features

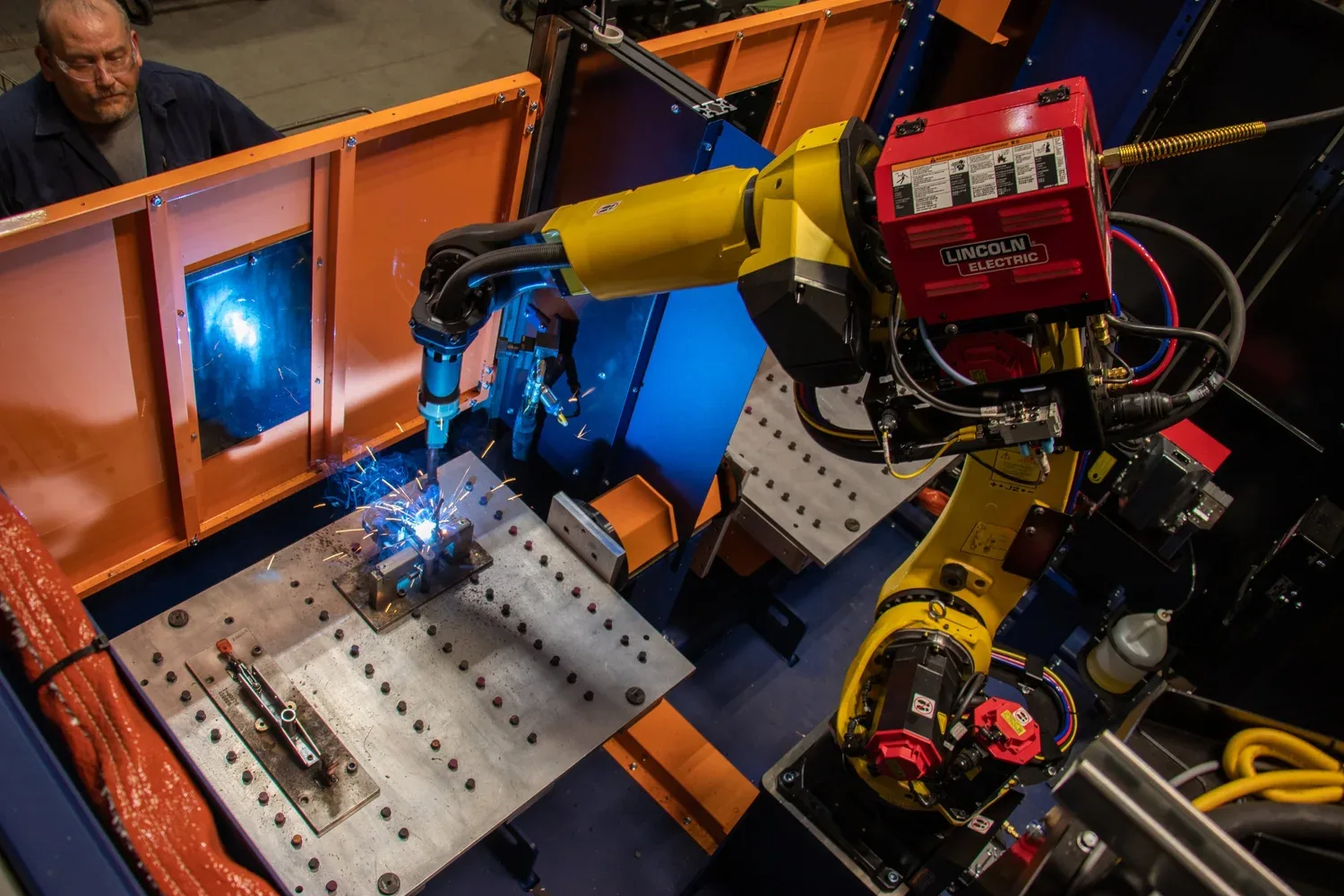

- This is a complete robotic welding cell solution, not a standalone arm
- Uses Fanuc Arc Mate 120iD (6-axis) and Lincoln Power Wave welder
- Dual-station design (two servo headstock/tailstock positioners) for one-operator-two-station productivity
- Positioner max payload: 1,000 lbs (approx. 454 kg); max part size: 19" x 29" x 35"
- Compact footprint, mobile platform base for easy installation
- Includes water-cooled torch, safety scanner, torch cleaning, and dual welding screen doors
Buyer decision signals
Viability
RoboTrex Machine Tending Solution Launch
Specifications
Category: Industrial Arm- Arm class
- welding
- Axes
- 6
- Payload
- 453.6 kg
- Mounting
- floor
- Programming
- teach pendant
- Tool flange
- ISO 9409-1
- Safety cert.
- OSHA compliance
- Force limiting
- No
- Maturity
- commercial
- Industries
- manufacturing
Top 7% of 834 models with this spec
Detailed specifications
What it is built for5
- Industries
- metal fabrication
- Applications
- spot welding,arc welding
- Sub Category
- arc welding
- Procedure Types
- robotic welding
- Primary Applications
- spot welding,arc welding
Buying & support2
- Price Tier
- 40-80K
- Price On Request
- true
Other details3
- Weldable Area
- 2.5 m
- Cage Dimensions
- 150-450 mm in height, 100-400 mm in width, up to 4.5m in length
- Cage Accommodation
- Additional lengths and dimensions available upon request
Who runs it· deployment evidence
No deployment evidence on file
A deployment is recorded when a public source names the customer, or the maker confirms it. Nothing here counts against this robot.
4 other robots in this category have one.
Add a deployment →Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Metalcraft Automation Group or an authorized seller.
Request a quote — goes straight to Metalcraft Automation Group.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- 2021LaunchRoboTrex Machine Tending Solution Launch
- —MilestoneAutomated milling demo content released
- —LaunchRoboMill product page published
- —DeploymentRoboMill cell for SCAG consoles and fuel tanks
- —DeploymentHorizon Machine of South Dakota Deployment
- —PartnershipMetalcraft Automation Group and Lang Partnership
Compare with peers
More by Metalcraft Automation Group
More videos
RoboArc H-Frame Weld Cell
Frequently asked questions
- Who makes the RoboArc?
- The RoboArc is developed by Metalcraft Automation Group, based in United States.
- What type of robot is the RoboArc?
- The RoboArc is a Industrial Arm made by Metalcraft Automation Group.
- How much does the RoboArc cost?
- Pricing for the RoboArc is not publicly listed — contact Metalcraft Automation Group for a quote.
- What are the key specifications of the RoboArc?
- Key specifications of the RoboArc: arm class welding, axes 6, payload 453.6 kg, mounting floor, programming teach pendant.
