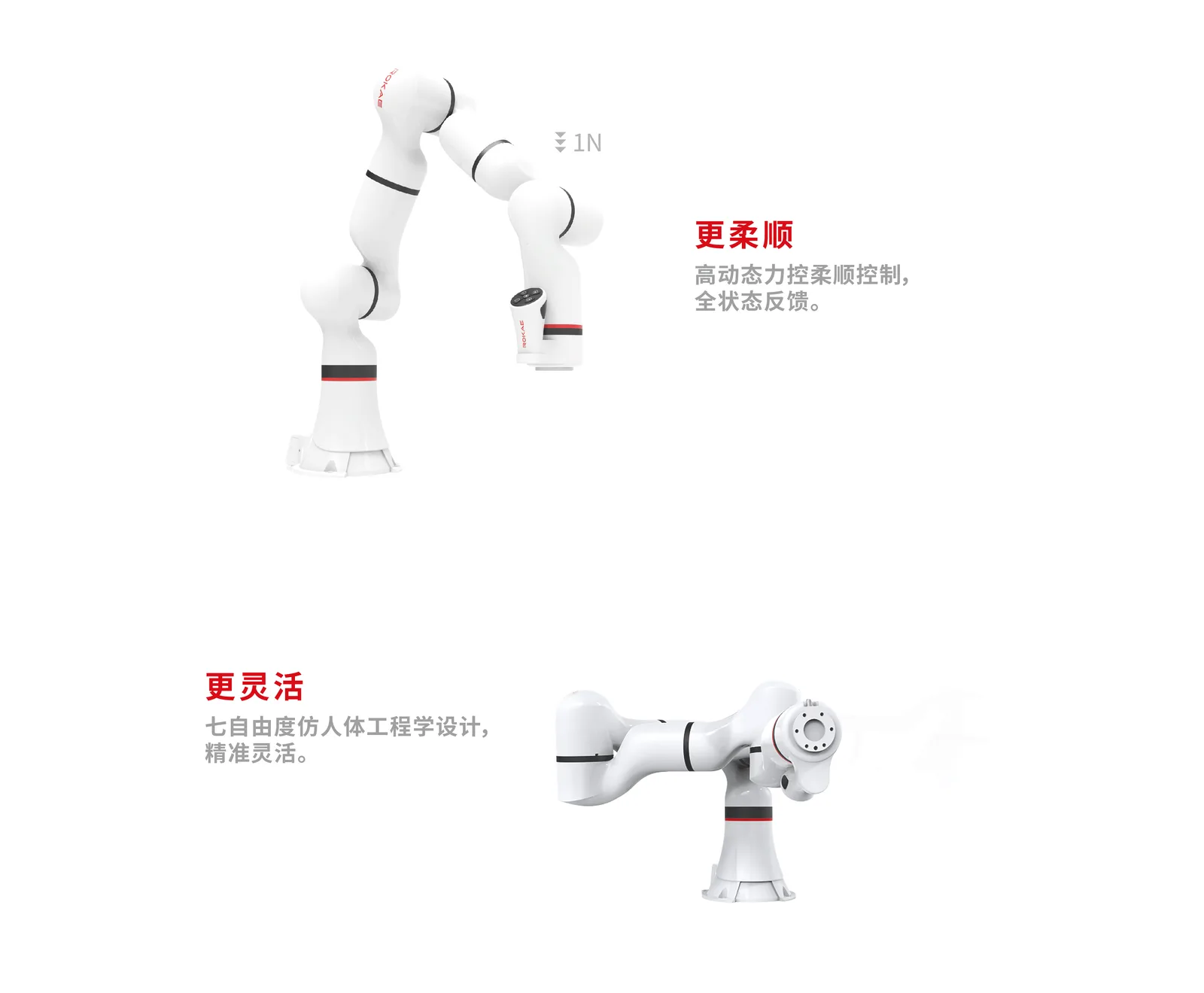

Overview
The ROKAE xMate ER7 Pro is a 7-axis collaborative robot designed for precision assembly tasks in the fast-growing electronics industry. It features cutting-edge force-controlled motion search technology, allowing it to perform complex, dangerous, and highly repetitive tasks reliably and consistently, thereby enabling human workers to focus on value-added tasks. Equipped with an integrated 2D industrial camera, it allows for high-speed defect detection and correction, making it an ideal choice for contactless and damage-free inspections.
Key facts
- Payload
- 7 kg
- Reach
- 1125 mm
- DOF
- 7
- Repeatability
- ±0.03 mm
- TCP speed
- 2.5 m/s
Detailed specifications
Motion & kinematics2
- Dof
- 7
- Repeatability Mm
- 0.03
Power & battery1
- Power Consumption W
- 600
Safety & certifications1
- Safety Certification
- EN ISO 13849-1,Cat 3 Pl=d,CE
Other19
- Price Tier
- 40-80K
- Applications
- pick_and_place,visual_inspection
- Datasheet Url
- Preview PDF online
- Max Speed M S
- 2.5
- Force Limiting
- true
- Model Variants
- ER3,ER3 Pro-M,ER7 Pro-M
- Operating Temp
- 0 - 45°C
- Company Country
- CN
- Deployment Count
- 100
- Deployment Notes
- Utilized in precision assembly of 3C electronics.
- Mounting Options
- пол,потолок,стена
- Industries Served
- electronics
- Software Platform
- ROKAE Studio
- Training Required
- basic_<1day
- Fieldbus Protocols
- EtherCAT,TCP/IP,Modbus TCP,Profinet,Ethernet IP,DeviceNet,CC-Link IE Field Basic
- Availability Status
- available
- Countries Available
- CN
- Programming Interface
- drag_and_drop
- Additional Information
- - Оснащён силомоментными датчиками с обратной связью. - Поддерживает контроль усилия в декартовом и суставном пространстве. - Более 22 настраиваемых параметров безопасности. - Межремонтный период более 50 000 часов. - Общий порт ввода/вывода: 4 цифровых входа и 4 цифровых выхода.
