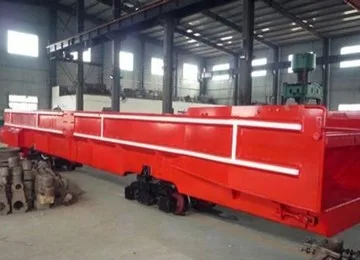

ST Shuttle Mine Car
Built by China Coal Group · CN
Overview
The ST Shuttle Mine Car is a high-efficiency gangue transport device designed primarily for use in underground roadway projects, tunnels, and culverts. It serves as an essential piece of equipment in transporting materials within mining operations, particularly in railway tunnels and military cavern excavation. With multiple size variations, the ST Shuttle Mine Car can handle significant payloads and adapt to various underground environments.
Detailed specifications
Power & battery1
- Max Motor Power Kw
- 18.5,18.5*2,22*2,22*2,30*2
Other14
- Volume M3
- {"ST(D)-14B":14,"ST(D)-16B":16,"ST(D)-20B":20,"ST(D)-25B":25,"ST(D)-30B":30}
- Drive Mode
- single drive,double drive
- Self Weight T
- {"ST(D)-14B":13.6,"ST(D)-16B":17.8,"ST(D)-20B":19.84,"ST(D)-25B":22.6,"ST(D)-30B":28.8}
- Track Gauge Mm
- 600/762/900
- Loading Height M
- 1.45,1.52,1.53,1.7,1.73
- Loading Capacity T
- {"ST(D)-14B":28,"ST(D)-16B":32,"ST(D)-20B":40,"ST(D)-25B":50,"ST(D)-30B":60}
- Applicable Rail Kg M
- >=33,>=33,>=38,>=38,>=43
- Disassemble Time Min
- 2,4,4,4.5,4.5
- Min Turning Radius M
- 18,20,25,25,30
- Overall Dimensions M
- {"width":[1.77,1.77,1.78,2.05,1.8],"height":[2.56,2.68,2.68,2.7,2.7],"length":[11.25,12.84,12.9,14.3,17.8]}
- Extras.Contact Emails
- sales@w***n.com,contact@z***a.asia,contact@w***n.com
- Max Running Speed Km H
- 15
- Applicable Roadway Size M
- 3.4*3.5,3.5*4,4*4,4*4.5,5*5.5
- Center Distance Of Truck Frame Mm
- 5450,6250,6350,7080,7250
