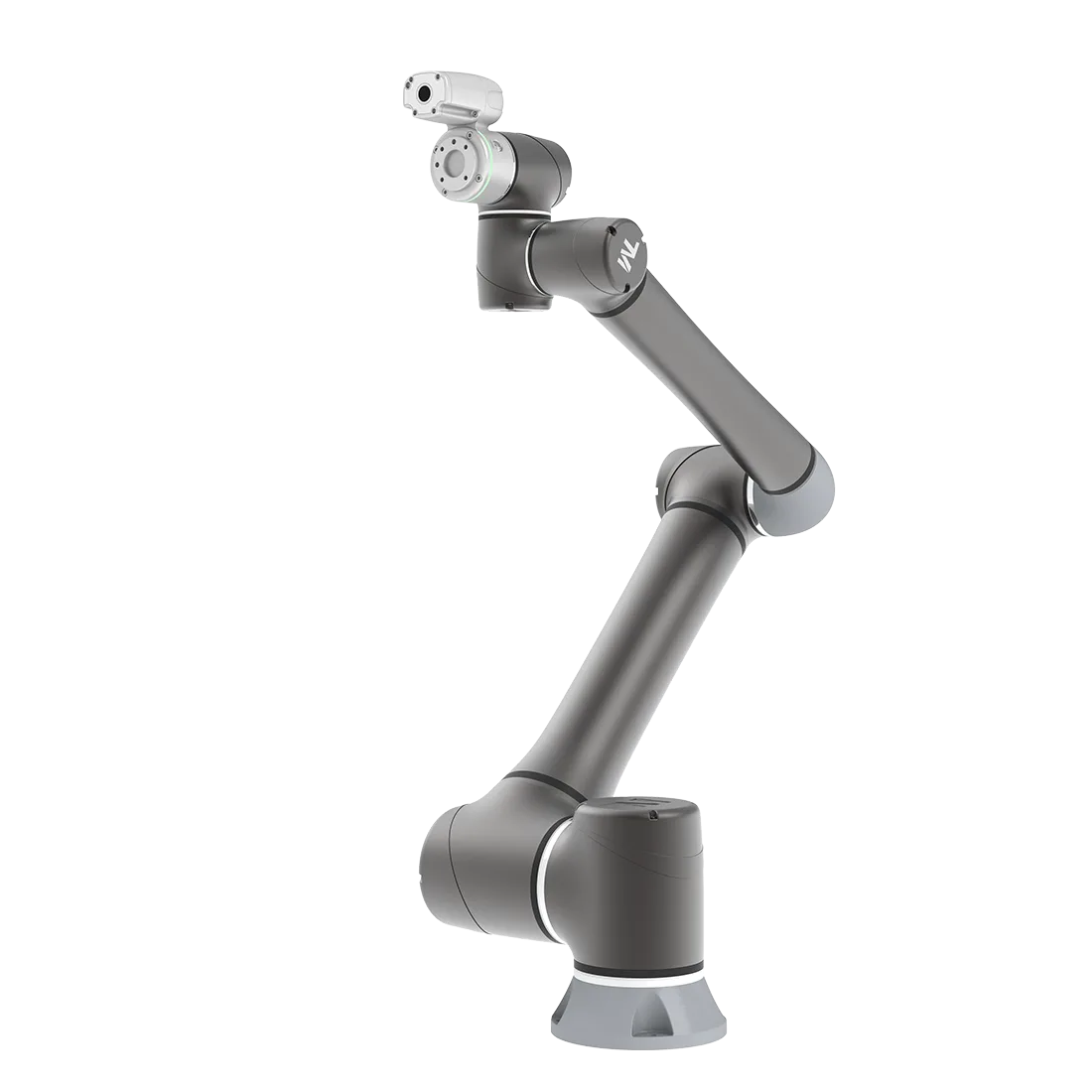

TR20-1920B
Built by Jiangsu Thinkmotion Intelligent Machine Technology
Not enough evidence to rank. Listed among 1,062 Industrial Arm robots; 241 carry a rank.
See the rankingRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Adequate evidence
No named customers yet. The score uses the rest of its record.
4 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 4 checks with data. Checks without data are left out.
Overview
Introducing a powerful 6-axis welding robot designed for efficient manufacturing processes. With a generous working range of 1920mm and a load capacity of 20kg, this welding robot is perfect for a wide range of welding applications. Whether you are working on large-scale industrial projects or intricate welding tasks, this robot offers precision and reliability. Increase productivity and accuracy in your manufacturing operations with this advanced welding robot. Say goodbye to manual welding processes and embrace automation for faster and more consistent results. Invest in this welding robot today and take your welding capabilities to the next level.
Flagship features
- Integrated vision system with AI capabilities for automated optical inspection (AOI), quality assurance, dynamic pick-and-place, and real-time decision-making
- TMflow software provides a graphical, click-and-drag programming interface designed for first-time users; no coding experience required; claimed programming time as short as five minutes
- Safety features include collision detection with emergency stop, compliance with ISO 10218-1:2011 and ISO/TS 15066:2016, and configurable speed limits for collaborative workspaces
- Applications: AMMR cloning, material handling, assembly, inspection, machine tending, finishing, dispensing
- Product built for 'intelligent manufacturing', highlighting data tracking and analysis to prevent defects and improve quality
- TM AI Cobot S Series also available for comparison
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Medium payload
- 1920 mm
- IP54/IP67(5&6 Axes Optional)
- Floor-standing
- TRC5-B06
- Proprietary app
- ISO 10218-1:2011, ISO/TS 15066:2016
- Automotive, electronics, metal products
- 20 kg
- ±0.05 mm
- 32 kg
Carries more than 51% of 855 Industrial Arm robots with this spec
More precise than 36% of 648 Industrial Arm robots with this spec
Heavier than 27% of 360 Industrial Arm robots with this spec
Detailed specifications
What it is built for5
- Industries
- aerospace,electronics,general manufacturing
- Applications
- aerospace industry,automotive industry,construction industry,metal fabrication industry,shipbuilding industry
- collaborative arm
- welding,handling,grinding,punching,press,hardware polishing,carry,material handling,machine tending,pallet handling,stacking
- Primary Applications
- material handling,machine tending,assembly,palletizing,dispensing,deburring polishing
Movement & precision3
- 6
- 6
- Max Speed M S
- 1
Safety & certification2
- Temperature Range Max C
- 50
- Temperature Range Min C
- -20
Buying & support4
- Origin
- China
- Trademark
- Jiangsu Xinkong Electronic Technology Co., Ltd
- 10-20K
- Price On Request
- Yes
Other details13
- Type
- Arc Welding Robot
- HS Code
- 8479501000
- Drive Mode
- Electric
- Body Weight
- 220kg
- Rated Power
- 4.7kw
- Control Mode
- Point to Point Control
- Package Size
- 1460.00cm * 1360.00cm * 1640.00cm
- Specification
- 140*150*165CM
- Welding Speed
- 1 m/min
- Transport Package
- Wooden Board
- Dual Check Safety
- Yes
- Production Capacity
- 100pieces/Years
- Package Gross Weight
- 400.000kg
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
4 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2021LaunchThinkOS industrial intelligent machine operating system developed
- Jun 2021MilestoneCompany founded
- Not yet on fileLaunchIntelligent composite robotic arm and workstation solutions
- Not yet on fileMilestoneTC6-R3 evidence not found in provided sources
- Not yet on fileLaunchTM20 collaborative robot introduced by OMRON
- Not yet on fileLaunchTM20 product page by Techman Robot
Compare with
More by Jiangsu Thinkmotion Intelligent Machine Technology
Frequently asked questions
- Who makes the TR20-1920B?
- The TR20-1920B is developed by Jiangsu Thinkmotion Intelligent Machine Technology.
- What type of robot is the TR20-1920B?
- The TR20-1920B is a Industrial Arm made by Jiangsu Thinkmotion Intelligent Machine Technology.
- How much does the TR20-1920B cost?
- The TR20-1920B is listed at US$7,299 in the Robolist catalogue, but this figure did not come from Jiangsu Thinkmotion Intelligent Machine Technology. Contact them for a quote.
- What are the key specifications of the TR20-1920B?
- Key specifications of the TR20-1920B: arm class medium payload, payload 20 kg, reach 1920 mm, repeatability ±0.05 mm, weight 32 kg.
