Overview

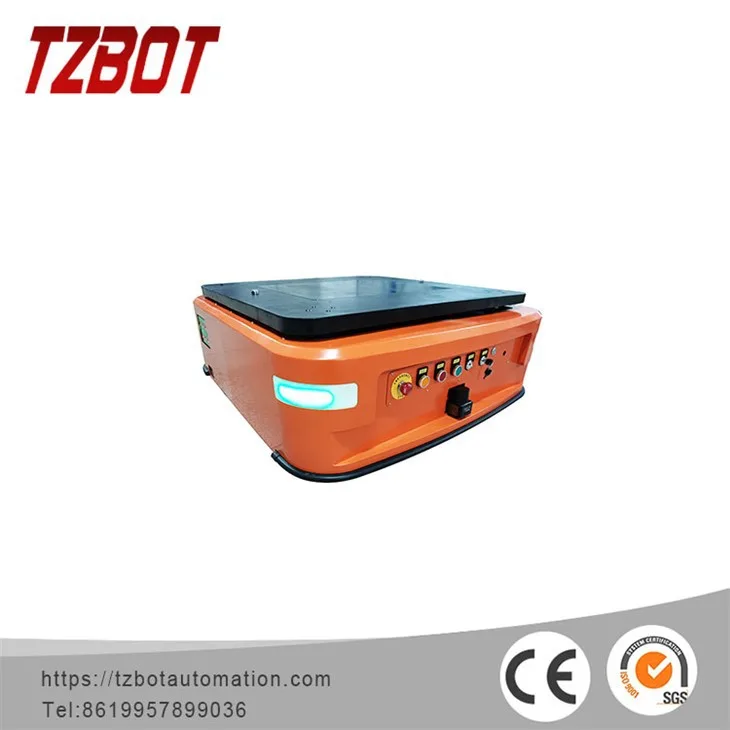

This AGV is equipped with a jacking device, which can be lifted up and transported after diving into the bottom of the rack or material truck. It can carry 1 ton of goods or materials. This style is widely used in the field of warehousing, logistics and handling.
Flagship features
- Zero turning radius allows operation in tight spaces
- Jack-up mechanism lifts 1000 kg by 50 mm at 8 mm/s using four screw-type jacks
- Equipped with a high-performance servo system for precision movement
- Battery: 48V 50Ah Li-ion with 1C maximum charging rate
- Wireless communication enables real-time tracking and monitoring
- Compact body dimensions: 1100x900x380 mm (±5mm)
Specifications
Category: AGV- Payload
- 1000 kg
- Speed
- 0.6 m/s
- Navigation
- lidar_slam, qr_code, magnetic_tape
- Guidance
- Electromagnetic, tape, color band, laser, inertial, visual, GPS, coordinate guidance
- Turn radius
- 0 mm
- Fleet software
- Ground control system for multiple AGV management
Detailed specifications
Motion & kinematics2
- Repeatability Mm
- 5
- Positioning Accuracy
- ±5mm
Power & battery1
- Battery
- Lithium Battery
Sensors1
- Maximum Charging Speed
- 1C
Safety & certifications1
- Safety Certification
- CE
Other19
- Dimensions
- L1100*W900*H380
- Price Tier
- 7600-11000
- Applications
- Material Handling
- Sub Category
- Bidirectional Jack-up Agv
- Jacking Speed
- 8mm/s
- Max Speed M S
- 0.6
- Control System
- Agv Controller
- Vehicle Weight
- Less Than 250kg
- Warranty Years
- 1
- Charging Method
- Manual Charging/Auto Charging
- Security System
- Lidar Sensor; Bumper Sensor
- Company Country
- CN
- Lifting Distance
- 50mm
- Jacking Structure
- 4 screw H type
- Walking Direction
- Forward, Steer, Back
- Rated Driving Force
- 500N
- Friction Coefficient
- >=0.6
- Additional Information
- - Zero turning radius allows operation in tight spaces - Jack-up mechanism lifts 1000 kg by 50 mm at 8 mm/s using four screw-type jacks - Equipped with a high-performance servo system for precision movement - Battery: 48V 50Ah Li-ion with 1C maximum charging rate - Wireless communication enables real-time tracking and monitoring - Compact body dimensions: 1100x900x380 mm (±5mm) - Company (TZBOT) established 2015, factory area 1000 m², 50 employees - Certifications: ISO 9001:2015
- Suspension System Force
- 780N
