Overview

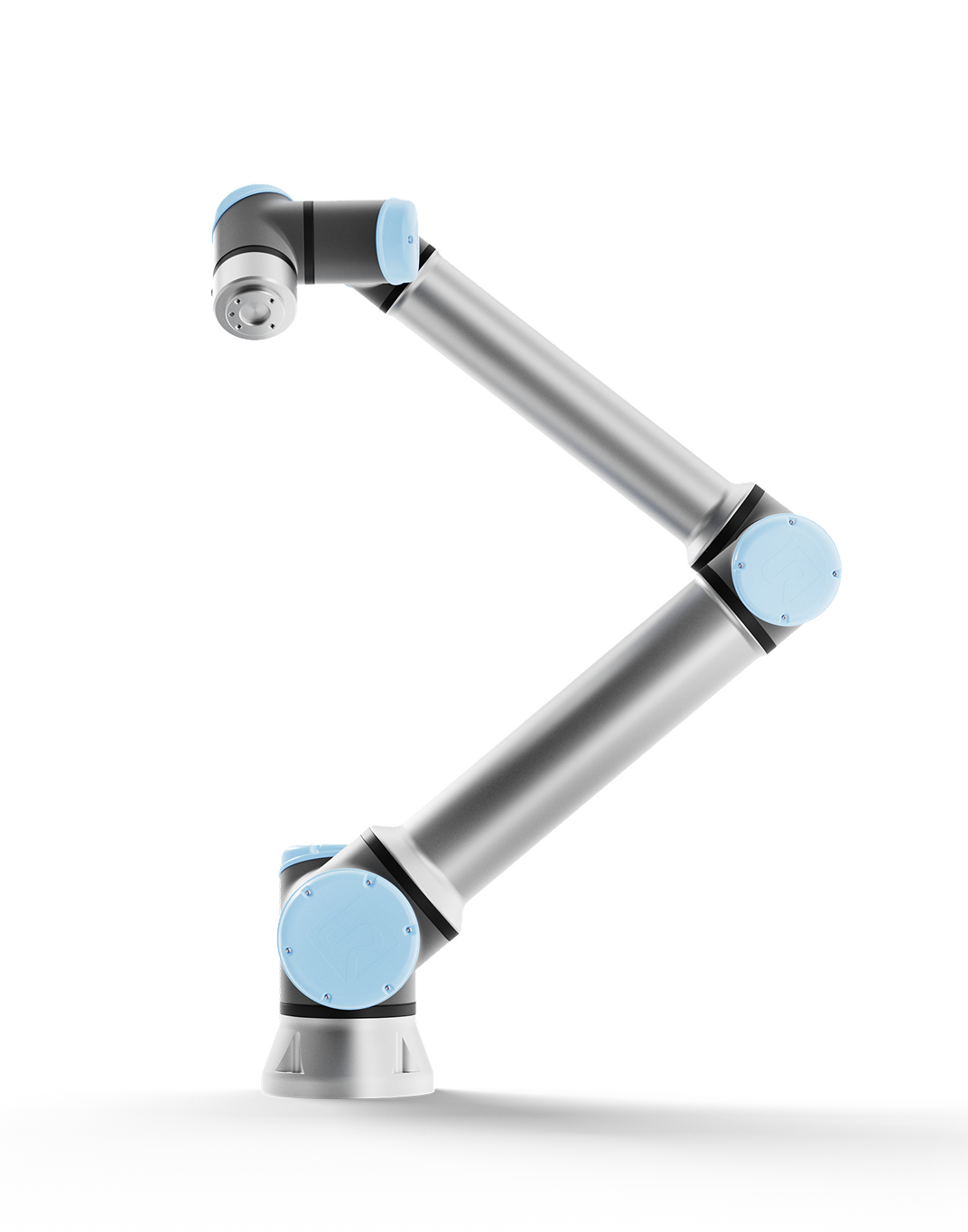

The UR12e is designed for mid-range applications, combining power and versatility for a range of manufacturing tasks.
Flagship features
- Features 21 configurable safety functions
- Supports RS-485 for tool communication
- Noise levels: Robot Arm < 60 dB(A), Control Box < 50 dB(A)
- Tool I/O ports: 2 digital in, 2 digital out, 2 analog in
- Control Box I/O ports: 16 digital in, 16 digital out, 2 analog in, 2 analog out
Specifications
Category: Cobot- Type
- six axis collaborative
- Axes
- 6
- Payload
- 16 kg
- Reach
- 1300 mm
- Repeatability
- ±0.05 mm
- Weight
- 33.5 kg
- TCP speed
- 1 m/s
- IP rating
- IP54
- Safety cert.
- CE, ISO/TS 15066
- Force limiting
- Yes
- F/T sensing
- wrist external
- No-code
- Yes
- Teach pendant
- tablet-style
- API / SDK
- Yes
Detailed specifications
Other7
- Footprint Mm
- 190
- Sub Category
- floor-mounted
- Datasheet Url
- Preview PDF online
- Warranty Years
- 1
- Company Country
- DK
- Software Platform
- PolyScope
- Additional Information
- - Features 21 configurable safety functions. - Supports RS-485 for tool communication. - Noise levels: Robot Arm < 60 dB(A), Control Box < 50 dB(A). - Tool I/O ports: 2 digital in, 2 digital out, 2 analog in. - Control Box I/O ports: 16 digital in, 16 digital out, 2 analog in, 2 analog out.
