Industrial ArmManufacturing

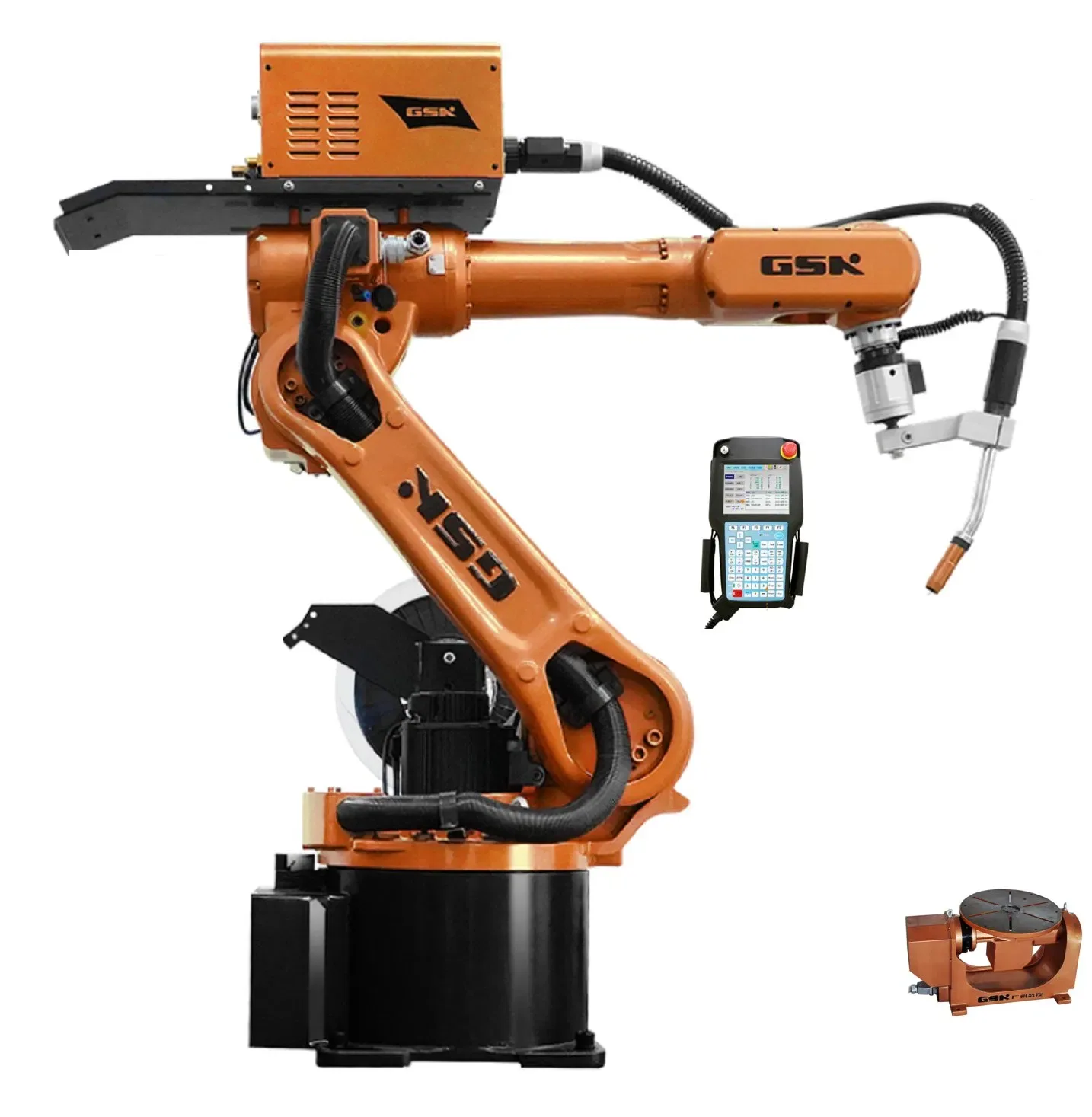

Welding Robot RH06A3-1700
Built by GSK CNC Equipment · China
Updated May 2026·methodology
Overview
RH series welding robot widely used in automobiles and their accessories, motorcycles and their accessories, and agricultural machines, engineering machines and other hardware welding fields.
Flagship features
- **Laser Tracking**: Supports laser tracking for real-time weld path correction, beneficial for continuous production runs
- **Application Flexibility**: Can handle TIG, MIG, and laser welding without controller swap-out, though heavy plate work requires a larger payload robot
- **Compact Footprint**: 1490 mm reach in a tight package allows installation in space-constrained cells
- **Joint Range**: J6 axis has full ±360° rotation, simplifying tool orientation
- **IP54 Rating**: Suitable for general fabrication but requires shrouding in washdown or coolant-spray environments
- **Bulk Discounts**: Negotiable bulk discounts for orders of 10 or more units
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Axes
- 6
- Payload
- 6 kg
- Reach
- 1700 mm
- Repeatability
- ±0.05 mm
- Weight
- 185 kg
- IP rating
- IP54
- Mounting
- floor, wall, ceiling
- Controller
- GSK CNC Controller
- Programming
- teach pendant
- Tool flange
- ISO 9409-1
- Safety cert.
- ISO, CE
- Force limiting
- No
- Maturity
- commercial
- Industries
- automotive, electronics manufacturing, food-and-beverage
Detailed specifications
Motion & kinematics1
- Dof
- 6
Other16
- Origin
- Guangzhou, China
- Hs Code
- 8479501000
- Warranty
- 1 year
- Structure
- Articulated
- Trademark
- GSK
- Price Tier
- 10-20K
- Sub Category
- welding
- Motion Radius
- 1700
- Mounting Type
- Ground, Bracket, Ceiling
- Operating Temp
- 0~40°C
- Warranty Years
- 1
- Company Country
- CN
- Procedure Types
- MAG,CO2
- Transport Package
- Wooden
- Production Capacity
- 50000 Sets/Years
- Additional Information
- - **Laser Tracking**: Supports laser tracking for real-time weld path correction, beneficial for continuous production runs. - **Application Flexibility**: Can handle TIG, MIG, and laser welding without controller swap-out, though heavy plate work requires a larger payload robot. - **Compact Footprint**: 1490 mm reach in a tight package allows installation in space-constrained cells. - **Joint Range**: J6 axis has full ±360° rotation, simplifying tool orientation. - **IP54 Rating**: Suitable for general fabrication but requires shrouding in washdown or coolant-spray environments. - **Bulk Discounts**: Negotiable bulk discounts for orders of 10 or more units. - **Lead Time**: 4–6 weeks typical; 8 units in stock at time of listing. - **Voltage Note**: Buyer to confirm facility voltage for 0–45°C operating range. - **Marketplace Context**: Listed on a B2B marketplace (manufactry.com) under 'Tools' category; actual product is a 6-axis industrial welding robot arm.
