XQL-JH3000
Built by Qiaolian Laser Technology (Xuzhou) · China
The XQL-JH3000 is a Industrial Arm developed by Qiaolian Laser Technology (Xuzhou) (China), priced at $48,888 USD. Key specifications: arm class welding, axes 6, payload 20 kg, reach 1831 mm.
Robo Index
Strong evidence
3 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 3 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how XQL-JH3000 measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview

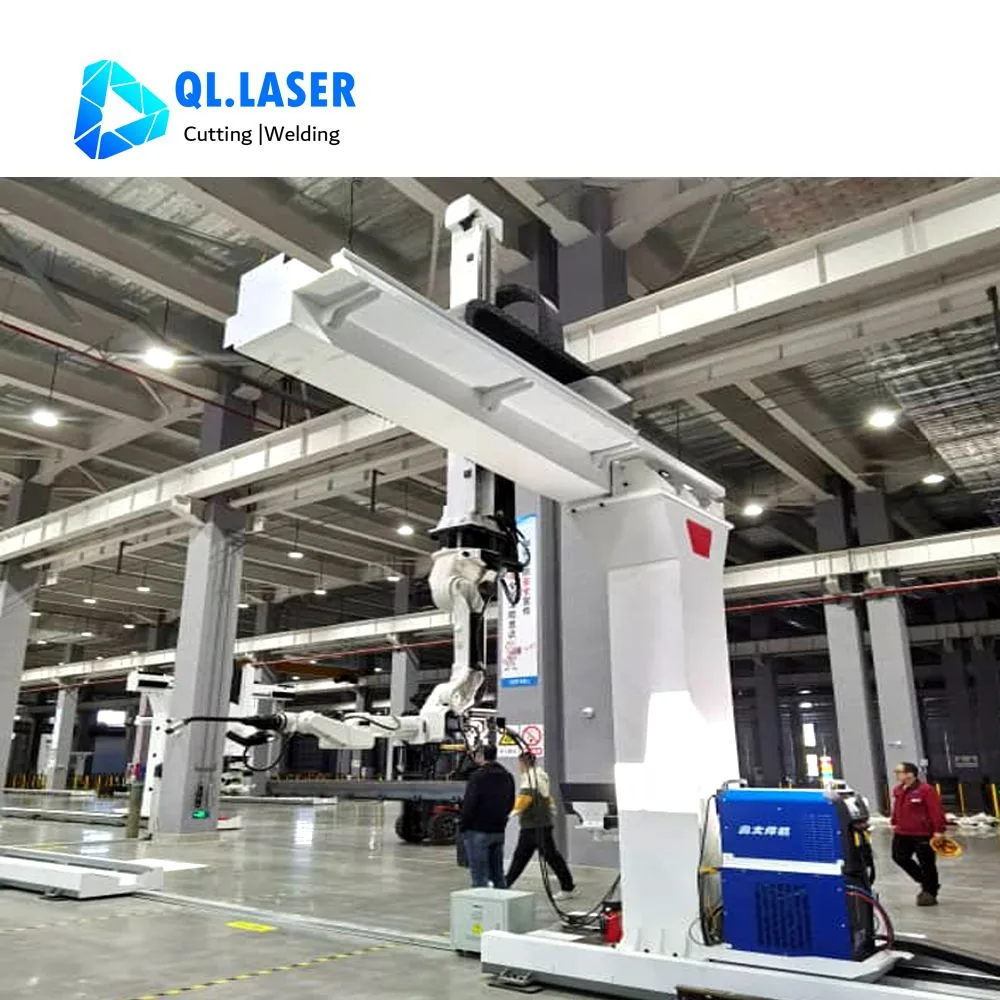

Perfect 9-axis Collaborative Welding Robots with Multi Layer and Multi Pass Function. 1.Welding of open components such as H-beams, roof beams, box columns, and other corner welded components. 2.Add a seventh axis, robot and track follow-up control, larger working area. 3.Work areas can be set up on both sides of the track, and work areas can be arranged in sections for small piece welding. 4.Welding and handling work can be carried out simultaneously, effectively improving production efficiency 5.The software can be operated in a foolproof manner after 1-2 days of training, and there is no need for manual intervention throughout the entire process after loading, greatly reducing the skill requirements for operators. 6.Positioner can be optional.
Flagship features
- Capable of welding aluminum, stainless steel, and carbon steel with a penetration range depending on materials
- Features 360° rotating welding head for versatile applications
- Equipped with advanced cooling system for stable operation
- Simplified operation with low programming barrier, utilizing a teaching device
Buyer decision signals
Viability
Founded
Price
Specifications
Category: Industrial Arm- Arm class
- welding
- Axes
- 6
- Payload
- 20 kg
- Reach
- 1831 mm
- Repeatability
- ±0.05 mm
- IP rating
- IP65
- Programming
- teach pendant
- Force limiting
- No
- Maturity
- commercial
- Industries
- manufacturing
Company profile
- Founded
- 2008
Detailed specifications
Motion & kinematics1
- Dof
- 9
Power & battery2
- Peak Total Power
- 45
- Rated Input Voltage/Frequency
- 380+/-10% V, Three-phase
Sensors1
- Maximum End Load
- 6
Compute1
- Package Gross Weight
- 9000
Other14
- HS Code
- 8515312000
- Trademark
- QLLASER
- Floor Space
- 3000*15000 mm
- Package Size
- 1200.00cm * 220.00cm * 250.00cm
- Applications
- arc_welding,palletizing,pick_and_place,sorting,packing,kitting,cnc_loading,injection_molding,press_tending,laser_welding,plasma_cutting,screw_driving,gluing_dispensing,pcb_assembly,cable_assembly,snap_fitting,visual_inspection,dimensional_measurement,surface_inspection,polishing,grinding,sanding,painting,coating
- Sub Category
- Arc Welding Robot
- Welding Speed
- 0.5 m/min
- Operating Temp
- -10~45
- Company Country
- CN
- Training Required
- basic_<1day
- W3100*L14000*H1500
- mm
- Production Capacity
- 100per Month
- Rated Input Frequency
- 50
- Additional Information
- - Capable of welding aluminum, stainless steel, and carbon steel with a penetration range depending on materials. - Features 360° rotating welding head for versatile applications. - Equipped with advanced cooling system for stable operation. - Simplified operation with low programming barrier, utilizing a teaching device.
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Qiaolian Laser Technology (Xuzhou) Co., Ltd. or an authorized seller.
Request a quote — goes straight to Qiaolian Laser Technology (Xuzhou) Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- 2008MilestoneFounded
Frequently asked questions
- Who makes the XQL-JH3000?
- The XQL-JH3000 is developed by Qiaolian Laser Technology (Xuzhou), based in China.
- What type of robot is the XQL-JH3000?
- The XQL-JH3000 is a Industrial Arm made by Qiaolian Laser Technology (Xuzhou).
- How much does the XQL-JH3000 cost?
- The XQL-JH3000 is priced $48,888 USD.
- What are the key specifications of the XQL-JH3000?
- Key specifications of the XQL-JH3000: arm class welding, axes 6, payload 20 kg, reach 1831 mm, repeatability ±0.05 mm.
