YNT CS20-1680 Cobot Palletizer
Built by SHANDONG UNITY ROBOTICS · China
The YNT CS20-1680 Cobot Palletizer is a Cobot developed by SHANDONG UNITY ROBOTICS (China), launched 2025. Key specifications: axes 6, repeatability ±0.04 mm, safety cert. CE, ISO 10218-1, teach pendant wired button.
RoboScore
Adequate evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
4 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Ranked in the Cobot standing, against 368 robots.
See the standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how YNT CS20-1680 Cobot Palletizer measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview

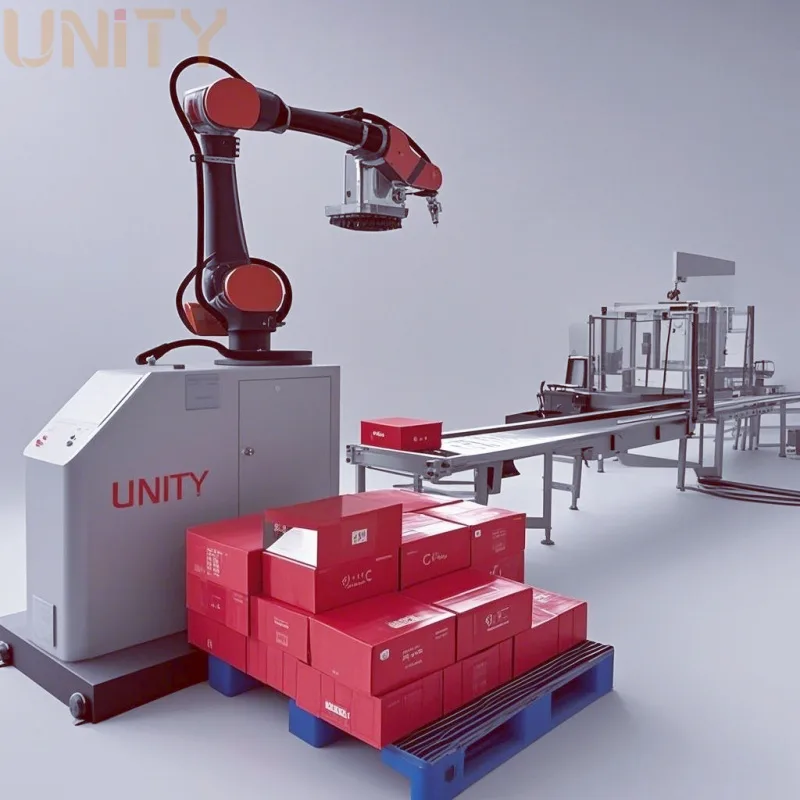

The YNT CS20-1680 is a collaborative palletizing robot arm designed for automatic stacking of boxes, cartons, and bags. It features a 6-axis electric drive, a compact integrated design, and EtherCAT connectivity. Targeted at food & beverage, pharmaceutical, daily chemical, and electronics industries, it offers a payload of 20 kg and a reach of 1680 mm with a repeatability of ±0.04 mm. The system is designed for quick installation (within 2 hours) and includes a column-mounted configuration for extra lifting height (up to 2.45m). The robot is sold as part of a palletizing solution that includes a frame and gripper.
At a glance
- Built for palletizing and material handling
- Used across food and beverage, pharmaceutical and electronics
- Programmed through teach pendant
- Rated for operation at 0°C~55°C
- Backed by a 1-year warranty
- Sold in China
Buyer decision signals
Viability
Sino-British joint venture
Price
purchase
Availability
Specifications
Category: Cobot- Axes
- 6
- Repeatability
- ±0.04 mm
- Safety cert.
- CE, ISO 10218-1
- Teach pendant
- wired button
Company profile
- Founded
- 2025
Detailed specifications
What it is built for7
- Arm Class
- small payload
- Duty Cycle
- continuous 24 7
- Industries
- food beverage,pharmaceutical,electronics
- Applications
- palletizing,pick and place
- Sub Category
- palletizing
- Industries Served
- food and beverage,pharmaceutical,electronics,logistics
- Primary Applications
- palletizing,material handling
Size & capacity3
- Package Size Cm
- 270x140x180
- Production Capacity
- 50 sets/month
- Package Gross Weight Kg
- 680
Power & runtime1
- Voltage V
- 220
Controls & integration5
- Controller Model
- Integrated
- Mounting Options
- floor
- Fieldbus Protocols
- ethercat
- Compatible Grippers
- Frame gripper for cartons/bags
- Programming Interface
- teach pendant
Safety & certification3
- Operating Temp
- 0°C~55°C
- Temperature Range Max C
- 55
- Temperature Range Min C
- 0
Buying & support10
- Trademark
- QUANDAO
- Price Tier
- 4,000-8,000
- Pricing Model
- purchase
- Model Variants
- YNT-CS20-1880,YNT-CS40-1780,YNT-CS40-1980
- Price Currency
- USD
- Warranty Years
- 1
- Price On Request
- true
- Availability Status
- available
- Countries Available
- China
- Service Network Density
- regional
Other details6
- Footprint Mm
- 1505x1716
- Humidity Range
- 0°C~55°C
- Installation Time
- Within 2 hours
- Max Pallet Size Mm
- 1200x1200
- Palletizing Height Mm
- 2450
- Palletizing Speed Cases Per Min
- 8-10
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with SHANDONG UNITY ROBOTICS CO., LTD. or an authorized seller.
Request a quote — goes straight to SHANDONG UNITY ROBOTICS CO., LTD..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- —MilestoneSino-British joint venture
- —MilestoneCompany website and manufacturer profile
- —MilestonePart of Shandong Quandao Agricultural Technology Group
Compare with peers
Frequently asked questions
- Who makes the YNT CS20-1680 Cobot Palletizer?
- The YNT CS20-1680 Cobot Palletizer is developed by SHANDONG UNITY ROBOTICS, based in China.
- What type of robot is the YNT CS20-1680 Cobot Palletizer?
- The YNT CS20-1680 Cobot Palletizer is a Cobot made by SHANDONG UNITY ROBOTICS.
- How much does the YNT CS20-1680 Cobot Palletizer cost?
- Pricing for the YNT CS20-1680 Cobot Palletizer is not publicly listed — contact SHANDONG UNITY ROBOTICS for a quote.
- When was the YNT CS20-1680 Cobot Palletizer launched?
- The YNT CS20-1680 Cobot Palletizer was launched in 2025.
- What are the key specifications of the YNT CS20-1680 Cobot Palletizer?
- Key specifications of the YNT CS20-1680 Cobot Palletizer: axes 6, repeatability ±0.04 mm, safety cert. CE, ISO 10218-1, teach pendant wired button.
