Overview

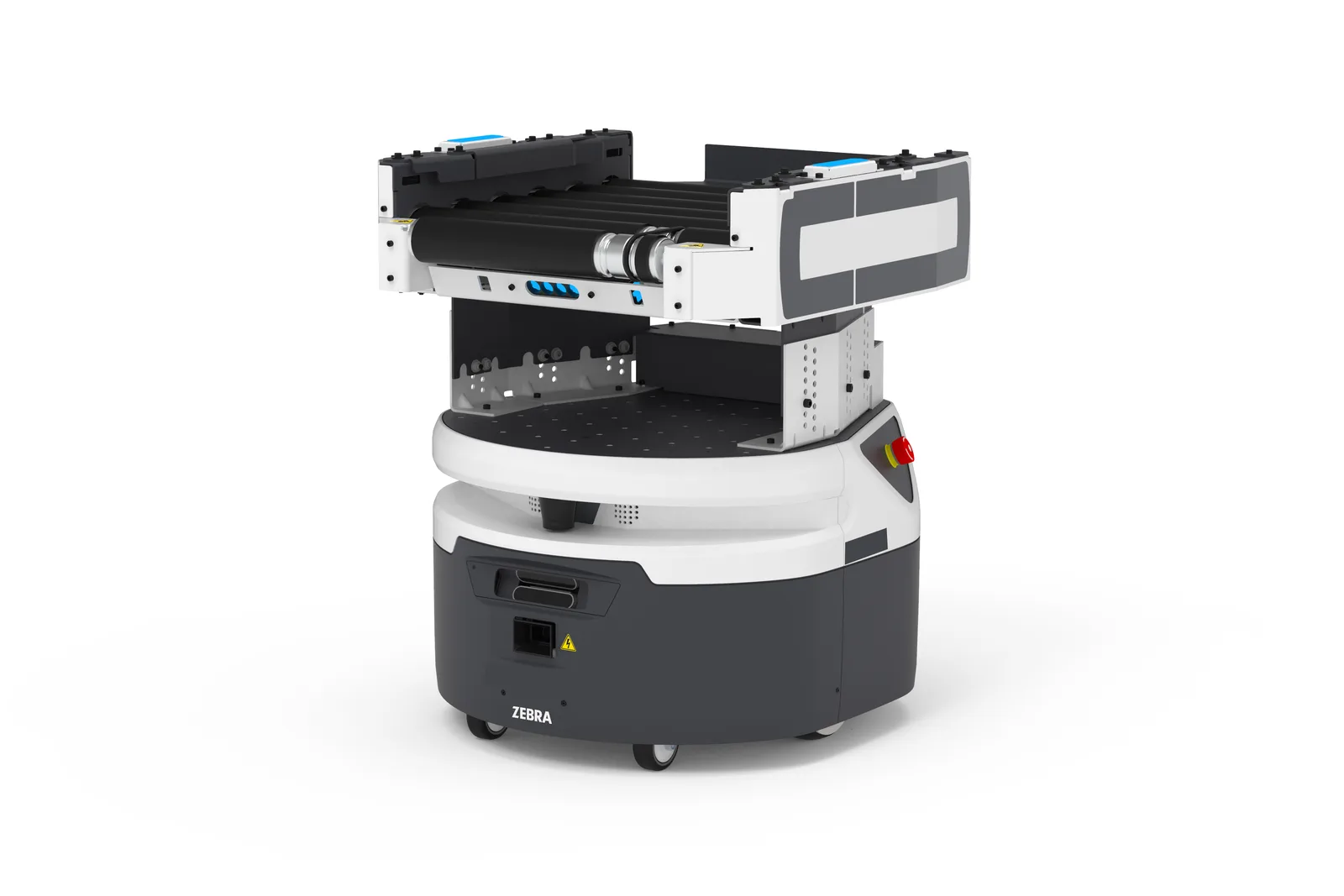

Zebra Roller™ AMRs and Guides integrate with your conveyor infrastructure to automate tote and bin transfers—accelerating throughput, reducing manual handling and improving the flow of goods across high-density storage and fulfillment zones.
Key facts
- Payload
- 80 kg
- Type
- tote shuttle
- Battery type
- lifepo4
- Ped. detection
- human aware
- ISO 3691-4
- Yes
Detailed specifications
Power & battery2
- Battery Chemistry
- lifepo4
- Charge Time Hours
- 1
Sensors4
- Lidar Count
- 1
- Camera Count
- 8
- Sensor Suite
- 2D laser scanner (360° coverage, up to 40m range), LiDAR-based SLAM (UltraSLAM™), vision
- Safety Lidar Coverage Deg
- 360
Safety & certifications4
- Safety Category
- Cat.3 PLd
- R15 08 Certified
- true
- Iso 3691 4 Certified
- true
- Safety Certification
- ANSI/RIA R15.08, ISO 3691-4
Other36
- Width Mm
- 700
- Height Mm
- 670
- Length Mm
- 1000
- Industries
- 3pl, ecommerce_fulfillment, retail_dc, pharmaceutical, automotive_logistics, manufacturing
- Amr Subtype
- tote_shuttle
- Applications
- goods_to_person, pallet_transport
- Auto Docking
- true
- Max Speed Ms
- 1.75
- Sub Category
- tote_shuttle
- Auto Charging
- true
- Datasheet Url
- https://www.zebra.com/content/dam/zebra_dam/en/policies/corporate/consolidated-modern-slavery-statement-policy-corporate-en-us.pdf
- Max Speed M S
- 1.75
- Payload Class
- heavy
- Fleet Software
- Zebra Symmetry™
- Model Variants
- Zebra Roller, Zebra Roller Guide, CartConnect 100, CartConnect 500
- Company Country
- US
- Navigation Type
- lidar_slam, vision
- Processing Tops
- powered roller conveyor
- Audible Alert Db
- 100
- Deployment Notes
- Deployed in 3PL warehouses, e-commerce fulfillment centers, manufacturing plants, retail distribution, and pharmaceutical distribution.
- Walking Speed Ms
- 1.75
- Compatible Vision
- UltraSLAM™
- Industries Served
- e-commerce, manufacturing, pharmaceuticals
- Software Platform
- Zebra Symmetry™
- Visual Indicators
- status_led, direction_lights, warning_strobe, display_screen
- Min Aisle Width Mm
- 2600
- Obstacle Detection
- true
- Availability Status
- available
- Floor Compatibility
- smooth_concrete, painted_concrete, epoxy, sealed_concrete
- Opportunity Charging
- true
- Pedestrian Detection
- human_aware
- Primary Applications
- each_picking, case_picking, putaway, replenishment, cross_docking, sortation, manufacturing_logistics, kitting
- Programming Interface
- Zebra Symmetry™ software
- Additional Information
- - Advanced navigation using lidar and vision technology - Optimized for warehouse environments with robust fleet management capabilities - Agility and efficiency for materials handling - Potential for integration into existing workflows and systems
- Obstacle Detection Range M
- 40
- Multi Robot Traffic Management
- dynamic_optimization
