ZXR12-2010
Built by Wuxi Zhouxiang Complete Set of Welding Equipment · China
The ZXR12-2010 is a Industrial Arm developed by Wuxi Zhouxiang Complete Set of Welding Equipment (China), listed at $30,000 USD (unverified). Key specifications: arm class small payload, payload 12 kg, reach 2010 mm, repeatability ±0.05 mm.
Robo Index
Adequate evidence
4 of 10 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how ZXR12-2010 measures up, requirement by requirement. The Robo Index (trust) above is shown for every buyer, regardless.
Overview

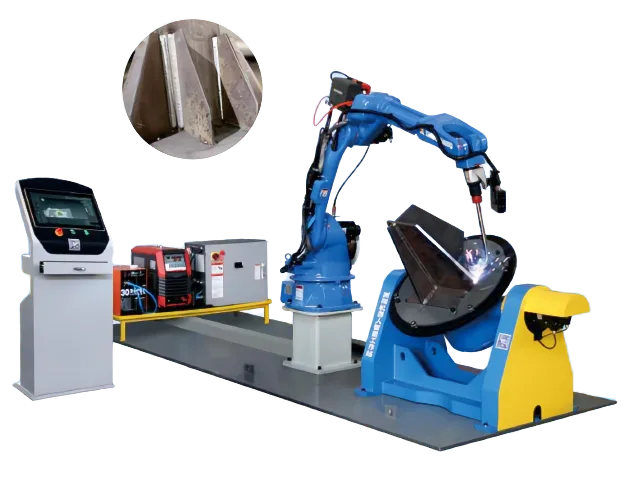

Unique appearance, hollow structure arms and wrists, built-in welding cables, compact structure, can be used for welding operations in narrow spaces, light weight, dust-proof and drip-proof, high safety, equipped with body cover, can be used in various harsh conditions with confidence It has a large environmental working space, fast running speed, and high repeat positioning accuracy. It is suitable for welding applications that have high requirements on weld quality.
Flagship features
- **Teach-free programming**: Imports 3D models from Tekla, SOLIDWORKS, and UG. No manual pendant coding required
- **Laser seam tracking**: Standard line laser scanner corrects torch path in real time; optional Revopoint 3D Vision 2.0 pre-weld scanning for part variation up to 3-4mm
- **Positioner options**: L-type (single-axis), P-type (multi-axis tilt), Head-and-Tail (360° rotation)
- **Welding power supplies**: Aotai or Megmeet digital inverter for MIG/MAG. TRM water-cooled extended torch
- **Digital twin**: Real-time production monitoring via the Friendsss system
- **Safety package**: Steel enclosure with interlocks, Type 4 light curtains (SIL 3/PLe), emergency stop (Cat 0/1 per IEC 60204-1), fume extraction interface, dual-channel safety monitoring
Buyer decision signals
Viability
Bloomberg incorporation record
Price
Unverified — no source on record
Availability
Specifications
Category: Industrial Arm- Arm class
- small payload
- Payload
- 12 kg
- Reach
- 2010 mm
- Repeatability
- ±0.05 mm
- Weight
- 313 kg
- IP rating
- J1, J2 axis IP56 (J3, J4, J5, J6 axis IP67)
- Mounting
- floor
- Controller
- Friendess Teaching-Free Control System
- Programming
- proprietary app
- Tool flange
- ISO 9409-1
- Safety cert.
- ISO 10218-1:2025, ISO 10218-2:2025, CE Marking
- Industries
- steel_fabrication, automotive, general_industrial
Company profile
- Founded
- 1991
Detailed specifications
Motion & kinematics1
- Dof
- 6
Power & battery2
- Power Capacity
- 4.5KVA
- Power Consumption W
- 4500
Other11
- Ce Marked
- true
- Applications
- welding
- Sub Category
- arc_welding
- Warranty Years
- 1
- Movement Radius
- 2010mm
- Company Country
- CN
- Procedure Types
- MIG, Arc welding
- Compatible Vision
- CP350V line scanning sensor, Mingtu line laser tracking
- Input/Output Signal
- standard 16 in/16 out 24VDC
- Installation Method
- floor-standing/bracket type/upside-down type
- Additional Information
- - **Teach-free programming**: Imports 3D models from Tekla, SOLIDWORKS, and UG. No manual pendant coding required. - **Laser seam tracking**: Standard line laser scanner corrects torch path in real time; optional Revopoint 3D Vision 2.0 pre-weld scanning for part variation up to 3-4mm. - **Positioner options**: L-type (single-axis), P-type (multi-axis tilt), Head-and-Tail (360° rotation). - **Welding power supplies**: Aotai or Megmeet digital inverter for MIG/MAG. TRM water-cooled extended torch. - **Digital twin**: Real-time production monitoring via the Friendsss system. - **Safety package**: Steel enclosure with interlocks, Type 4 light curtains (SIL 3/PLe), emergency stop (Cat 0/1 per IEC 60204-1), fume extraction interface, dual-channel safety monitoring. - **OEM/Wholesale**: Custom branding, paint, labels. Fleet order discounts at 3+ units. Lead time 30-45 days. - **Export**: 40+ countries, containerized ocean freight, crating, remote diagnostics, on-site service via regional partners. - **Customer deployments**: Suzhou steel fabricator (260+ plates/shift from 120), Jiangsu export shop (zero cosmetic defects on German QC), Foshan furniture maker (280 frames/day from 2 cells, 14-month payback), Anhui ag equipment maker (cycle time 4.5 min vs 12 min manual). - **Maintenance**: Daily torch cleaning; weekly gas flow check; monthly TCP calibration; quarterly joint greasing; annual full calibration. Torch liner replacement every 3-4 months recommended. - **Notable limitations**: Not suitable for pressure vessel longitudinal seams, tight pipe-to-pipe saddle joints, very large weldments, or one-off custom fabrication. - **Financing**: Not explicitly mentioned, but pricing is contact-for-quote with multi-unit discounts. - **Awards/Partnerships**: ISO 9001, CE, 200+ patents.
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Wuxi Zhouxiang Complete Set of Welding Equipment Co., Ltd. or an authorized seller.
Request a quote — goes straight to Wuxi Zhouxiang Complete Set of Welding Equipment Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Jul 2001MilestoneBloomberg incorporation record
- 1991MilestoneCompany founded
Compare with peers
More by Wuxi Zhouxiang Complete Set of Welding Equipment
Frequently asked questions
- Who makes the ZXR12-2010?
- The ZXR12-2010 is developed by Wuxi Zhouxiang Complete Set of Welding Equipment, based in China.
- What type of robot is the ZXR12-2010?
- The ZXR12-2010 is a Industrial Arm made by Wuxi Zhouxiang Complete Set of Welding Equipment.
- How much does the ZXR12-2010 cost?
- The ZXR12-2010 is listed at $30,000 USD in the Robolist catalogue, but this figure is unverified and not confirmed by Wuxi Zhouxiang Complete Set of Welding Equipment — contact them for a quote.
- What are the key specifications of the ZXR12-2010?
- Key specifications of the ZXR12-2010: arm class small payload, payload 12 kg, reach 2010 mm, repeatability ±0.05 mm, weight 313 kg.
