Overview

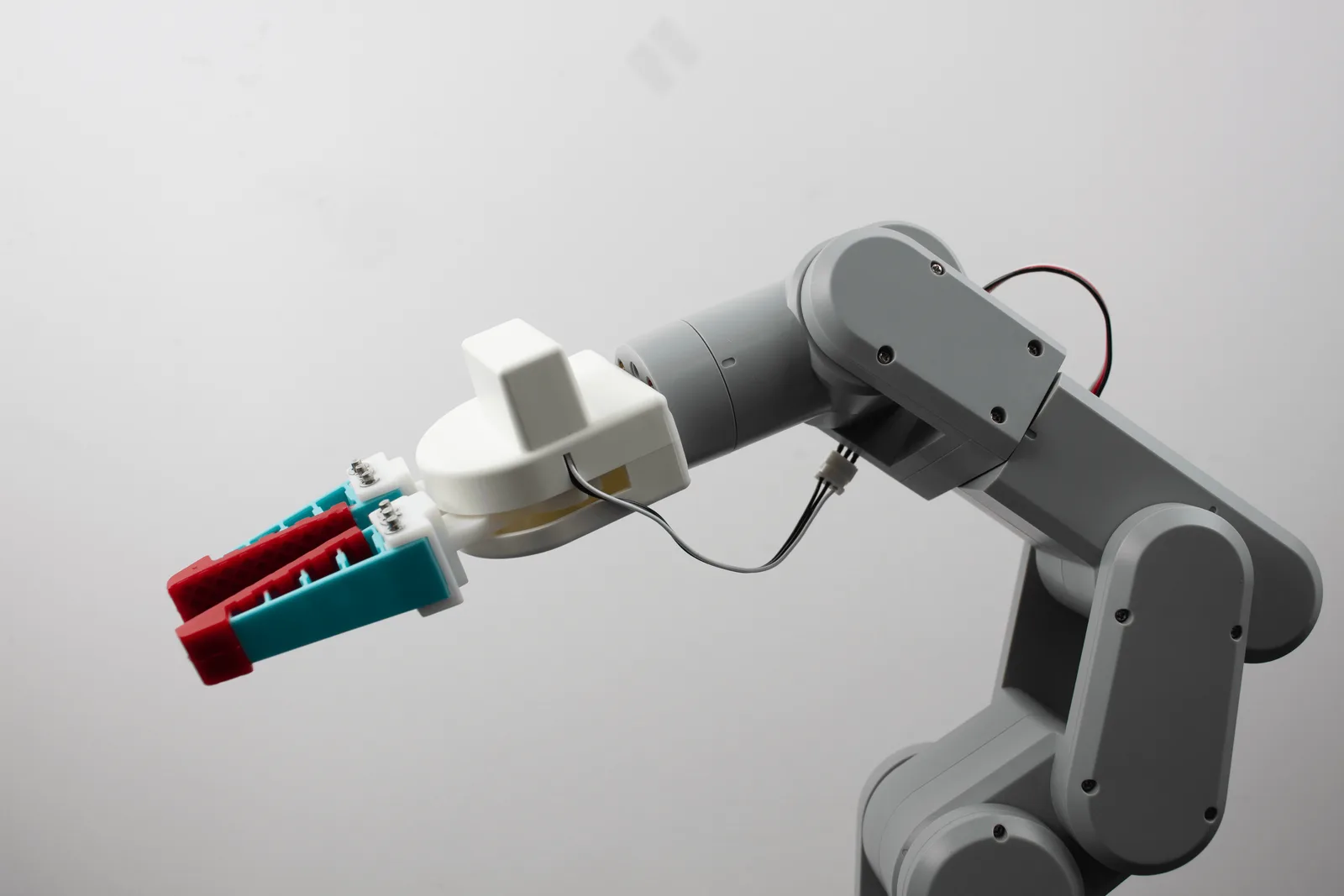

MechArmは、多様な産業応用に適したコンパクトで多機能な6軸ロボットアームです。
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Repeatability Mm
- 0.5
Power & battery1
- Power Input
- DC 8.4 – 14V
Safety & certifications1
- Clamp Grip Distance
- 28mm
Other21
- End Io
- 5 DIO + 3 PIN
- Controller
- raspberry pi
- Clamp Weight
- 90g
- Sub Category
- 6-axis
- Datasheet Url
- Preview PDF online
- On Off Button
- 是
- Clamp Dimensions
- 88*78*48mm
- Clamp Max Load G
- 200
- Suction Cup Height
- 50mm
- Suction Cup Weight
- 410g
- Compatible Grippers
- 吸盘,夹爪,手机支架法兰,圆柱法兰
- Wireless Connection
- 蓝牙
- Suction Cup Diameter
- 118mm
- Suction Cup Dimensions
- 122*107*15mm
- Suction Cup Max Load G
- 200
- Cylindrical Flange Height
- 45mm
- Cylindrical Flange Weight
- 10g
- Cylindrical Flange Diameter
- 40mm
- Phone Bracket Flange Weight
- 10g
- Phone Bracket Flange Dimensions
- 32*50*48mm
- Phone Bracket Flange Max Load G
- 220
