Overview

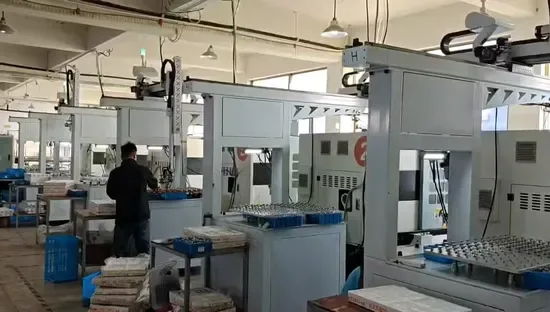

The AUTOLOAD-HY014 is a CNC tending robot designed for efficient machine tending, packaging, painting, picking and placing, and lathe turning. It features a 3-axis gantry system that integrates easily with existing CNC machines.
Flagship features
- SMT PCB unloader for unloading operation on PCB assembly lines
- Features enhanced aluminum structure with plastic chains for stability
- LED TFT touch screen control panel for easy operation
- Standard SMEMA communication for integration with other SMT equipment
- Includes 0.7m conveyor platform
- Uses Panasonic PLC controller
Specifications
Category: Industrial Arm- Arm class
- other
- Reach
- 330 mm
- TCP speed
- ≤ 0.13333333333333333 m/s
- Controller
- 松下PLC控制系统
- Programming
- LED TFT触摸屏控制面板
- Safety cert.
- CE, RoHS, FCC
- Maturity
- commercial
- Industries
- electronics manufacturing
Detailed specifications
Power & battery1
- Power Consumption W
- 300
Other9
- Applications
- pick_and_place
- Cycle Time S
- 6
- Sub Category
- SMT Loading
- Max Speed M S
- 8
- Company Country
- CN
- Fieldbus Protocols
- SMEMA
- Availability Status
- available
- Countries Available
- CN
- Additional Information
- - SMT PCB unloader for unloading operation on PCB assembly lines. - Features enhanced aluminum structure with plastic chains for stability. - LED TFT touch screen control panel for easy operation. - Standard SMEMA communication for integration with other SMT equipment. - Includes 0.7m conveyor platform. - Uses Panasonic PLC controller. - Supports 2 magazines for uninterrupted operation. - Anti-jammed and foolproof structural design. - 1-year warranty provided. - OEM & ODM services available. - 'Contact for quote' suggests enterprise price tier (40-80K or higher). - Application: Used for loading or unloading PCBs.
