Industrial ArmManufacturing
RBR616
Built by Dongguan Hayea Automation · China
Updated May 2026·methodology
Overview

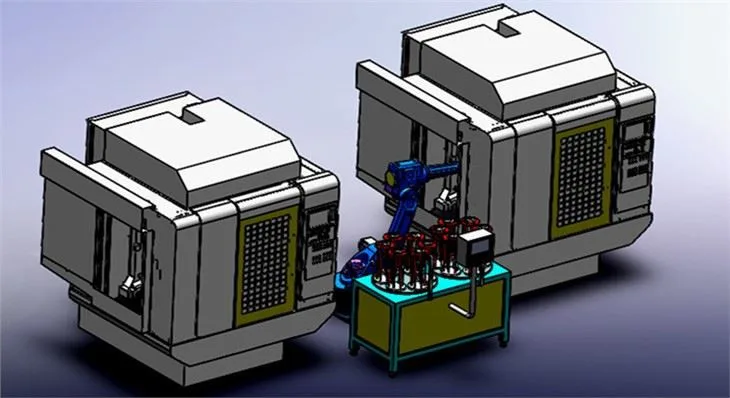

Hayea provides Turnkey project solutions for CNC machines's auto loading&unloading , and CNC tending robots with gantry system, which are easily connected/installed with any CNC machines in small space. Hayea has an overwhelming practical experience and track record, having delivered over 10,000 automation systems.
Detailed specifications
Motion & kinematics2
- Dof
- 6
- Reposition Accuracy
- ±0.02mm
Power & battery2
- Input Voltage
- Single Phase 220V
- Power Consumption W
- 3200
Other23
- Weight
- 800kg
- User Io
- 16/16
- Protocol
- Ethernet , Modbus-RTU/TCP ,Profinet(Options)
- X Stroke
- 2700mm*2 or Customize
- Y Stroke
- 670mm
- Z Stroke
- 1050mm
- Model NO.
- AUTOLOAD-HY015
- Tray Size
- 550mm*400mm*2
- Drive Mode
- Servo Drive
- Founctions
- Auto Picking Placing for Turning Drilling Grinding
- End Of Tools
- Suction Cup/Gripper
- Applications
- pick_and_place,assembly,logistics sorting,CNC loading,laser processing
- Max Speed M S
- 12.56
- Auto Detection
- Visual Inspection/Air Leak/Gauging/Others
- Operating Temp
- 0°C to 45°C
- Company Country
- CN
- Deployment Count
- 500
- Deployment Notes
- Many successful application cases across various industries including machine loading and unloading, welding, grinding, and logistics sorting.
- Transport Package
- Wooden Box
- Degrees Of Freedom
- 3 Axis Gantry System
- After Sales Service
- Online Support
- Availability Status
- available
- Additional Information
- - Capable of operating in demanding environments while reducing the need for manual labor. - Offers customization options for load size and arm length to suit specific applications. - Quickly adapts to various operational needs and environments. - Extensive multilingual support available for service and operations.
