Overview

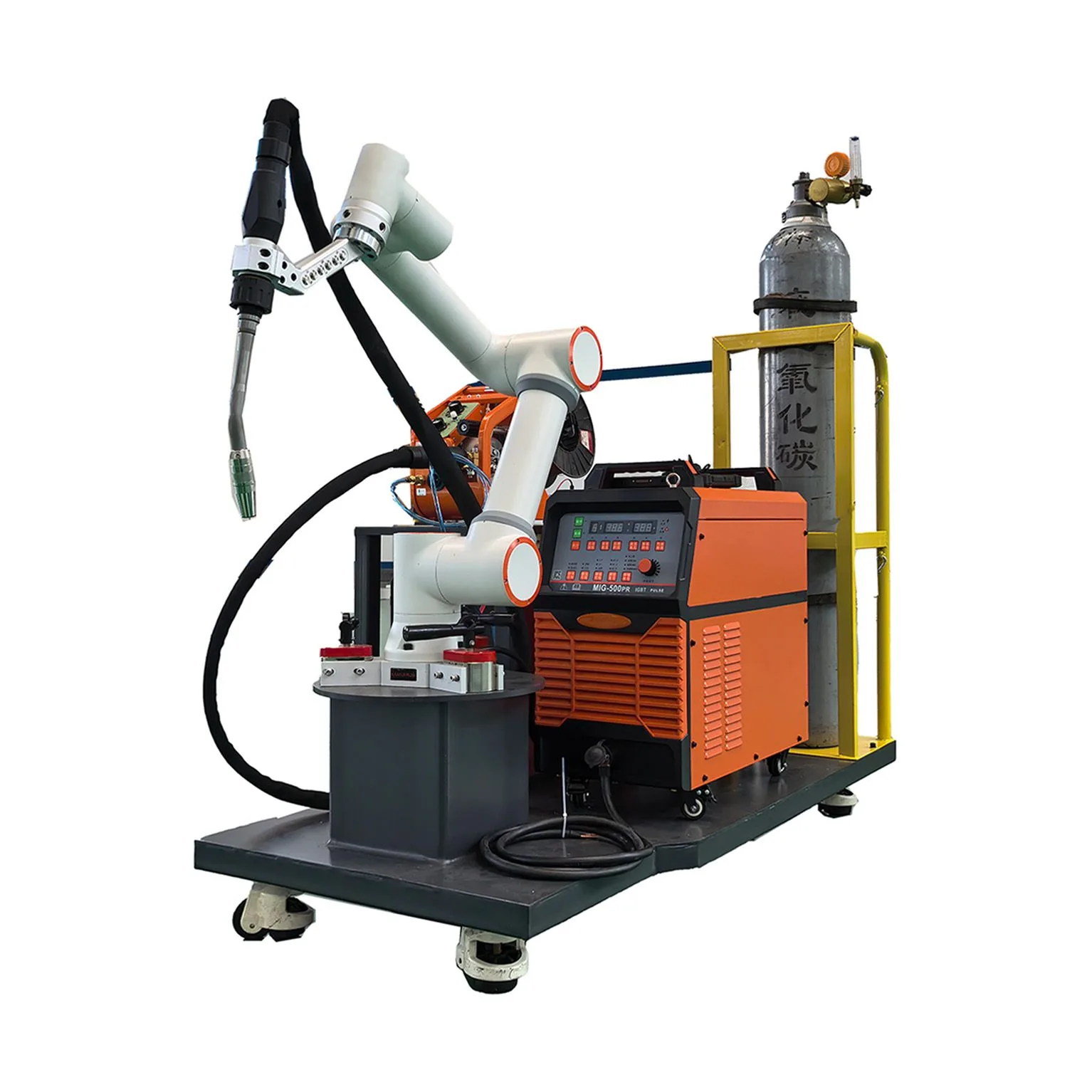

Collaborative robot welding machine (programming-free robot welding machine) Robot welding machines are industrial automation equipment that integrate precision mechanics, intelligent control, and sensor technology. They use multi-joint manipulators equipped with welding guns and other end effectors to perform automated welding operations on metal components under the coordinated action of control and sensor systems.
Key facts
- Payload
- 12 kg
- Reach
- 953.4 mm
- DOF
- 6
- Repeatability
- ±0.02 mm
- TCP speed
- 2.5 m/s
Detailed specifications
Motion & kinematics3
- Dof
- 6
- Repeatability Mm
- 0.02
- Positioning Accuracy
- 0.05
Power & battery2
- Power Consumption W
- 6000
- Welding Machine Power
- 350A/500A
Safety & certifications1
- Safety Certification
- ISO, CE
Other23
- Price Tier
- 20-40K
- Applications
- arc_welding, laser_welding
- Sub Category
- Laser Welding Robot
- Arm Span Size
- {"HX-922":922,"HX-1400":1400,"HX-1800":1800}
- Max Speed M S
- 2.5
- Pricing Model
- purchase
- Force Limiting
- true
- Model Variants
- HX-922, HX-1400, HX-1800
- Operating Temp
- 0ºC to 45ºC
- Warranty Years
- 1
- Company Country
- CN
- Lead Time Weeks
- 4
- Deployment Notes
- Widely applied in welding applications in industries such as automotive, machinery production, electronic equipment, and aerospace.
- Mounting Options
- floor, portable
- Arc Welding Speed
- 0.5-2m/min
- Industries Served
- automotive, construction
- Training Required
- none
- Fieldbus Protocols
- EtherCAT
- Availability Status
- available
- Countries Available
- CN
- Extras.Contact Emails
- service@madeinchina.com
- Programming Interface
- teach_pendant
- Additional Information
- Offers one-stop service for the metal processing industry., Products are exported to over 180 countries and regions worldwide., The company emphasizes independent innovation and has strategic partnerships with research institutions.
