The CRX-3iA is a Cobot developed by FANUC (Japan). Key specifications: axes 6, repeatability ±0.02 mm, force limiting Yes, no-code Yes.
RoboScore
Strong evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
4 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Ranked #140 of 368 in the Cobot standing.
See the standingWhere it has stood45 days · best #136 · worst #258
4 days carry something the board can name:
- 24 Aug RoboScore rose 10.73 — its evidence changed.
- 12 Sept Its maker's news lifted the score 0.58 — the board noticed.
- 22 Sept Its maker's news lifted the score 0.71 — the board noticed.
One reading per day since 10 Aug, when the current ordering began. The rank above is the reading for 24 Sept, taken against 368 robots — the standing itself is live, so a robot added since then counts there and not here yet.
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how CRX-3iA measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview

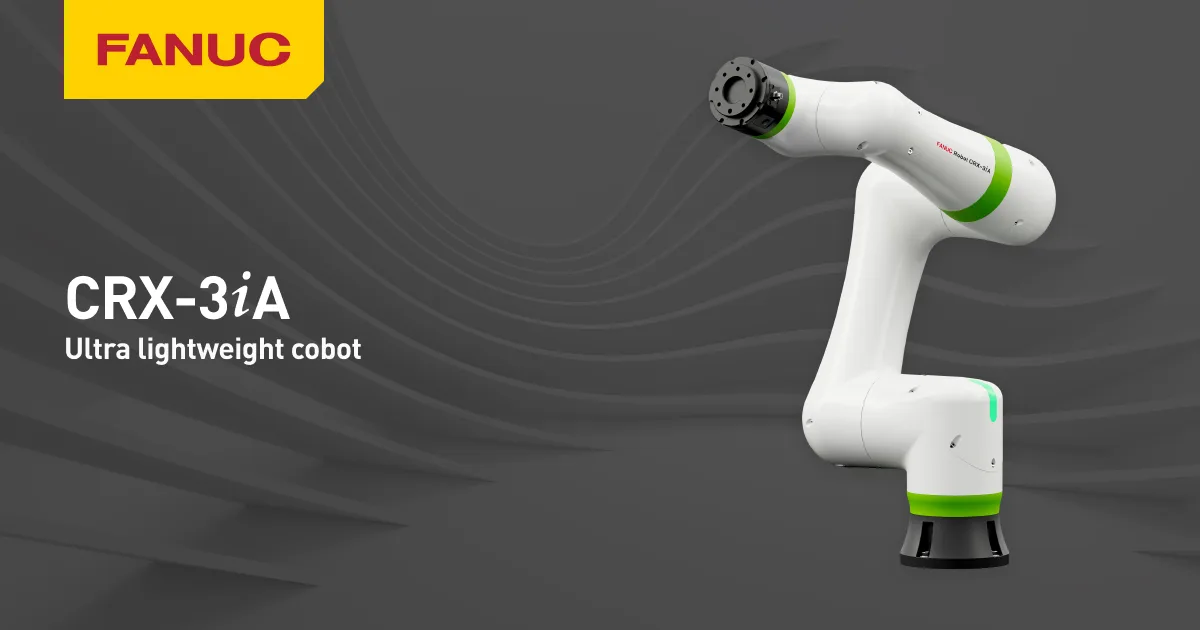

The FANUC CRX-3iA is a lightweight, 3 kg payload collaborative robot with a 692 mm reach and 11 kg weight, designed for easy relocation and installation in tight spaces. It features automatic installation angle detection, optional magnetic base mounting, and a weld torch wire wall-touch setup for automatic position recognition, making it well-suited for shipbuilding, welding, assembly, and other light-duty applications. Its 3 kg payload supports mounting a welding torch and sensor simultaneously for automatic weld-point detection and path generation.
At a glance
- Built for arc welding, assembly and visual inspection
- Used across automotive, fabricated metals and shipbuilding
- Programmed through drag and drop
Buyer decision signals
Viability
FANUC debuts Cobot and Go at Automate 2026
Price
purchase
Availability
Specifications
Category: Cobot- Axes
- 6
- Repeatability
- ±0.02 mm
- Force limiting
- Yes
- No-code
- Yes
Top 12% of 370 models with this spec
Company profile
- Founded
- 1972
Detailed specifications
What it is built for3
- Applications
- arc welding,assembly,visual inspection
- Sub Category
- lightweight collaborative robot
- Industries Served
- automotive,fabricated metals,shipbuilding
Size & capacity1
- Height Mm
- 440
Controls & integration4
- Mounting Options
- floor,ceiling,angle,wall
- Compatible Vision
- iRVision
- Compatible Grippers
- FANUC 2F-85 plug-and-play gripper kit
- Programming Interface
- drag and drop
Buying & support4
- Price Tier
- 40-80K
- Datasheet Url
- Preview PDF online
- Pricing Model
- purchase
- Availability Status
- available
Other details15
- Ip65 Option
- available
- Protection Body
- IP67
- Controller Series
- R-30iB Plus, R-30iB Mini Plus
- J4 Moment Inertia
- 8.5 N-m / 0.32 kg-m²
- J5 Moment Inertia
- 6.5 N-m / 0.24 kg-m²
- J6 Moment Inertia
- 4 N-m / 0.08 kg-m²
- Motion Range J1 Deg
- 400
- Motion Range J2 Deg
- 360
- Motion Range J3 Deg
- 592
- Motion Range J4 Deg
- 380
- Motion Range J5 Deg
- 360
- Motion Range J6 Deg
- 450
- Tool Flange Standard
- iso 9283 compatible
- Protection Wrist J3 Arm
- IP67
- Air Driven Solenoid Valve
- included
Who runs it· deployment evidence
No deployment evidence on file
A deployment is recorded when a public source names the customer, or the maker confirms it. Nothing here counts against this robot.
14 other robots in this category have one.
Add a deployment →Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with FANUC or an authorized seller.
Request a quote — goes straight to FANUC.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- May 2026LaunchFANUC debuts Cobot and Go at Automate 2026
- Jan 2026MilestoneFANUC America social post on M-950/500
- Mar 2025DeploymentProMat 2025 showcase of M-410/800F-32C
- May 2024LaunchFANUC launches M-410/800F-32C palletizing robot
- May 2024MilestoneAEI reports new 800 kg M-410 model development
- Jan 2022LaunchFANUC introduces M-1000iA heavy-duty robot
- Jan 2022LaunchFANUC introduces M-1000iA heavy-payload robot
- 2026MilestoneCRX-10iA/L shown in Automate 2026 applications
Compare with peers
FANUC in the news
the maker8 events · last 12 months
Japan's Fanuc, Google team up on AI-automated welding robots
FANUC in the news
the maker8 events · last 12 months
News about FANUC, the maker — not about this robot specifically, except rows marked this robot. Collected and classified independently across 24 outlets, so a maker cannot add to it. It never changes this robot's RoboScore — the evidence half of the RoboIndex — and it can move it up a board by at most 15 points. See all FANUC news
Frequently asked questions
- Who makes the CRX-3iA?
- The CRX-3iA is developed by FANUC, based in Japan.
- What type of robot is the CRX-3iA?
- The CRX-3iA is a Cobot made by FANUC.
- How much does the CRX-3iA cost?
- Pricing for the CRX-3iA is not publicly listed — contact FANUC for a quote.
- What are the key specifications of the CRX-3iA?
- Key specifications of the CRX-3iA: axes 6, repeatability ±0.02 mm, force limiting Yes, no-code Yes.
