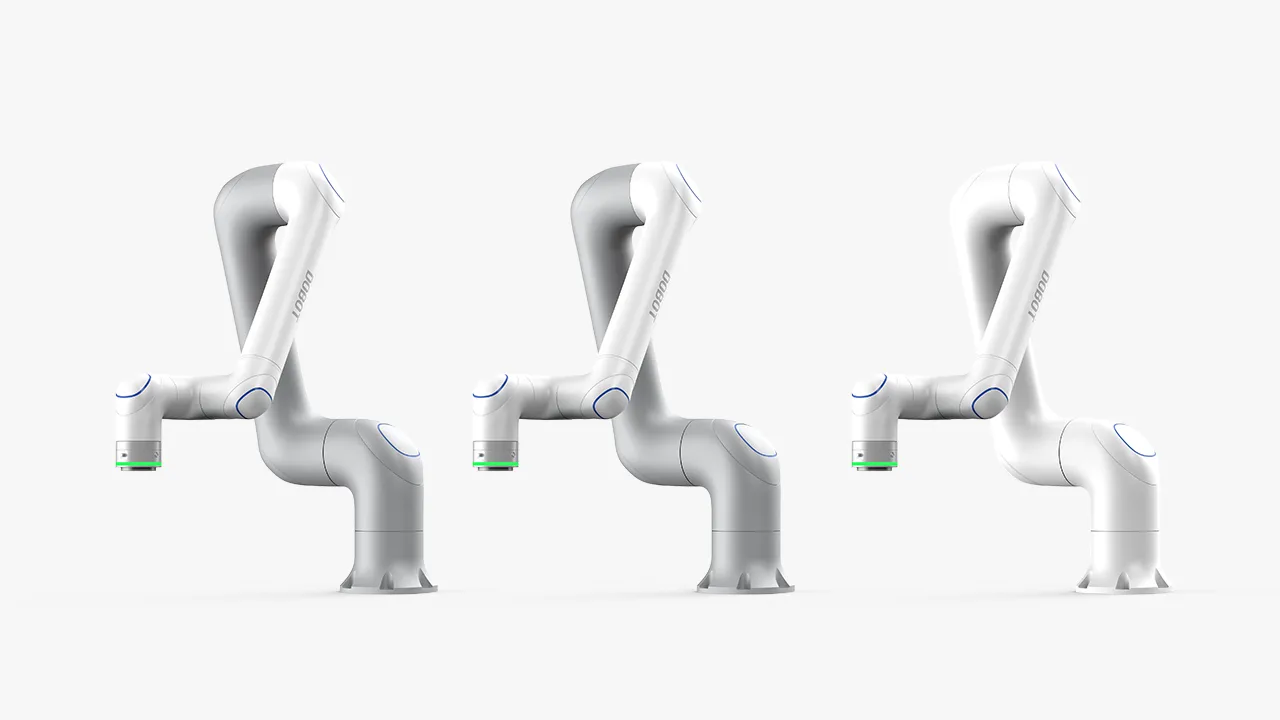

The DOBOT Magician E6 is a Cobot developed by Dobot (China). Key specifications: axes 6, payload 0.75 kg, reach 450 mm, repeatability ±0.1 mm.
RoboScore
Adequate evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
5 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 5 scored · blanks don't count
Ranked #278 of 364 in the Cobot standing.
See the standingWhere it has stood71 days · best #229 · worst #279
4 days carry something the board can name:
- 14 Aug RoboScore rose 0.44 — its evidence changed.
- 15 Aug Its maker's news lifted the score 0.83 — the board noticed.
- 27 Sept Its maker's news lifted the score 1.10 — the board noticed.
One reading per day since 3 Aug, when the current ordering began. The rank above is the reading for 13 Oct, taken against 364 robots — the standing itself is live, so a robot added since then counts there and not here yet.
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how DOBOT Magician E6 measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview
The DOBOT Magician E6 is a desktop-grade 6-axis collaborative robot designed for education and scientific research. It accurately simulates various automation scenarios for immersive learning. It features interfaces for secondary development, course materials for robotics education, trajectory replay no-code drag-to-teach programming, and graphical programming. It is an ideal platform for exploring AI, smart manufacturing, and related fields.
At a glance
- Built for pick and place, assembly and bin picking
- Used across education and scientific research
- Programmed through drag to teach / graphical (DobotStudio Pro)
- Rated for operation at 0° to 40° C
Buyer decision signals
Viability
Availability
Specifications
Category: Cobot- Axes
- 6
- Payload
- 0.75 kg
- Reach
- 450 mm
- Repeatability
- ±0.1 mm
- Weight
- 7.2 kg
- TCP speed
- 0.5 m/s
- IP rating
- IP20
- Force limiting
- Yes
- F/T sensing
- none
- No-code
- Yes
- API / SDK
- Yes
Top 96% of 429 models with this spec
Top 97% of 401 models with this spec
Top 85% of 371 models with this spec
Top 89% of 242 models with this spec
Company profile
- Confirmed funding
- US$15.6M· 1 round
- Founded
- 2015
Detailed specifications
What it is built for3
- Applications
- pick and place,assembly,bin picking,gluing dispensing,visual inspection,polishing,machine tending,packaging,lab automation
- Sub Category
- desktop
- Industries Served
- education,scientific research
Sensing & perception2
- Force Torque Present
- Yes
- Integrated Force Torque Sensor
- not available
Controls & integration6
- Mounting Options
- desktop
- Software Platform
- DobotStudio Pro
- Training Required
- basic_<1day
- Fieldbus Protocols
- Ethernet,TCP/IP,Modbus TCP
- Connectivity Options
- ethernet
- Programming Interface
- drag and drop,visual block,no code gui,proprietary app
Safety & certification2
- Noise Level Db
- 60
- Operating Temp
- 0° to 40° C
Buying & support1
- Availability Status
- available
Other details23
- Noise
- 60dB(A)
- Io Base
- DI×16, DO×16, 24V×4, GND×4
- Humidity
- 25-85% non-condensing
- Noise Db
- 60
- Materials
- Aluminum alloy, ABS plastic
- Io Arm Tip
- DI×2, DO×2, 24V×1, GND×1
- Power Input
- 100V~240V AC, 50/60 Hz
- Joint Ranges
- J1 ±360 / J2 ±135 / J3 ±154 / J4 ±160 / J5 ±173 / J6 ±360
- Power Supply
- 100-240V AC 50/60Hz
- Joint 1 Range
- ±360°
- Joint 2 Range
- ±135°
- Joint 3 Range
- ±154°
- Joint 4 Range
- ±160°
- Joint 5 Range
- ±173°
- Joint 6 Range
- ±360°
- Rated Voltage
- 48V DC 5A
- Emergency Stop
- Yes
- Base Dimensions
- 162 mm x 120 mm x 103 mm
- External Interface
- EMO x 1, ABZ encoder x 1, Power connector x 1
- Wrist Power Supply
- 24V, Max 2A, Max 0.5A for each channel
- Maximum Joint Speed
- 120°/s
- Sdk Language Support
- Lua
- Installation Orientation
- Desktop
Who runs it· deployment evidence
No deployment evidence on file
A deployment is recorded when a public source names the customer, or the maker confirms it. Nothing here counts against this robot.
14 other robots in this category have one.
Add a deployment →Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Dobot or an authorized seller.
Request a quote — goes straight to Dobot.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- Mar 2024LaunchDobot announces X-Trainer availability
- Jul 2021LaunchDobot CR16 Hardware User Guide V1.3 Released
- Nov 2019LaunchMagician Lite unveiled
- Feb 2019DeploymentThird batch mass production and delivery of ATOM began
- 2026DeploymentATOM deployed at K11 Cinema popcorn counter
- 2026LaunchDOBOT to debut next-generation cobot at Automate 2026
- 2025LaunchATOM launch announced by DOBOT
- 2025MilestoneAtom positioned for industrial and commercial tasks
Compare with peers
Dobot in the news
the maker8 events · last 12 months
Robust expansion of the CR Cobot Series: DOBOT launches CR10 at the Hannover Messe 2022
Dobot in the news
the maker8 events · last 12 months
News about Dobot, the maker — not about this robot specifically, except rows marked this robot. Collected and classified independently across 15 outlets, so a maker cannot add to it. It never changes this robot's RoboScore — the evidence half of the RoboIndex — and it can move it up a board by at most 15 points. See all Dobot news
Frequently asked questions
- Who makes the DOBOT Magician E6?
- The DOBOT Magician E6 is developed by Dobot, based in China.
- What type of robot is the DOBOT Magician E6?
- The DOBOT Magician E6 is a Cobot made by Dobot.
- How much does the DOBOT Magician E6 cost?
- Pricing for the DOBOT Magician E6 is not publicly listed — contact Dobot for a quote.
- What are the key specifications of the DOBOT Magician E6?
- Key specifications of the DOBOT Magician E6: axes 6, payload 0.75 kg, reach 450 mm, repeatability ±0.1 mm, weight 7.2 kg.
