Overview

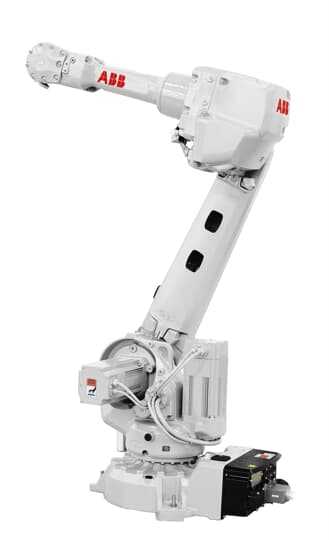

The IRB 2600 is a compact industrial robot with high payload capacity, optimized for arc welding, material handling, and machine tending applications. It features sharp accuracy with TrueMove motion control, can reduce cycle times by up to 25%, and offers flexible mounting configurations including floor, wall, shelf, tilted, or inverted positions. Available in three variants with payloads up to 20 kg and reach up to 1.85 meters, with IP67 protection as standard.
Key facts
- Payload
- 12 kg
- Reach
- 1650 mm
- Repeatability
- ±0.03 mm
- Safety rating
- Cat.3 PLd
- MTBF
- 100000 h
- Duty cycle
- continuous 24 7
- Controller
- R-30iB Plus
- Tool flange
- ISO 9409-1
- Cable routing
- through arm and wrist
Detailed specifications
Motion & kinematics5
- Dof
- 6
- Path Accuracy Mm
- 0.5
- Repeatability Mm
- 0.03
- Max Joint Speed Deg S
- 250
- Joint Position Resolution Deg
- 0.0001
Power & battery2
- Tool Voltage V
- 24
- Power Consumption W
- 1500
Compute2
- Ros Compatible
- true
- Ros Industrial Support
- vendor_supported
Safety & certifications4
- Ip Rating Wrist
- IP67
- Safety Category
- Cat.3 PLd
- Dual Check Safety
- true
- Safety Certification
- CE, ISO 10218-1, UL 1740
Other55
- Arm Class
- small_payload
- Duty Cycle
- continuous_24_7
- Industries
- automotive, electronics, general_manufacturing
- Mtbf Hours
- 100000
- Price Tier
- 40-80K
- Applications
- arc_welding, material_handling, machine_tending
- Sub Category
- material_handling
- Api Available
- true
- Datasheet Url
- https://qviro.com/product/abb/irb-2600/specifications
- Max Speed M S
- 2.4
- Pricing Model
- purchase
- Model Variants
- M-20iD/25, M-20iD/25L, M-20iD/35
- Operating Temp
- 0°C to 45°C
- Tool Current A
- 2
- Warranty Years
- 3
- Analog Io Count
- 4
- Company Country
- JP
- Lead Time Weeks
- 8
- Safe Zone Count
- 8
- Controller Model
- R-30iB Plus
- Deployment Count
- 10000
- Deployment Notes
- Used for carton palletizing and material handling in industrial environments.
- Digital Io Count
- 40
- Mounting Options
- floor, wall, shelf, tilted, inverted
- Price On Request
- true
- Industries Served
- automotive, electronics, general_manufacturing
- Software Platform
- RobotStudio
- Vibration Damping
- active_model_based
- E Stop Response Ms
- 15
- Fieldbus Protocols
- ethernet_ip, profinet, devicenet
- Iot Cloud Platform
- FANUC ZDT
- Teach Pendant Type
- smart_pad
- Availability Status
- available
- Compatible Grippers
- SCHUNK, Robotiq, ATI
- Countries Available
- US, EU, JP, CN, KR
- Mes Erp Integration
- SAP, Rockwell FactoryTalk
- Primary Applications
- arc_welding, material_handling, machine_tending
- Tool Flange Standard
- ISO 9409-1
- Inertia Capacity Kgm2
- 0.8
- Pneumatic Lines Count
- 2
- Programming Interface
- teach_pendant, code_python, offline_programming
- Programming Languages
- KAREL, TP
- Additional Information
- - Compact robot with high payload capacity and sharp accuracy. - Optimized design results in lower weight and improved cycle time. - Effective internal cable routing reduces downtime and maintenance costs. - RobotStudio software is essential for integration and SafeMove features, though it may be complex for first-time users. - High acceleration and quick move features help in achieving production targets. - Counterweight springs may start to make noise over time.
- Electrical Lines Count
- 12
- Internal Cable Routing
- through_arm_and_wrist
- Predictive Maintenance
- ml_based
- Service Network Density
- global
- Temperature Range Max C
- 45
- Temperature Range Min C
- 0
- Tool Flange Diameter Mm
- 100
- Cycle Time 25 305 25 Sec
- 0.36
- Spare Parts Lead Time Days
- 14
- Expected Service Life Years
- 10
- Offline Programming Software
- RobotStudio
- Teach Pendant Display Inches
- 8
