LHZ-1450-B-6
Built by Jiangsu Aolong Electric Technology · China
Overview

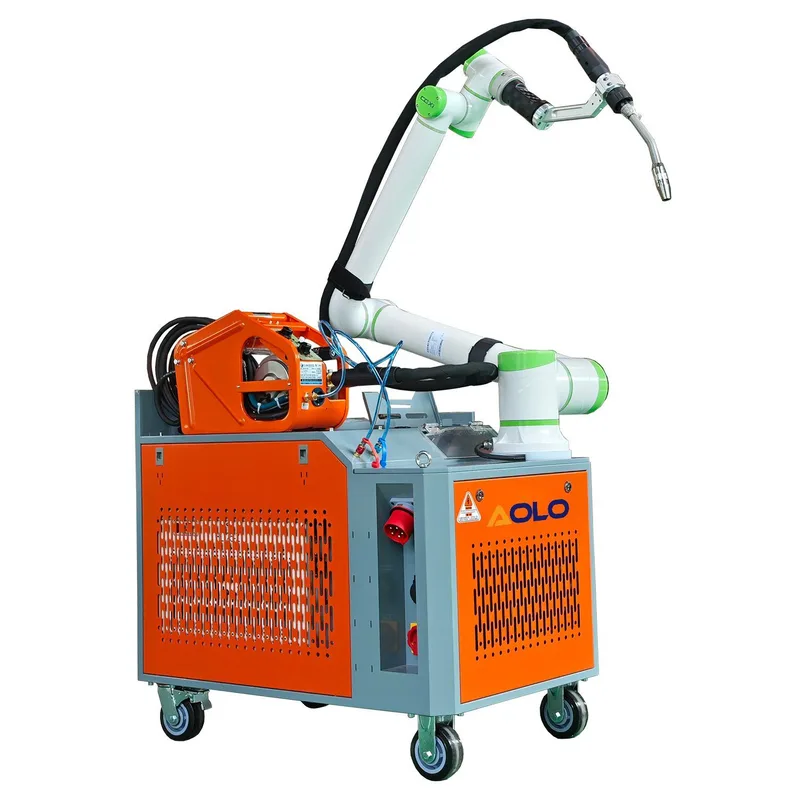

The collaborative robot is a welding equipment specially produced by our company for heavy industry. This machine can be used for linear welding, round welding, multi-stage process welding, etc. Compared with the traditional robotic arm, the collaborative robot is easy to operate and does not require complicated program settings. The setting can be completed by pulling the robotic arm to set the welding point according to the welding path. The Equipment equipped pulse MIG welding power supply, and the communication response between the welding machine and the robotic arm is timely. The overall welding process is smooth, which reduces labor costs and improves work efficiency.
Detailed specifications
Power & battery1
- Tool End Power Supply
- 24V / 1.5A
Other21
- Price Tier
- 10-20K
- Applications
- arc_welding
- Sub Category
- 6-axis cobot
- Base Diameter
- 190
- Dimensions Mm
- 640*320*590
- Pricing Model
- purchase
- Operating Temp
- 0~45ºC
- Warranty Years
- 1
- Company Country
- CN
- Insulation Class
- H
- Welding Material
- S.S / C.S / AL / Copper .etc
- Industries Served
- automotive,metalwork
- Training Required
- basic_<1day
- Operating Humidity
- 90%RH
- Availability Status
- available
- Max Welding Current
- 500
- Torch Cooling Method
- air cooling
- Programming Interface
- teach_pendant
- Additional Information
- - Designed specifically for welding tasks (MIG pulse and laser welding). - All welding parameters can be set via the control pad interface. - 360° flexible rotation for complex welding paths. - Available in three reach variants: 1300, 1500, and 1800 mm. - Company primarily manufactures industrial welding machines; cobot is sold as part of a welding package. - Product page lacks detailed technical specs (payload, repeatability, speed). - Pricing not listed; inferred as '20-40K' based on typical entry-level cobot pricing and 'contact for quote' nature.
- Weight Welding Machine Kg
- 52
- Enclosure Protection Class
- IP21S
