#20 of 212 ranked Warehouse AMR robots (535 listed)#131 on the Robots list (all categories)
See the rankingWatch it work
5 videosMore videos
Seegrid Lift CR1 Customer Demo: Destacking, Tight Tolerances, and Variable Height Picks
Seegrid Lift CR1 Pedestrian Awareness Training
Seegrid CR1: Precision Fork Truck Meets Robotic Cell Automation
Seegrid Manufacturing Workflow Demo Featuring CR1, RS1, and Tow Tractor
RoboScore
Out of 100. Checks on sales, customers, specs and track record.
Very strong evidence
No named customers yet. The score uses the rest of its record.
7 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 7 checks with data. Checks without data are left out.
Overview

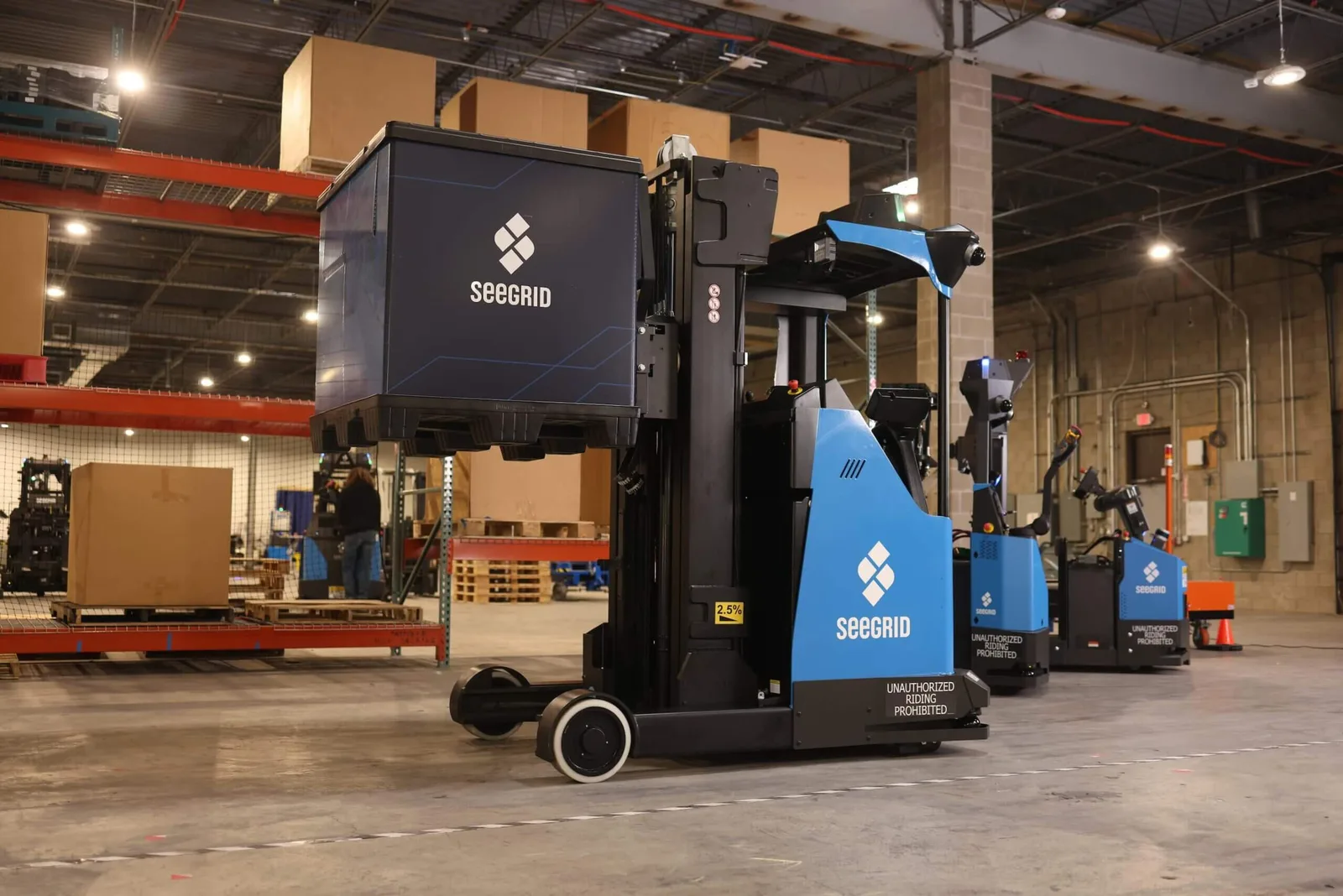

The Seegrid Lift CR1 is a robust autonomous mobile robot built for heavy material transport, vertical handling, and parts-to-line placement. Ideal for the demands of heavy manufacturing, the CR1 safely lifts up to 4,000 pounds up to 15 feet. By automating high-risk, heavy-duty forklift operations, the CR1 protects your workforce while ensuring reliable, continuous facility throughput.
Key specs
- Built for each picking, case picking and pallet picking
- Used across heavy manufacturing and warehousing
- Programmed through teach pendant
- Public API for integration
- Detects and avoids obstacles in its path
- Rated for operation at 0°C to 40°C
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Forklift amr
- 0.8 m/s
- 1000 mm
- Lidar slam,vision,hybrid slam
- ISO 3691-4, ANSI/RIA R15.08
- lifepo4
- 6 h
- Purchase
Company profile
- Recorded funding
- US$82.0M· 2 rounds
- Founded
- around 2003
Detailed specifications
What it is built for9
- heavy payload
- Industries
- manufacturing,warehousing,logistics
- Applications
- material handling
- forklift amr
- Payload Class
- heavy
- heavy manufacturing,warehousing
- Environment Rating
- indoor only
- Floor Compatibility
- smooth concrete,painted concrete,sealed concrete
- Primary Applications
- each picking,case picking,pallet picking,putaway,replenishment,cross docking,sortation,kitting
Size & capacity4
- Width Mm
- 800
- Height Mm
- 1000
- Length Mm
- 1200
- Floor Clearance Mm
- 100
Movement & precision2
- 10
- Obstacle Detection
- Yes
Sensing & perception6
- 3d
- Lidar Count
- 4
- Camera Count
- 2
- Yes
- Yes
- Safety Lidar Coverage Deg
- 360
Power & runtime4
- Yes
- Auto Charging
- Yes
- 4
- No
Controls & integration9
- Yes
- Fleet Central
- Max Fleet Size
- 100
- No
- Network Protocols
- wifi 5,ethernet
- Software Platform
- Amigo Robot Interface
- Compatible Grippers
- Amigo Gripper 100,Amigo Gripper 200
- wifi,ethernet
- teach pendant
Safety & certification4
- 0°C to 40°C
- R15 08 Certified
- Yes
- Emergency Stop Count
- 3
- Pedestrian Detection
- human aware
Buying & support11
- 150K+
- Datasheet Url
- Preview PDF online
- Price Currency
- USD
- Pricing Models
- capex
- 2
- Lead Time Weeks
- 8
- Deployment Count
- 50
- Price On Request
- Yes
- Availability Status
- available
- Countries Available
- US,EU,Asia
- Service Network Density
- global
Other details43
- Forks
- ITA Rated; 42" Standard, 36"-72" Optional
- Safety
- Layered 2D & 3D LiDAR sensors
- Api Type
- open rest
- Mtbf Hours
- 2000
- Ros Support
- none
- Emergency Stop
- Yes
- Lift Height Mm
- 4572
- Uptime Sla Pct
- 99.5
- Max Lift Height
- 15'
- Cat.4 PLe
- Payload Capacity
- 4,000 lbs
- Acceleration Ms2
- 1.5
- Audible Alert Db
- 85
- Fleet Management
- Yes
- Wcs Integrations
- Honeywell Momentum,Dematic
- Wms Integrations
- SAP EWM,Manhattan SCALE
- Safety Zone Count
- 3
- 600
- Visual Indicators
- status led,direction lights,display screen
- Typical Roi Months
- 12
- Charge Cycles Rated
- 1000
- Ground Clearance Mm
- 100
- Battery Capacity Kwh
- 12
- Digital Twin Support
- Yes
- Fleet Size Supported
- 100
- Iso 3691 4 Certified
- Yes
- Opportunity Charging
- No
- Over The Air Updates
- Yes
- Max Speed Unloaded Ms
- 1.2
- Predictive Maintenance
- ml based
- Maximum Automatic Speed
- 5 mph
- Cycle Time Per Pick Sec
- 30
- Docking Repeatability Mm
- 5
- Localization Accuracy Mm
- 10
- Picks Per Hour Per Robot
- 150
- No
- Obstacle Detection Range M
- 5
- Spare Parts Lead Time Days
- 5
- Expected Service Life Years
- 5
- Cybersecurity Certifications
- ISO 27001
- Field Service Response Hours
- 24
- Min Object Detection Height Cm
- 10
- Multi Robot Traffic Management
- dynamic optimization
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
19 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2025AwardLift RS1 wins Products of the Year Readers' Choice Award
- 2024MilestoneLift CR1 announced at MODEX 2024
- 2024AwardNamed Modern Material Handling 2024 Readers' Choice Product of the Year
- Apr 2024LaunchSeegrid unveils Lift CR1 at MODEX 2024
- Mar 2024MilestoneLift CR1 opened for pre-order
- Mar 2024LaunchLift CR1 debuted at MODEX 2024
- 2023DeploymentRS1 deployed at multiple blue-chip customer sites
- Mar 2020LaunchSeegrid announces Tow Tractor S7 product launch
Compare with
Frequently asked questions
- Who makes the Lift CR1 AMR?
- The Lift CR1 AMR is developed by Seegrid, based in United States.
- What type of robot is the Lift CR1 AMR?
- The Lift CR1 AMR is a Warehouse AMR made by Seegrid.
- How much does the Lift CR1 AMR cost?
- Pricing for the Lift CR1 AMR is not publicly listed. Contact Seegrid for a quote.
- When was the Lift CR1 AMR launched?
- The Lift CR1 AMR was launched in 2021.
- What are the key specifications of the Lift CR1 AMR?
- Key specifications of the Lift CR1 AMR: type forklift amr, top speed 0.8 m/s, min. aisle 1000 mm, navigation lidar slam,vision,hybrid slam, safety cert. ISO 3691-4, ANSI/RIA R15.08.
