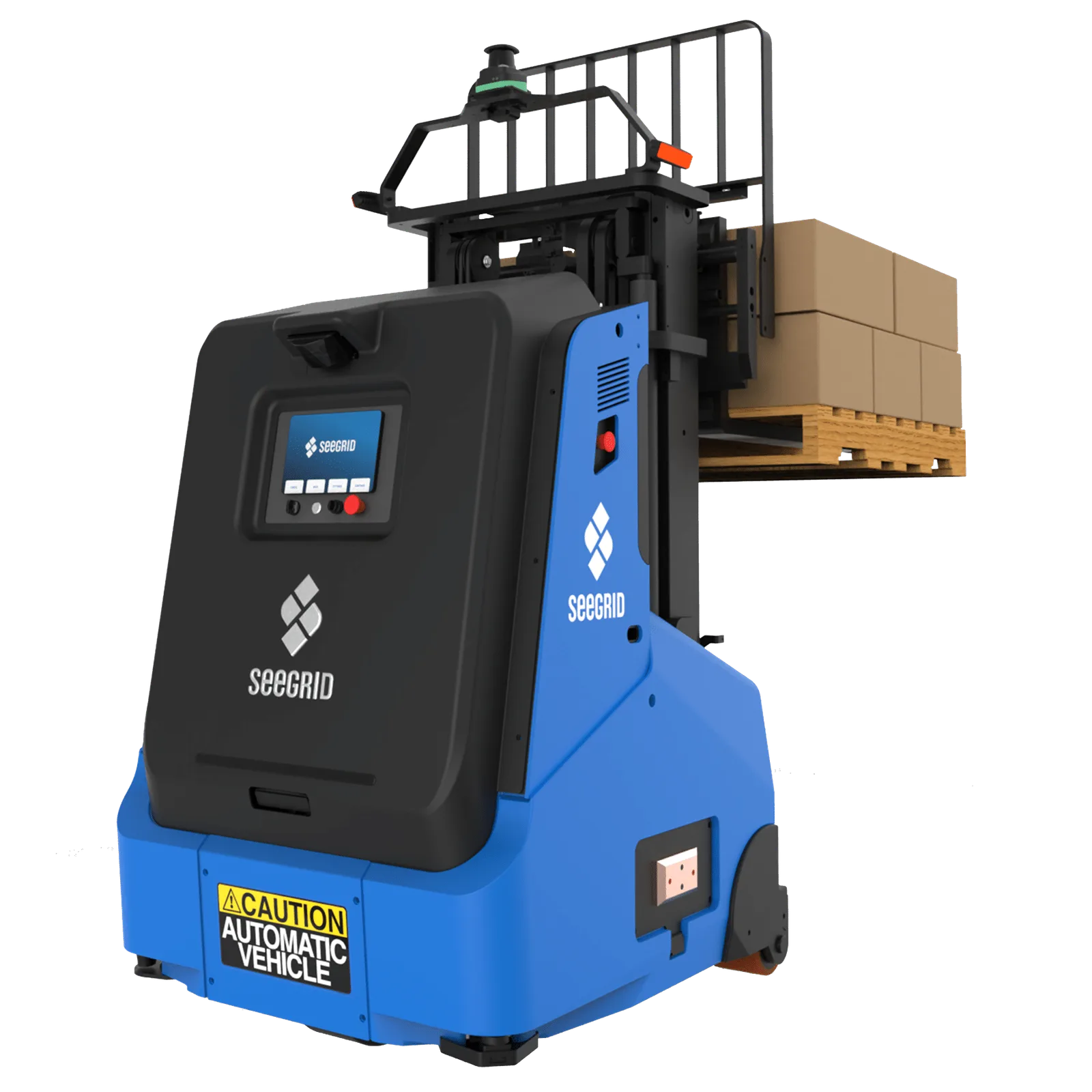

Seegrid Lift EL1
Built by Seegrid · United States· Launched 2021
#1 of 218 ranked Warehouse AMR robots (542 listed)#14 on the Robots list (all categories)
See the rankingWatch it work
1 videoRoboScore
Out of 100. Checks on sales, customers, specs and track record.
Very strong evidence
No named customers yet. The score uses the rest of its record.
7 of 9 checks have data
Updated daily from public data. Missing data is skipped, never counted as zero.
What counts
Average of the 7 checks with data. Checks without data are left out.
Overview
Ideal for space-constrained environments for high-frequency, low-lift material movements.
Key specs
- Built for each picking, case picking and pallet picking
- Used across manufacturing and logistics
- Programmed through Amigo Robot Interface
- Public API for integration
- Detects and avoids obstacles in its path
- Rated for operation at 0°C to 40°C
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Forklift counterbalance
- 1814.37 kg
- 1000 mm
- Other
- None
- Other
- 6 h
- Yes
- Commercial shipping
- Unknown
64% of warehouse amr robots have it
- 2.236 m/s
Faster than 85% of 338 Warehouse AMR robots with this spec
Company profile
- Recorded funding
- US$82.0M· 2 rounds
- Founded
- around 2003
Detailed specifications
What it is built for8
- Industries
- 3pl,retail dc,general warehousing
- Applications
- warehouse transport,goods to person
- low-lift
- Payload Class
- heavy
- e-commerce,pharmaceuticals
- Environment Rating
- indoor only
- Floor Compatibility
- smooth concrete,painted concrete,sealed concrete
- Primary Applications
- each picking,case picking,pallet picking,putaway,replenishment,sortation,kitting
Size & capacity4
- Width Mm
- 800
- Height Mm
- 1000
- Length Mm
- 1200
- Floor Clearance Mm
- 100
Movement & precision2
- 10
- Obstacle Detection
- Yes
Sensing & perception6
- 2d and 3d
- Lidar Count
- 4
- Camera Count
- 2
- Yes
- Yes
- Safety Lidar Coverage Deg
- 360
Power & runtime4
- Yes
- Auto Charging
- Yes
- 4
- No
Controls & integration8
- Yes
- Amigo Fleet Manager
- Max Fleet Size
- 100
- No
- Network Protocols
- wifi 5,ethernet
- Software Platform
- Amigo Robot Interface
- Compatible Grippers
- Amigo Gripper 100,Amigo Gripper 200
- wifi,ethernet
Safety & certification4
- 0°C to 40°C
- R15 08 Certified
- Yes
- Emergency Stop Count
- 2
- Pedestrian Detection
- human aware
Buying & support11
- 20-40K
- Datasheet Url
- View Link
- Price Currency
- USD
- Pricing Models
- capex
- 2
- Lead Time Weeks
- 8
- Deployment Count
- 50
- Price On Request
- Yes
- Availability Status
- available
- Countries Available
- US,EU,Asia
- Service Network Density
- global
Other details43
- Forks
- ITA Rated; 42" Standard, 36"-48" Optional
- Safety
- Layered 2D & 3D LiDAR sensors
- Api Type
- open rest
- Mtbf Hours
- 2000
- Ros Support
- none
- Emergency Stop
- Yes
- Lift Height Mm
- 1575
- Uptime Sla Pct
- 99.5
- Max Lift Height
- 5' 2"
- Cat.4 PLe
- Payload Capacity
- 2,700 lbs
- Acceleration Ms2
- 1.5
- Audible Alert Db
- 85
- Fleet Management
- Yes
- Wcs Integrations
- Honeywell Momentum,Dematic
- Wms Integrations
- SAP EWM,Manhattan SCALE
- Safety Zone Count
- 3
- 600
- Visual Indicators
- status led,direction lights,display screen
- Typical Roi Months
- 12
- Charge Cycles Rated
- 1000
- Ground Clearance Mm
- 100
- Battery Capacity Kwh
- 12
- Digital Twin Support
- Yes
- Fleet Size Supported
- 100
- Iso 3691 4 Certified
- Yes
- Opportunity Charging
- No
- Over The Air Updates
- Yes
- Max Speed Unloaded Ms
- 1.2
- Predictive Maintenance
- ml based
- Maximum Automatic Speed
- 3.4 mph
- Cycle Time Per Pick Sec
- 30
- Docking Repeatability Mm
- 5
- Localization Accuracy Mm
- 10
- Picks Per Hour Per Robot
- 150
- No
- Obstacle Detection Range M
- 5
- Spare Parts Lead Time Days
- 5
- Expected Service Life Years
- 5
- Cybersecurity Certifications
- ISO 27001
- Field Service Response Hours
- 24
- Min Object Detection Height Cm
- 10
- Multi Robot Traffic Management
- dynamic optimization
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
19 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2025AwardLift RS1 wins Products of the Year Readers' Choice Award
- 2024MilestoneLift CR1 announced at MODEX 2024
- 2024AwardNamed Modern Material Handling 2024 Readers' Choice Product of the Year
- Apr 2024LaunchSeegrid unveils Lift CR1 at MODEX 2024
- Mar 2024MilestoneLift CR1 opened for pre-order
- Mar 2024LaunchLift CR1 debuted at MODEX 2024
- 2023DeploymentRS1 deployed at multiple blue-chip customer sites
- Mar 2020LaunchSeegrid announces Tow Tractor S7 product launch
Compare with
Frequently asked questions
- Who makes the Seegrid Lift EL1?
- The Seegrid Lift EL1 is developed by Seegrid, based in United States.
- What type of robot is the Seegrid Lift EL1?
- The Seegrid Lift EL1 is a Warehouse AMR made by Seegrid.
- How much does the Seegrid Lift EL1 cost?
- Pricing for the Seegrid Lift EL1 is not publicly listed. Contact Seegrid for a quote.
- When was the Seegrid Lift EL1 launched?
- The Seegrid Lift EL1 was launched in 2021.
- What are the key specifications of the Seegrid Lift EL1?
- Key specifications of the Seegrid Lift EL1: type forklift counterbalance, payload 1814.37 kg, top speed 2.236 m/s, min. aisle 1000 mm, navigation other.
