Overview

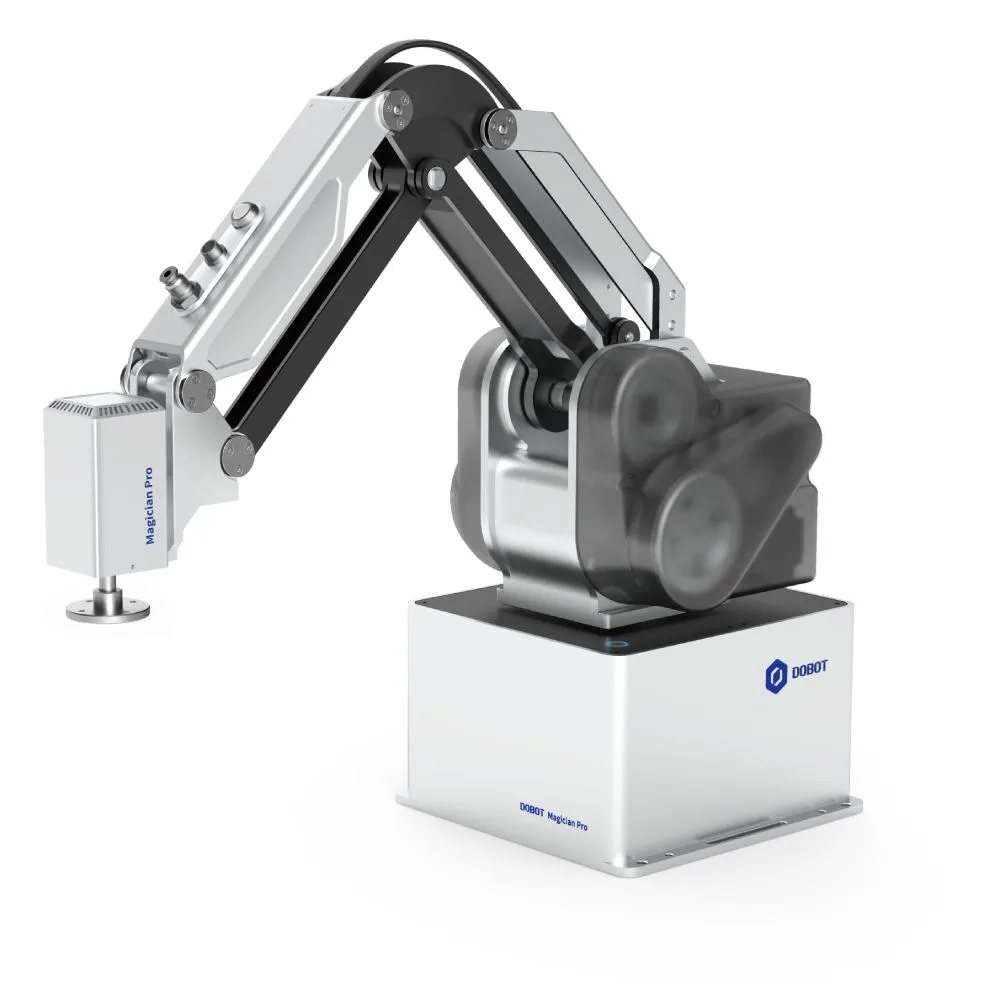

Desktop Cobot for Agile Industrial Tasks
Flagship features
- Extremely compact design allows it to fit into a small workspace
- Ideal for flexible and small batch production
- Designed with user-friendly features to lower entry barriers for automation
Specifications
Category: Cobot- Type
- other
- Axes
- 4
- Payload
- 30 kg
- Reach
- 440 mm
- Repeatability
- ±0.05 mm
- Weight
- 8 kg
- TCP speed
- 5.24 m/s
- IP rating
- IP20
- Safety cert.
- CE, ISO/TS 15066
- Force limiting
- Yes
- F/T sensing
- none
- API / SDK
- Yes
Detailed specifications
Motion & kinematics1
- Max Joint Speed Deg S
- 300
Power & battery1
- Power Consumption W
- 240
Compute2
- Ros Compatible
- false
- Ros Industrial Support
- none
Other28
- Arm Class
- small_payload
- Industries
- automotive,consumer_electronics,food_beverage,healthcare,semiconductor
- Price Tier
- 20-40K
- Applications
- assembly,packaging
- Sub Category
- SCARA
- Datasheet Url
- Preview PDF online
- Pricing Model
- purchase
- Operating Temp
- 0°C to 40°C
- Warranty Years
- 2
- Company Country
- CN
- Controller Model
- Integrated
- Deployment Notes
- DOBOT MG400 is used in various sectors such as metal processing, automotive, food & beverage, consumer electronics, healthcare, and semiconductor.
- Mounting Options
- floor
- Price On Request
- false
- Industries Served
- automotive,food_and_beverage,healthcare,semiconductor
- Software Platform
- DobotStudio 2020
- Fieldbus Protocols
- TCP/IP,Modbus TCP
- Availability Status
- available
- Primary Applications
- loading_and_unloading,assembly,gluing,quality_inspection,transporting
- Tool Flange Standard
- proprietary
- Extras.Contact Emails
- sales@dobot-robots.com
- Programming Interface
- teach_pendant
- Additional Information
- - Extremely compact design allows it to fit into a small workspace. - Ideal for flexible and small batch production. - Designed with user-friendly features to lower entry barriers for automation.
- Internal Cable Routing
- through_arm
- Predictive Maintenance
- none
- Service Network Density
- regional
- Temperature Range Max C
- 40
- Temperature Range Min C
- 0
