Overview

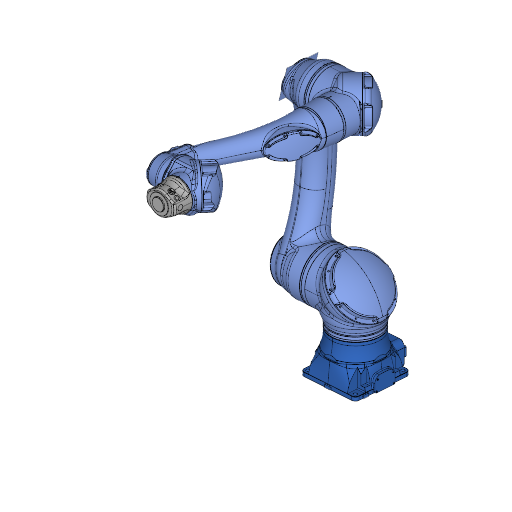

HC30PL is a cobot made by Motoman. It weighs 140 kg.
Flagship features
- Features Power and Force Limiting Technology (PFL) for safe interaction
- Adaptable between collaborative and full speed operational modes based on production demands
- Easy-to-clean surface suitable for sanitary environments
- Utilizes YRC1000 and YRC1000micro controllers
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
From the makerCheckedEstimated- Six axis collaborative
- 6
- ≤ 5 kg
- ≤ 1300 mm
- IP54
- ISO/TS 15066
- Yes
- None
- Yes
- Tablet-style
- No
- Yes
97% of cobot robots have it
88% of cobot robots have it
63% of cobot robots have it
90% of cobot robots have it
- ±0.03 mm
- 140 kg
- ≤ 1.5 m/s
More precise than 58% of 372 Cobot robots with this spec
Heavier than 86% of 259 Cobot robots with this spec
Faster than 38% of 242 Cobot robots with this spec
Detailed specifications
What it is built for2
- Applications
- assembly,deburring,machine tending,pick and place,polishing
- automotive,food processing and packaging
Sensing & perception1
- No
Power & runtime1
- Power Consumption W
- 250
Controls & integration10
- Yes
- floor
- Setup Time Hours
- 1
- Compatible Vision
- Cognex,AnyVision,SICK
- Software Platform
- ENCY Robot
- Training Required
- none
- Fieldbus Protocols
- EtherCAT,Profinet
- Compatible Grippers
- Universal Robots Gripper,Schunk
- ethernet
- teach pendant
Safety & certification1
- 0°C to 50°C
Buying & support8
- 40-80K
- Datasheet Url
- Preview PDF online
- purchase
- 2
- Lead Time Weeks
- 4
- Deployment Count
- 10000
- Availability Status
- available
- Countries Available
- DK,US,DE,JP
Other details34
- Controller
- YRC1000 & YRC1000micro
- Tool Flange
- EN ISO 9409-1-80-6-MB
- Power Supply
- 380-480 VAC, 3-phase
- Power Rating Kva
- 1.5
- Effective Mass Kg
- 116.7
- Relative Humidity
- 20% to 80% non-condensing
- Temperature Range
- 0° C to 40° C
- Ethernet Cable Cat6
- Yes
- Maximum Pressure Kpa
- 400
- Communication Interfaces
- Thru-arm Cat-6 Ethernet, I/O cable, dual 5 mm ID air lines
- Maximum Motion Range Sec
- 80 80 120 112 132 180
- Tcp Speed Collaborative Ms
- 1
- Maximum Reach <27kg Payload
- 1,700 mm
- Maximum Reach >27kg Payload
- 1,600 mm
- Maximum Motion Range Degrees
- ±210 ±180/-154 + 247/-67 ±15 ±15 ±210
- Maximum Speed Above 20kg Mm S
- ±15 ±15 ±210
- Maximum Speed Below 20kg Mm S
- + 247/-67
- Air Lines Internal Diameter Mm
- 5
- Allowable Moment Above 20kg Nm
- 120
- Allowable Moment Below 20kg Nm
- 80
- Maximum Speed Degrees Per Second
- 180
- Maximum Speed Collaborative Mode Mm S
- 1,000
- Power Requirements Yr1000 Yr1000micro
- Three-phase 380-480VAC 50/60Hz
- Maximum Motion Range Above 20kg Degrees
- ±180/-154
- Maximum Motion Range Below 20kg Degrees
- ±210
- Maximum Allowable Current Per Conductor A
- 1.5
- Maximum Speed Non Collaborative Mode Mm S
- 2,000
- Speed At Rated Payload Degrees Per Second
- 180
- Internal User I O Cable Mm2 X 8 Conductors
- 0.1
- Allowable Moment Of Inertia Above 20kg Kg M2
- 132
- Allowable Moment Of Inertia Below 20kg Kg M2
- 112
- Allowable Moment Of Intertia Above 20kg Kg M2
- 180
- Allowable Moment Of Intertia Below 20kg Kg M2
- 180
- Power Requirements Single Phase Or Three Phase 200 230vac 50 60hz
- UN_m 58.8 58.8 29.4 kg•m 2 _ _ _ 4.0 4.0 2
Who uses it
No named customer yet
A customer is listed when a public source names them, or the maker adds them.
14 other robots in this category have one.
Add a customer →Where to buy
Get a price or reach an authorized seller.
No seller listed for your region yet. Ask for a quote.
Are you a distributor? List your company, free.
Every seller is shown equally. Placement is never sold and never affects a score.
Company milestones(estimated)
- 2023MilestoneHC30PL shown at Automate 2023
- 2022LaunchHC30PL launch announcement
- 2022MilestoneHC30PL product details published
- 2022LaunchHC30PL launch announced
- 1989MilestoneCompany founded
- Not yet on fileMilestoneHC10DTP specifications published
- Not yet on fileMilestoneHC20DTP product page published
- Not yet on fileLaunchHC10DTP product page and launch materials
Compare with
More by Motoman
Motoman in the news
the maker1 event · last 12 months
- Feb 25Red Dot Awards for two Motoman robots
Motoman in the news
the maker1 event · last 12 months
News about Motoman, the maker, not about this robot specifically, except rows marked this robot. Collected and classified independently across 1 outlet, so a maker cannot add to it. It never changes this robot's RoboScore (the evidence half of the RoboIndex) and it can move it up a board by at most 15 points. See all Motoman news
Frequently asked questions
- Who makes the HC30PL?
- The HC30PL is developed by Motoman, based in Japan.
- What type of robot is the HC30PL?
- The HC30PL is a Cobot made by Motoman.
- How much does the HC30PL cost?
- The HC30PL is listed at US$50,000–70,000 in the Robolist catalogue, but this figure did not come from Motoman. Contact them for a quote.
- When was the HC30PL launched?
- The HC30PL was launched in 2019.
- What are the key specifications of the HC30PL?
- Key specifications of the HC30PL: type six axis collaborative, axes 6, payload ≤ 5 kg, reach ≤ 1300 mm, repeatability ±0.03 mm.
