Overview

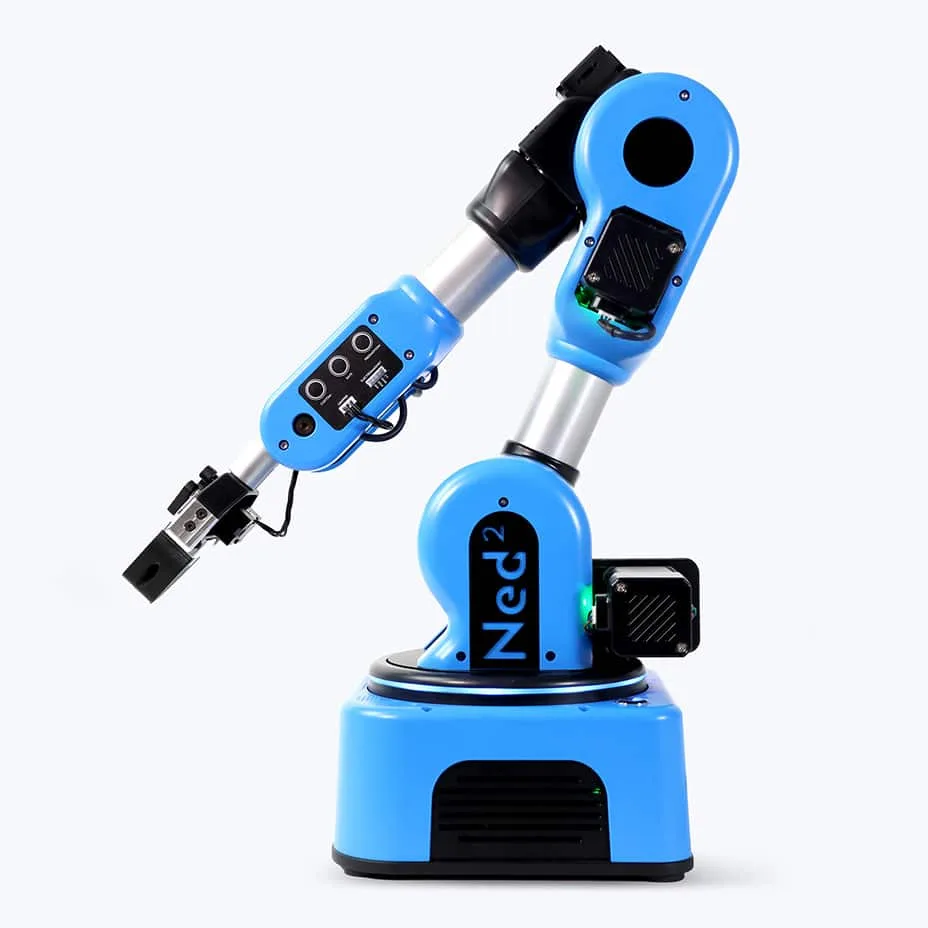

Ned2 is a 6-axis educational desktop robotic arm designed for teaching robotics from basics to advanced levels. It features a sturdy metal chassis, a 300g payload, 490mm reach, and ±0.5mm repeatability. The robot supports multiple programming interfaces including Blockly, Python, ROS, ROS 2, MATLAB, and integrates with TensorFlow, OpenCV, and NVIDIA for AI and computer vision education. It comes with a plug-and-play magnetic tool changer, silent stepper motors, and an ergonomic control panel with a freemotion button. Includes a 1-year warranty and is backed by Niryo's educational ecosystem: NiryoStudio (no-code programming), NiryoAcademy (turnkey educational content), and Niryo Success support.
Detailed specifications
Motion & kinematics4
- Dof
- 6
- Repeatability Mm
- 0.5
- Force Torque Sensing
- none
- Integrated Force Torque Sensor
- not_available
Sensors2
- Dimensions Depth Mm
- 187.6
- Ir Sensor Interface
- 1
Compute2
- Ros Version
- ROS & ROS 2
- Ros Compatible
- true
Other44
- Motor Type
- silent stepper
- Price Tier
- <10K
- Applications
- pick_and_place,visual_inspection,lab_automation
- Sub Category
- tabletop
- Analog Inputs
- 2 (12-bit)
- Api Available
- true
- Pricing Model
- purchase
- Analog Outputs
- 2 (12-bit)
- Digital Inputs
- 3 (NPN)
- Force Limiting
- false
- Warranty Years
- 1
- Company Country
- FR
- Digital Outputs
- 3 (NPN)
- No Code Capable
- true
- Chassis Material
- metal
- Connectivity Usb
- USB 2.0 (2) - 3.0 (2)
- Deployment Count
- 3500
- Deployment Notes
- Used at Imperial College London, Penn State, École des Ponts, University of Manchester, Université Paris-Saclay, University of Melbourne, Newton College, CESI Lyon, Polytech.
- Mounting Options
- floor,desk
- Compatible Vision
- OpenCV,TensorFlow,NVIDIA
- Connectivity Wifi
- 2.4GHz & 5GHz
- Industries Served
- education,research
- Led Ring Feedback
- true
- Software Platform
- NiryoStudio
- Tool Changer Type
- magnetic (SnapLink)
- Training Required
- basic_<1day
- Conveyor Interface
- 2
- Availability Status
- available
- Compatible Grippers
- Custom Gripper,Large Gripper,Adaptive Gripper,Vacuum Pump,Electromagnet
- Countries Available
- more than 70 countries
- Dimensions Width Mm
- 181.6
- Digital Twin Support
- robodK
- Dimensions Height Mm
- 436.22
- Sdk Language Support
- Python,C++,MATLAB
- Tool Changer Support
- manual
- Tool Flange Standard
- proprietary
- Programming Interface
- drag_and_drop,visual_block,code_python,code_ros
- Vacuum Pump Interface
- 1
- Additional Information
- - **Target market:** Education (secondary schools, vocational schools, community colleges, universities, bachelor/master levels) - **Unique selling points:** Silent stepper motors, magnetic 'Easy Connect' tool changer (SnapLink), LED ring feedback for status indication, ergonomic control panel with programmable custom button - **Software ecosystem:** NiryoStudio (drag-and-drop Blockly + Python), NiryoAcademy (turnkey curriculum), RoboDK simulation included, PyNiryo library, integrates with TensorFlow, OpenCV, MATLAB, NVIDIA - **Supported ecosystems:** Access, Training, Discovery Bundle — adapts to student skill levels - **Customer deployments:** Used by teachers and students globally; part of Niryo's education line (Ned platform) - **Competitive differentiators:** Open-source friendly (ROS/ROS2), industrial-grade metal chassis at educational price point, dedicated educational support (Niryo Success for Education) - **Bundles available:** Integration Pack for Education (from €7,550), Cybersecurity Pack (from €7,199), STEM Pack (from €6,499), STEM Bundle (from €6,199) - **Warranty extension:** Up to 36 months total; 12 or 24 month extensions available - **Connectivity:** Wi-Fi 2.4/5GHz, Ethernet 1Gb/s, USB 2.0 x2, USB 3.0 x2 - **I/O:** 3 digital inputs (NPN), 3 digital outputs (NPN), 2 analog inputs (12-bit), 2 analog outputs (12-bit), conveyor interface, IR sensor interface, vacuum pump interface - **Control panel:** Custom button, save button, freemotion button, gripper connector, electromagnet connector - **Notable limitations:** Not designed for industrial use; 300g payload is very light; no force/torque sensing; no IP rating specified; proprietary tool flange (not ISO 9283) - **Pricing note:** No public price on page — uses 'Add to quote' model; bundles start at €6,199
- Control Panel Save Button
- true
- Connectivity Ethernet Speed
- 1Gb/s
- Control Panel Custom Button
- true
- Offline Programming Support
- robodK
- Control Panel Freemotion Button
- true
