Overview

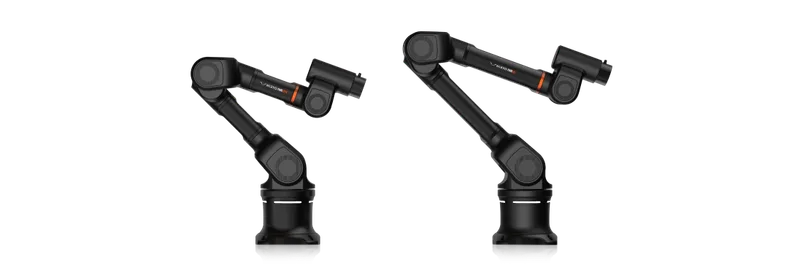

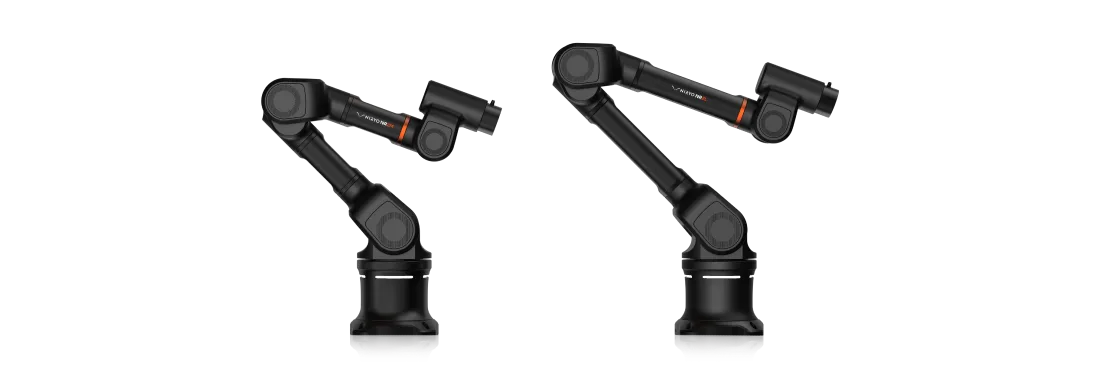

The Niryo NR2 is a compact 6-axis industrial robotic arm designed for light industrial automation in constrained environments. It features an open AI-ready architecture, is available in two reach configurations (800 mm and 1100 mm), and offers a 2 kg payload. The robot is built on a modular ecosystem including NA Series actuators, NPG grippers, and the NiryoStudio for Nate software. It includes safety features compliant with ISO 10218-1 and is CE certified, with the controller designed for 24/7 operation. The platform supports multi-language programming including Python and visual block coding.
Detailed specifications
Motion & kinematics1
- Dof
- 6
Power & battery1
- Power Supply
- 100-240 VAC, 50-60 Hz
Safety & certifications2
- Certification
- CE
- Safety Standards
- ISO 10218-1
Other24
- Made In
- France
- Interfaces
- Ethernet / USB / I/O
- Price Tier
- 40-80K
- Applications
- machine_tending,visual_inspection,packaging,pick_and_place
- Sub Category
- 6-axis
- Datasheet Url
- Preview PDF online
- Max Speed M S
- 3
- Model Variants
- NR2 M,NR2 L
- Operating Temp
- 5°C to 45°C
- Scope Mm NR2 L
- 1100
- Scope Mm NR2 M
- 800
- Smart Machines
- Intelligent robotic cells
- Warranty Years
- 1
- Ai Solutions Url
- View Link
- Deployment Notes
- Designed and manufactured in France. Offers industrial support from design to deployment including needs analysis, turnkey integration, installation, and commissioning. Customer stories available on the website.
- Software Platform
- NiryoStudio for Nate
- Training Required
- intermediate_1-5days
- Availability Status
- available
- Compatible Grippers
- NPG Series
- Compatible Actuators
- NA Series
- Programming Software
- NiryoStudio for Nate
- Total Weight Kg NR2 L
- 19
- Total Weight Kg NR2 M
- 17
- Compatible Grippers Series
- NPG Series
