Overview

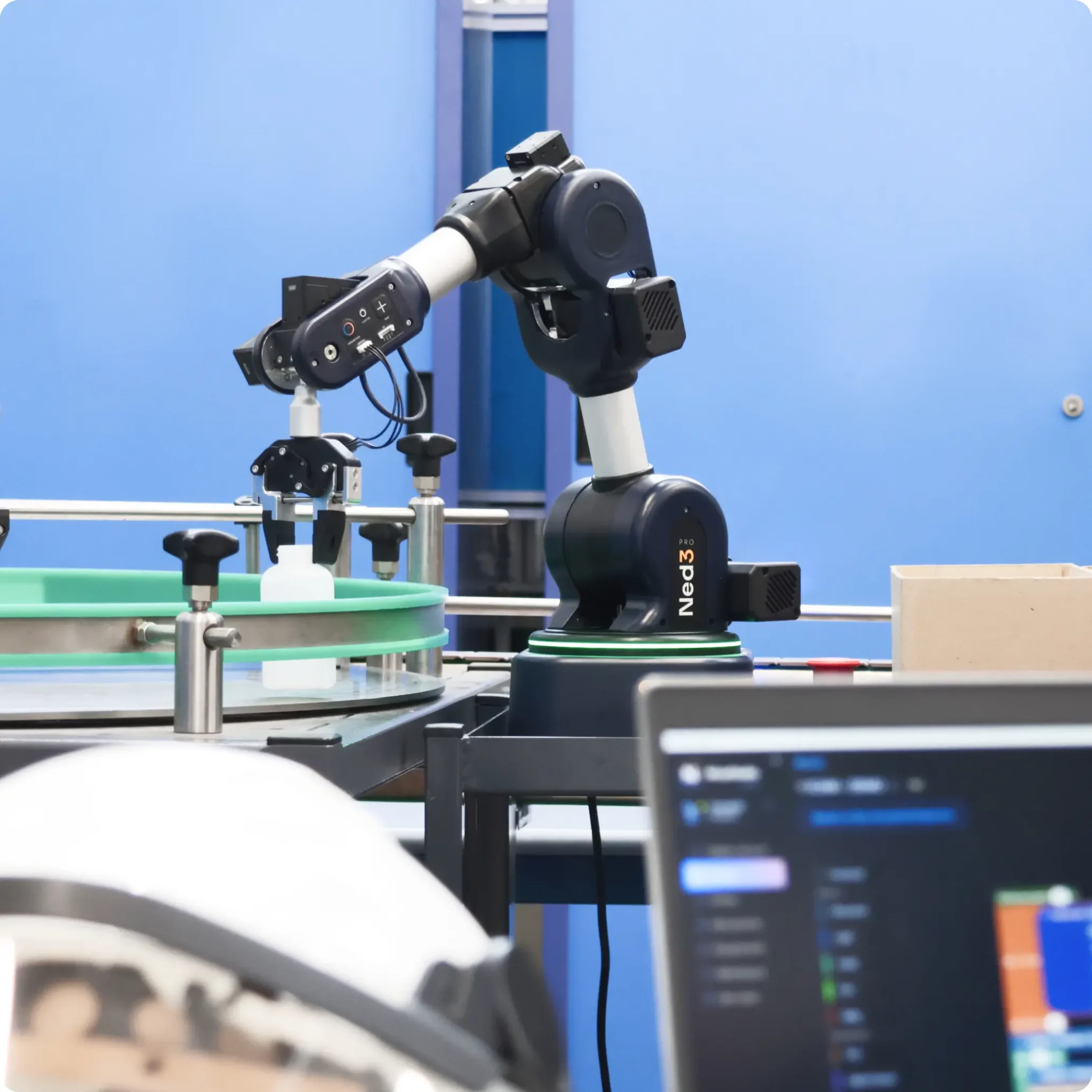

Ned3 Pro is a compact and intuitive 6-axis robotic arm designed to automate repetitive tasks. Easy to integrate, it enhances productivity and precision while offering flexible and scalable automation.
Specifications
Category: Cobot- Axes
- 6
- Repeatability
- ±0.3 mm
- Force limiting
- Yes
- API / SDK
- Yes
VerifiedSelf-reportedEstimated
Detailed specifications
Sensors2
- Depth Mm
- 200
- Ir Sensor Interface
- 1
Safety & certifications1
- Emergency Stop
- 1
Other28
- Wifi
- 2.4GHz & 5GHz
- Ethernet
- 1Gb/s RJ45
- Width Mm
- 200
- Bluetooth
- 5.0
- Height Mm
- 443.95
- Usb Ports
- USB 2.0 x2, USB 3.0 x2
- Source Url
- View Link
- Record Type
- robot
- Analog Inputs
- 2
- Tcp Offset Mm
- 20
- Analog Outputs
- 2
- Digital Inputs
- 3
- Gripper Connector
- true
- Led Ring Feedback
- true
- Conveyor Interface
- 2
- Digital Input Type
- NPN
- Digital Output Type
- NPN
- Working Diameter Mm
- 1000
- Vacuum Pump Interface
- 1
- Electromagnet Connector
- true
- Price Currency Verified
- false
- Control Panel Save Button
- true
- Silent Stepper Technology
- true
- Control Panel Custom Button
- true
- Compatible With Niryo Expert
- true
- Compatible With Niryo Academy
- true
- Compatible With Niryo Success
- true
- Control Panel Freemotion Button
- true
