PCB
Built by Dongguan Rongan Electromechanical Equipment · China
The PCB is a Industrial Arm developed by Dongguan Rongan Electromechanical Equipment (China), listed at $3,800 USD (unverified). Key specifications: arm class standard industrial, axes 3, reach 300 mm, repeatability ±0.1 mm.
RoboScore
Adequate evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
3 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 3 scored · blanks don't count
Ranked #512 of 772 in the Industrial Arm standing.
See the standingWhere it has stood28 days · best #475 · worst #512
Nothing changed about this robot itself — what you can see is the field shifting around it, or its maker's news rising and ageing.
One reading per day since 3 Aug, when the current ordering began. The rank above is the reading for 30 Aug, taken against 772 robots — the standing itself is live, so a robot added since then counts there and not here yet.
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how PCB measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview

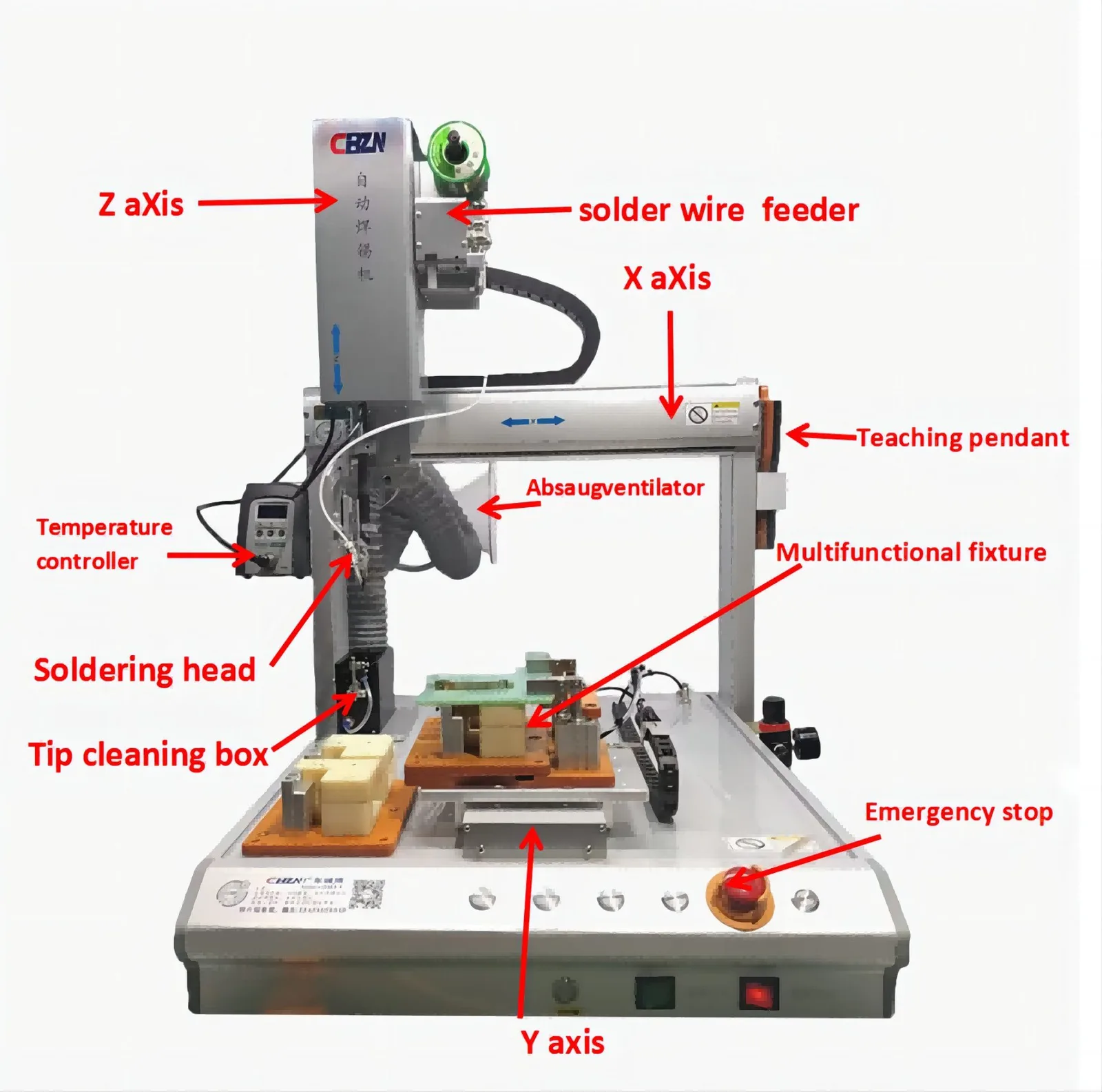

Automatic PCB Laser Solder Automatic soldering machine is an automatic soldering equipment, which mainly completes the soldering operation by using the motion function of the manipulator. The core part of the automatic PCB soldering machine is the soldering system. The soldering system is mainly composed of automatic tin feeding mechanism, temperature control, heating element and soldering iron head. The soldering iron unit can be adjusted to any direction, 360° free rotation for R-axis. Data cable soldering machine is for XYZ movements with teaching pendant for easy programming, even beginner can quickly grasp the operation essentials. Widely used in electronic products as wires, PCBA, Led light, circuit boards, home appliances, etc.
At a glance
- Built for pcb assembly and soldering assistance
- Backed by a 2-year warranty
Buyer decision signals
Viability
Company profile available
Price
purchase
Unverified — no source on record
Availability
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Axes
- 3
- Reach
- 300 mm
- Repeatability
- ±0.1 mm
- Weight
- 110 kg
- Controller
- PC, Touch Screen + Visual Programm System, Industrial computer i5-6,8G Memory,128SSD+1T,win7 system[1]
- Programming
- Touch Screen + Visual Programm System
- Safety cert.
- CE, ISO
- Force limiting
- No
- Maturity
- commercial
- Industries
- Electrical & Electronics Industry, Lighting Industry, Auto Industry
Detailed specifications
What it is built for3
- Applications
- pcb assembly,soldering assistance
- Sub Category
- 3-axis soldering robot
- Procedure Types
- Solder Wire Feeding, Automatic spot/drag welding, Point soldering / Drag soldering[1][2]
Movement & precision1
- Dof
- 3
Controls & integration1
- Training Required
- basic_<1day
Buying & support3
- Pricing Model
- purchase
- Warranty Years
- 2
- Availability Status
- available
Other details16
- Motor
- Servo motor
- HS Code
- 8515190090
- Stoke Mm
- 300*300*100
- Laser Power
- 150
- Customs Code
- 8515190090
- Package Size Cm
- 105.00 * 85.00 * 90.00
- Station Size Mm
- 200*200
- Solder Wire Dia Mm
- 0.5-1.2
- Dispensing Accuracy
- 95
- Industrial Computer
- I5-6, 8G Memory, 128SSD+1T, Win7
- Machine Accuracy Mm
- 0.03
- Temperature Celsius
- 100°C~480°C
- Laser Output Stability
- < (+/-5%)
- Package Gross Weight Kg
- 130
- Tin Feeding Accuracy Mm
- 0.2
- Production Capacity Sets/Month
- 500
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Dongguan Rongan Electromechanical Equipment Co., Ltd. or an authorized seller.
Request a quote — goes straight to Dongguan Rongan Electromechanical Equipment Co., Ltd..
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- —MilestoneCompany profile available
Compare with peers
More by Dongguan Rongan Electromechanical Equipment
Frequently asked questions
- Who makes the PCB?
- The PCB is developed by Dongguan Rongan Electromechanical Equipment, based in China.
- What type of robot is the PCB?
- The PCB is a Industrial Arm made by Dongguan Rongan Electromechanical Equipment.
- How much does the PCB cost?
- The PCB is listed at $3,800 USD in the Robolist catalogue, but this figure is unverified and not confirmed by Dongguan Rongan Electromechanical Equipment — contact them for a quote.
- What are the key specifications of the PCB?
- Key specifications of the PCB: arm class standard industrial, axes 3, reach 300 mm, repeatability ±0.1 mm, weight 110 kg.
