Overview

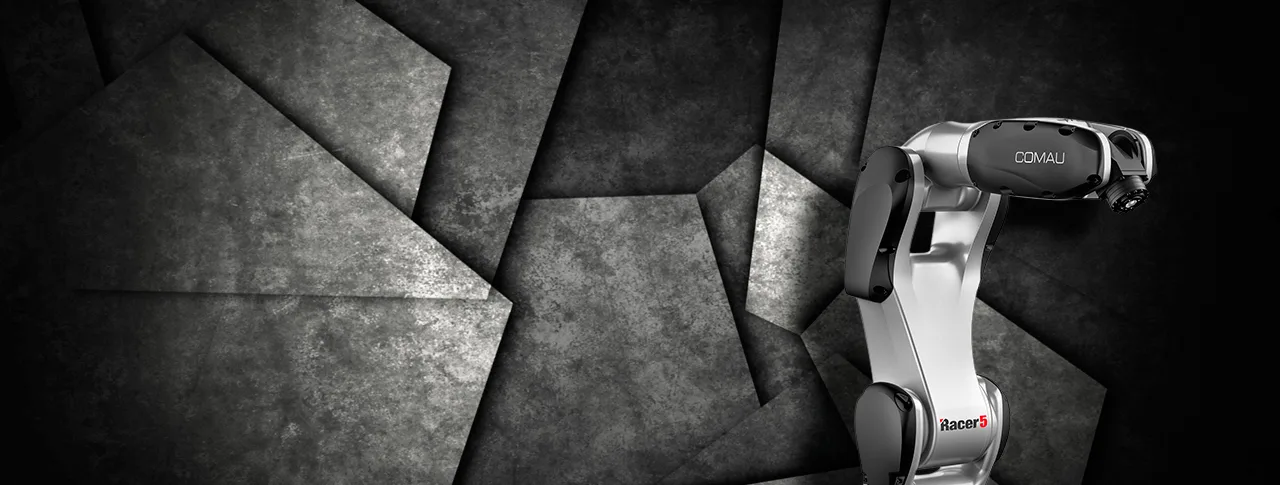

Payload up to: 5 kg, Max H reach of: 809 mm, Repeatability: 0.03 mm.
Flagship features
- The Comau Racer 5-0.80 is listed on the RoboDK software platform, which provides simulation, offline programming, and integration capabilities
- RoboDK offers flexible pricing options (not specified) and is licensed software
- Not a direct manufacturer listing; specs are from the RoboDK library
- Applications mentioned include assembly, dispensing, material handling, and Remote TCP (tracked as 'pick_and_place' and 'material_handling')
- RoboDK marketplace includes add-ins and VR/AR support
- Success stories on the RoboDK site include robotic machining for sculpture (Neoset Designs) and multi-robot inspection (NASA), but these are not specific to this arm model
Specifications
Category: Industrial Arm- Arm class
- collaborative
- Axes
- 6
- Payload
- 5 kg
- Reach
- 809 mm
- Repeatability
- ±0.03 mm
- Weight
- 34 kg
- TCP speed
- ≤ 6 m/s
- IP rating
- IP54
- Mounting
- floor, wall, ceiling
- Controller
- R1C
- Programming
- teach pendant,proprietary app
- Tool flange
- ISO 9409 – 1 – A 25
- Safety cert.
- PL d CAT. 3
- Force limiting
- Yes
- Maturity
- commercial
- Industries
- general_manufacturing
Detailed specifications
Motion & kinematics1
- Dof
- 6
Other9
- Price Tier
- 40-80K
- Applications
- assembly,machine_tending,handling,packaging,measuring_testing,palletizing
- Sub Category
- 6-axis
- Datasheet Url
- Preview PDF online
- Max Speed M S
- 6
- Model Variants
- Racer-5-0.63,Racer-3-0.63,Racer-7-1.4
- Operating Temp
- +5°C / +40°C
- Company Country
- IT
- Additional Information
- - The Comau Racer 5-0.80 is listed on the RoboDK software platform, which provides simulation, offline programming, and integration capabilities. - RoboDK offers flexible pricing options (not specified) and is licensed software. - Not a direct manufacturer listing; specs are from the RoboDK library. - Applications mentioned include assembly, dispensing, material handling, and Remote TCP (tracked as 'pick_and_place' and 'material_handling'). - RoboDK marketplace includes add-ins and VR/AR support. - Success stories on the RoboDK site include robotic machining for sculpture (Neoset Designs) and multi-robot inspection (NASA), but these are not specific to this arm model.
