Overview

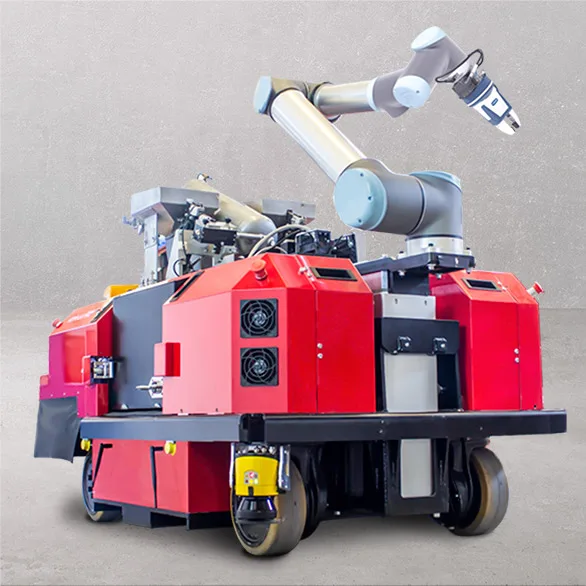

The RB-VULCANO is a completely autonomous and collaborative mobile manipulator that can safely share workspace with people through integrated lasers. It consists of a base with a lift column and a UR collaborative arm (UR5, UR10, or UR16) with payloads ranging from 5 to 16 kg. The robot features a highly maneuverable platform with wheels of infinite rotation, can perform tasks at different heights (750-1500mm arm base range), includes an integrated collaborative gripper that can be replaced with other tools, and supports multiple navigation systems including magnetic navigation, SLAM, or remote PTZ camera control.
Key facts
- Payload
- 1.75 kg
- Reach
- 1300 mm
- DOF
- 6
- TCP speed
- 1.5 m/s
Detailed specifications
Motion & kinematics1
- Dof
- 6
Compute1
- Ros Compatible
- true
Safety & certifications1
- Safety Certification
- CE
Other18
- Price Tier
- 150K+
- Applications
- pick_and_place, industrial applications
- Sub Category
- mobile manipulator
- Datasheet Url
- https://robotnik.eu/wp-content/uploads/2022/02/Robotnik-DATASHEET-RB-VULCANO-5-EN-220207-1.pdf
- Max Speed M S
- 1
- Force Limiting
- true
- Model Variants
- RB-VULCANO+ UR5e, RB-VULCANO+ UR10e, RB-VULCANO+ UR16e
- Operating Temp
- 0ºC to +45ºC
- Company Country
- ES
- Deployment Notes
- Installed in sectors like metallurgical, automotive, and construction.
- Compatible Vision
- OnRobot Eyes Camera + Box
- Industries Served
- automotive, construction, food_and_beverage, electronics
- Availability Status
- available
- Compatible Grippers
- 40 CO-ACT (Schunk)
- Countries Available
- ES, SG
- Extras.Contact Emails
- info@robosklep.com
- Programming Interface
- drag_and_drop, code_python
- Additional Information
- - Offers magnetic navigation and SLAM capabilities. - Optional battery exchange station available for improved autonomous operations. - Designed for interior use with easy access for maintenance.
