Overview

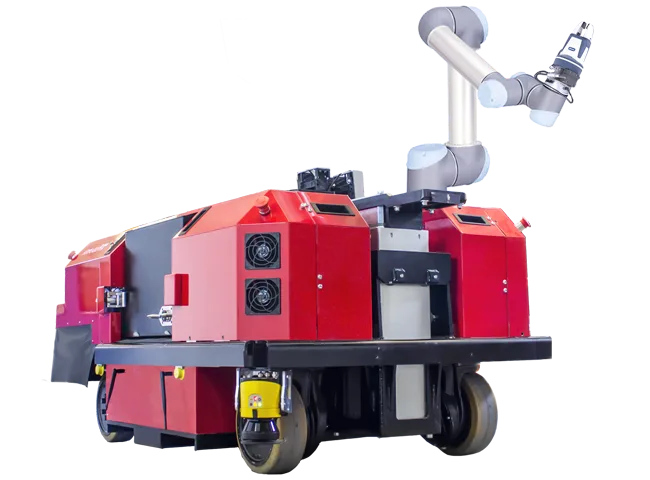

Collaborative mobile manipulator RB-VULCANO+ UR5e is completely autonomous and collaborative, capable of sharing workspace with people safely through integrated lasers. Features a base with lift column and UR5 arm with 5 kg payload, integrated collaborative gripper, highly maneuverable wheels with infinite rotation, and payload capacity up to 1,750 kg on base. The robotic arm operates at different heights between 750-1,500 mm, reaching objects from ground level to 3,000 mm high. Includes removable fairing for easy maintenance, interchangeable battery with optional automatic charging station, and supports multiple navigation systems.
Flagship features
- Offers magnetic navigation and SLAM capabilities
- Optional battery exchange station available for improved autonomous operations
- Designed for interior use with easy access for maintenance
Specifications
Category: Mobile Manipulator- Arm payload
- 16 kg
- Base speed
- 0.41667 m/s
- Battery
- 6 h
- Navigation
- lidar_slam
- ROS
- Yes
Detailed specifications
Motion & kinematics1
- Dof
- 6
Safety & certifications1
- Safety Certification
- UR+
Other18
- Price Tier
- 40-80K
- Applications
- pick_and_place,part_feeding,metrology,packaging
- Sub Category
- mobile manipulator
- Datasheet Url
- Preview PDF online
- Max Speed M S
- 1.5
- Force Limiting
- true
- Model Variants
- RB-VULCANO+ UR5e,RB-VULCANO+ UR10e,RB-VULCANO+ UR16e
- Operating Temp
- 0ºC to +50ºC
- Company Country
- PL
- Deployment Notes
- The RB-KAIROS+ is modular and commonly used for various logistic and industrial applications.
- Compatible Vision
- OnRobot Eyes Camera + Box
- Industries Served
- logistics,industrial,R&D
- Availability Status
- available
- Compatible Grippers
- 40 CO-ACT
- Countries Available
- ES,SG
- Extras.Contact Emails
- info@robosklep.com
- Programming Interface
- code_ros
- Additional Information
- - Offers magnetic navigation and SLAM capabilities. - Optional battery exchange station available for improved autonomous operations. - Designed for interior use with easy access for maintenance.
