Overview

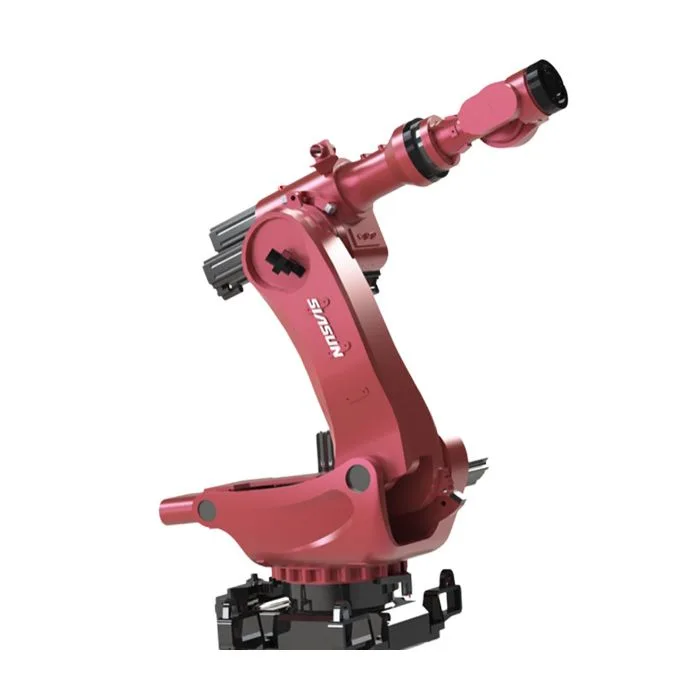

Ultra-high payload robot with 500kg payload and 2525mm reach.
Flagship features
- Heavy-duty 6-axis articulated robot with 500 kg payload and 2525 mm reach, among the highest payload tiers for general-purpose articulated robots
- Highly rigid structure for stability under heavy loads, reducing deflection and maintaining repeatability (±0.1 mm)
- Optimized dynamic response for high-speed cycle times in heavy handling cells
- IP67 wrist protection standard for harsh environments (dust, debris, splashing fluids)
- Modular and flexible design for broad industry applicability
- Controller: SRC L5
Specifications
Category: Industrial Arm- Arm class
- standard industrial
- Axes
- 6
- Payload
- 500 kg
- Reach
- 2525 mm
- Repeatability
- ±0.1 mm
- IP rating
- IP67
- Mounting
- floor
- Controller
- SRC L5
- Force limiting
- No
- Maturity
- commercial
- Industries
- automotive, lithium battery, general industrial
Detailed specifications
Other4
- Sub Category
- heavy_payload
- Company Country
- CN
- Procedure Types
- spot welding,casting,handling,arc welding
- Additional Information
- - Heavy-duty 6-axis articulated robot with 500 kg payload and 2525 mm reach, among the highest payload tiers for general-purpose articulated robots. - Highly rigid structure for stability under heavy loads, reducing deflection and maintaining repeatability (±0.1 mm). - Optimized dynamic response for high-speed cycle times in heavy handling cells. - IP67 wrist protection standard for harsh environments (dust, debris, splashing fluids). - Modular and flexible design for broad industry applicability. - Controller: SRC L5. - Applications: spot welding, casting, handling, loading/unloading. - Target industries: automotive (welding assembly lines), lithium battery manufacturing, general industrial. - Listed as 'Add to Quote' — no public price, suggests enterprise pricing (estimated tier: 80-150K USD). - Availability: subject to availability (in stock on reseller site). - Origin: China. - Reseller: americansatellite.com.
