Overview

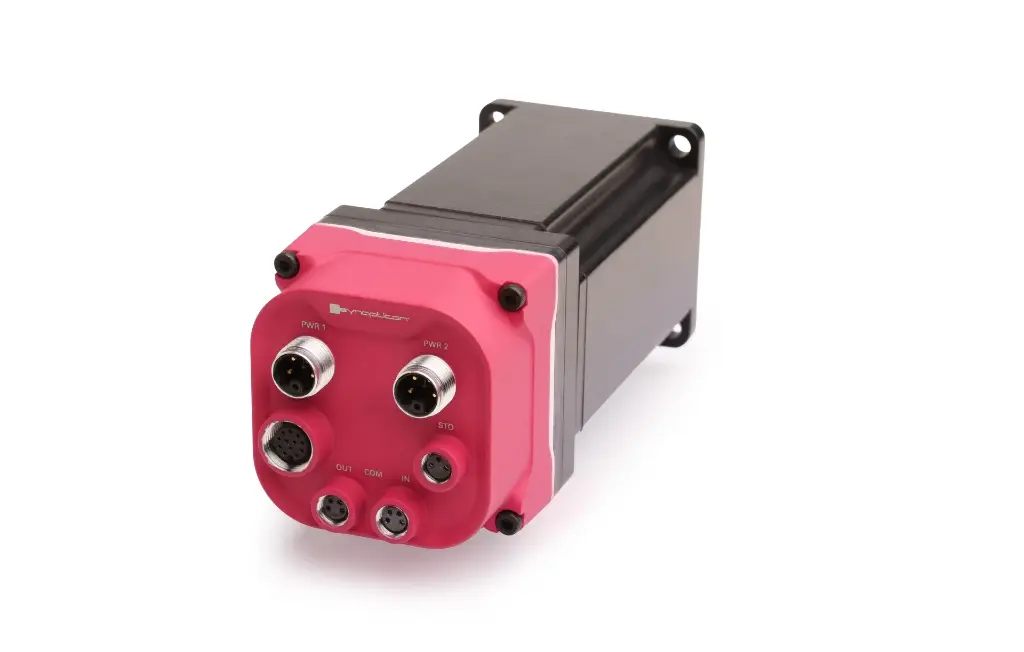

The ACTILINK-S Integro series motors offer the highest power density in the smallest space and integrate the SOMANET Integro series into cost-effective and reliable servo motors. Enjoy all the benefits of our fully equipped ServoDrive series for servo motors - already assembled and ready for use.
Key facts
- Payload
- —
- Reach
- —
- Speed
- —
- Weight
- —
- IP rating
- —
- Battery
- —
- Power
- —
- Autonomy
- —
- Launch year
- —
- Price
- $2,029
- Status
- active
Detailed specifications
Power & battery1
- Power Options
- {"power":"200W","speed":"3000RPM","torque":"0.65Nm","voltage":"48V"}, {"power":"400W","speed":"3000RPM","torque":"1.3Nm","voltage":"48V"}, {"power":"600W","speed":"3000RPM","torque":"2.0Nm","voltage":"48V"}
Safety & certifications2
- Safety Option
- STO/SBC via IO
- Safety Certification
- CE, IEC-61800
Other9
- Io Options
- 24 V Out + 2x AI + 2x DIO + 1x DI + 1x Ext Enc
- Price Tier
- 20-40K
- Datasheet Url
- https://www.vantageprecision.com.au/web/content/product.template/1064/x_studio_datasheet?download=1
- Model Variants
- Actilink-SC 6-1, Actilink-SC 6-2, Actilink-SC 6-3, Actilink-SC 8-1, Actilink-SC 8-2
- Operating Temp
- 0°C to 40°C
- Company Country
- Germany
- Controller Model
- SOMANET Integro 6[1][2]
- Deployment Notes
- 1000+ customers have automated with Synapticon products.
- Additional Information
- - Integrated Encoder options: 18 bit, 14 bit, 12 bit - Operational Power: 200 W, 400 W, and 600 W versions available - Connector Variants including Metric, Y-Tec, and I-Tec - Safety Options available - Supports EtherCAT fieldbus - Brake options available: None or with brake
