TS3-90S-P N-14TR
Built by Dongguan Tongyi Plastic Machinery Manufacturing · China
The TS3-90S-P N-14TR is a Industrial Arm developed by Dongguan Tongyi Plastic Machinery Manufacturing (China), listed at $5,000 USD (unverified). Key specifications: repeatability ±0.1 mm, programming teach pendant,proprietary app, safety cert. CE, ISO, force limiting No.
RoboScore
Speculative — thin evidence
No confirmed deployment on record — this score reflects the rest of the record, not verified adoption.
4 of 9 signals present
Recomputed nightly from public data. Missing data is skipped, never zero-filled — and rankings are never for sale.
Weighted factors
average of the 4 scored · blanks don't count
Ranked in the Industrial Arm standing, against 773 robots.
See the standingWill it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
Tell us what your job needs — payload, budget, region, must-have certifications — and we'll show how TS3-90S-P N-14TR measures up, requirement by requirement. The RoboScore (trust) above is shown for every buyer, regardless.
Overview
Three-axis AC servo driven robot for injection molding machines, designed for rapid and precise removal of finished products and sprues. Features high rigidity, low vibration, and repeatability at ±0.1mm. Payload up to 6kg, vertical stroke 900mm.
At a glance
- Built for pick and place, palletizing and sorting
- Programmed through Palm controller with changeable Chinese/English screen and teaching function
- Backed by a 1-year warranty
- Sold in China and Vietnam
Buyer decision signals
Viability

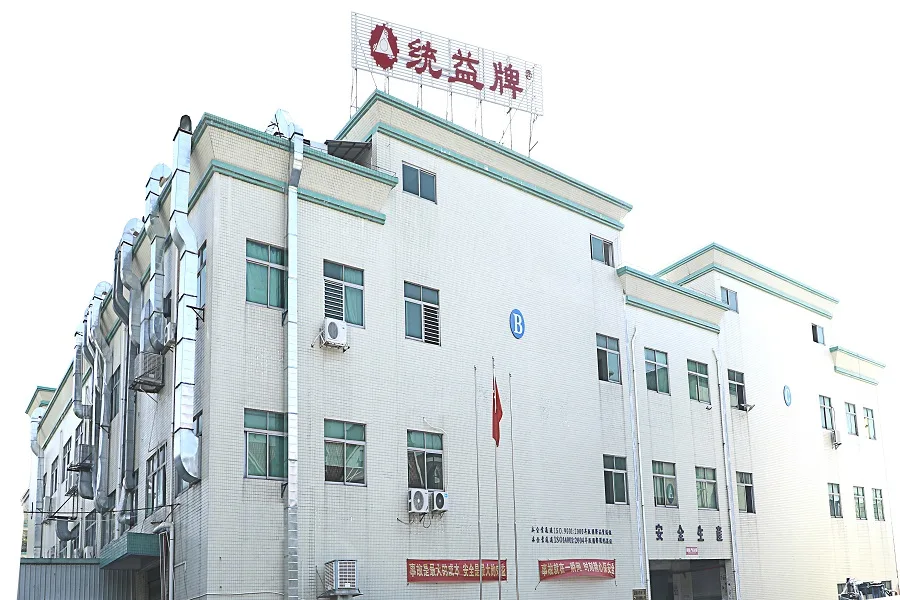

Dongguan assembly plant established
Price
purchase
Unverified — no source on record
Availability
Specifications
Category: Industrial Arm- Repeatability
- ±0.1 mm
- Programming
- teach pendant,proprietary app
- Safety cert.
- CE, ISO
- Force limiting
- No
- Industries
- automotive, plastics_injection_molding, electronics
Company profile
- Founded
- 1999
Detailed specifications
What it is built for2
- Applications
- pick and place,palletizing,sorting,packing,injection molding,press tending,stamping
- Sub Category
- 3-axis cartesian robot (traverse robot for injection molding machine)
Size & capacity1
- Production Capacity
- 1000 units per year
Movement & precision1
- Dof
- 3
Controls & integration4
- Api Available
- false
- Ros Compatible
- false
- Software Platform
- Palm controller with changeable Chinese/English screen, teaching function, 100 sets internal memory
- Training Required
- basic_<1day
Buying & support8
- Hs Code
- 8428904000
- Price Tier
- 5-10K
- Pricing Model
- purchase
- Model Variants
- TS3-70S-P/N-13TR,TS3-90S-P/N-14TR,TT3-100S-P/N-16TR,TT3-120S-P/N-16TR,TT3-140S-P/N-17TR
- Warranty Years
- 1
- Lead Time Weeks
- 3
- Availability Status
- available
- Countries Available
- China,Vietnam
Other details30
- Arm Type
- Single-Stage
- Usb Port
- true
- Jig Circuit
- Standard 2 suction 2 grasp
- Drive System
- AC Servo Motor (all axes)
- Power Supply
- AC 220V±10%, 50/60Hz
- Payment Terms
- 70% prepayment, 30% balance before delivery
- Control System
- Micro-computer with palm controller
- Imm Range Tons
- 100-220
- Limit Switches
- true
- Oilless Design
- true
- Additional Axes
- BC/AC rotation axes can be customized
- Air Pressure Mpa
- 0.5-0.8
- Display Languages
- 8 languages (Chinese/English etc.)
- Euromap Connector
- Optional (Euromap 12 or Euromap 67)
- Linear Guide Rail
- High precision linear guide rail (traverse, crosswise, vertical)
- Machine Weight Kg
- 220
- Optional Features
- Spray mold release agent, middle platen inspection, pneumatic scissors, photoelectric inspection, automatic adjustment, robot follow up movement, automatic lubrication, 90° rotated cylinder, vacuum failure circuit, quick jig change, IO board extension
- Take Out Time Sec
- 0.65
- Teaching Function
- Yes (teach pendant with coordinate programming)
- Dry Cycle Time Sec
- 5
- Traverse Stroke Mm
- 1450
- Vertical Stroke Mm
- 900
- Packing Arrangement
- 4 sets stacking, max 200 packages, 256 points per axis
- Position Accuracy Mm
- 0.1
- Anti Collision Device
- true
- Air Consumption Ni Cycle
- 5
- Internal Memory Capacity
- 100 sets
- Lead Time Off Season Days
- 15
- Lead Time Peak Season Days
- 15
- Main Arm Crosswise Stroke Mm
- 600
Where to buy
Get a price or reach an authorized seller — pick your region, then request a quote.
No authorized seller is listed for this robot yet — request a quote below and we’ll connect you with Dongguan Tongyi Plastic Machinery Manufacturing Co.,Ltd or an authorized seller.
Request a quote — goes straight to Dongguan Tongyi Plastic Machinery Manufacturing Co.,Ltd.
Every authorized seller serving your region is shown equally — placement is never sold, and this data never affects a robot’s score. A seller’s absence here doesn’t mean they aren’t authorized.
Company milestones
- 1999MilestoneDongguan assembly plant established
Compare with peers
More by Dongguan Tongyi Plastic Machinery Manufacturing
Frequently asked questions
- Who makes the TS3-90S-P N-14TR?
- The TS3-90S-P N-14TR is developed by Dongguan Tongyi Plastic Machinery Manufacturing, based in China.
- What type of robot is the TS3-90S-P N-14TR?
- The TS3-90S-P N-14TR is a Industrial Arm made by Dongguan Tongyi Plastic Machinery Manufacturing.
- How much does the TS3-90S-P N-14TR cost?
- The TS3-90S-P N-14TR is listed at $5,000 USD in the Robolist catalogue, but this figure is unverified and not confirmed by Dongguan Tongyi Plastic Machinery Manufacturing — contact them for a quote.
- What are the key specifications of the TS3-90S-P N-14TR?
- Key specifications of the TS3-90S-P N-14TR: repeatability ±0.1 mm, programming teach pendant,proprietary app, safety cert. CE, ISO, force limiting No, industries automotive, plastics_injection_molding, electronics.
