Overview

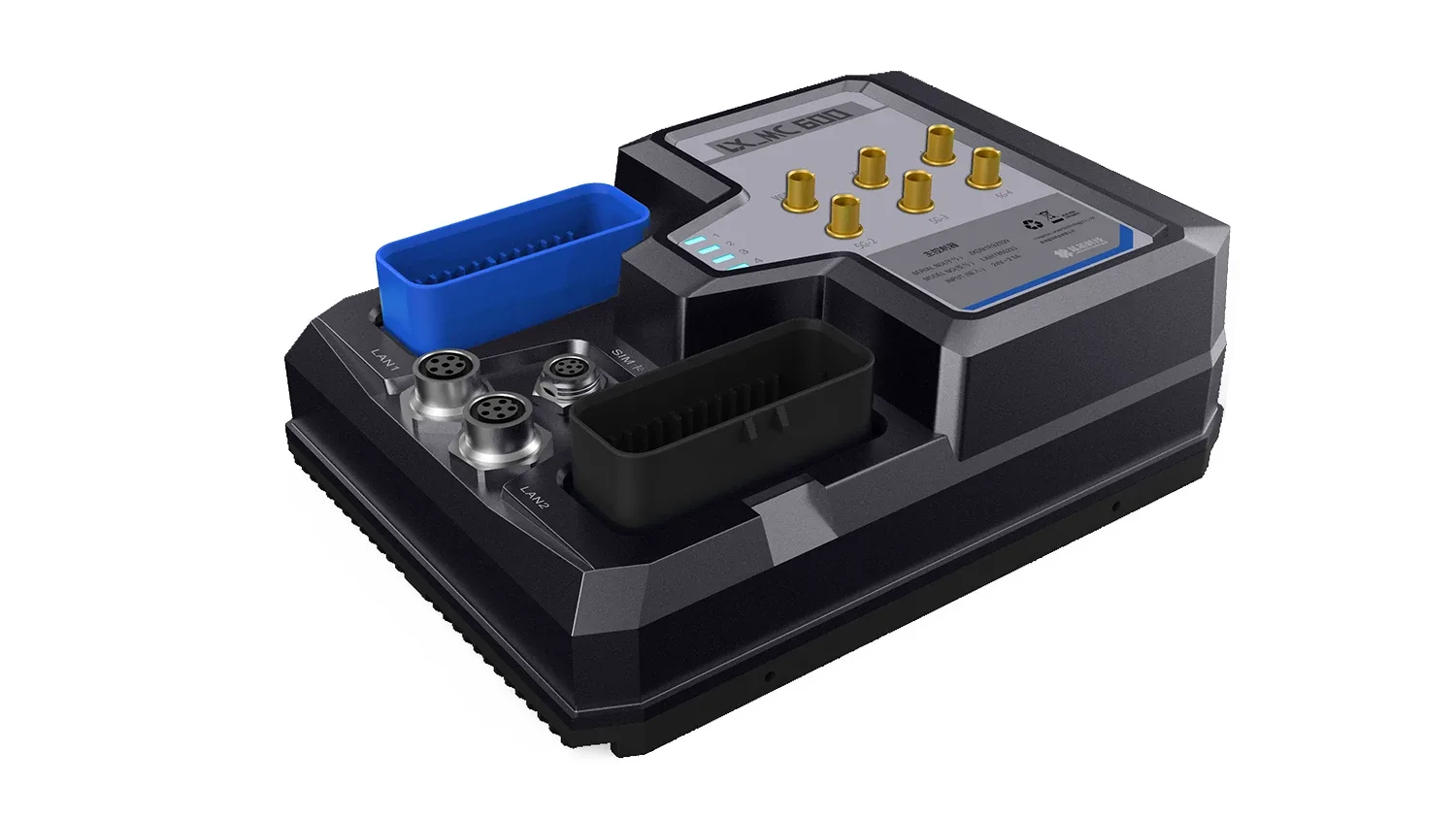

The VMR-MC600(G) is a universal core controller for mobile robots, independently developed by Lanxin Robotics. It integrates a core processor, IO control, bus communication, and power management into a single unit. Designed to industrial standards, it features a compact size, powerful computing capability, high integration, and a wide range of functions. It supports 5G communication, WiFi, and VDA5050 protocol, and can coordinate up to 1000 robots. As of 2023, over 12,000 units have been deployed, demonstrating its reliability in warehouse and logistics automation environments.
Key specs
- Built for logistics handling, manufacturing assembly and inspection
- Used across logistics and manufacturing
- Programmed through python and proprietary app
- Public API for integration
- Rated for operation at 10 to 50 °C
Will it fit your job?
Tell us the job in plain words — we'll show how this robot measures up, line by line.
At a glance
Specifications
Specifications not yet on file.
Company profile
- Recorded funding
- US$15.7M· 1 round
- Founded
- around 2016
Detailed specifications
What it is built for6
- Applications
- warehouse transport,inspection
- system controller
- logistics,manufacturing
- Target Industries
- logistics 3pl,ecommerce fulfillment,manufacturing
- Primary Applications
- logistics handling,manufacturing assembly,inspection
- indoor
Size & capacity5
- Width Mm
- 130
- 6.2
- Height Mm
- 62
- Length Mm
- 173
- Dimensions Mm
- 173 × 130 × 62
Controls & integration8
- Open Api
- limited rest
- Yes
- Python,C++
- Air Gap Capable
- Yes
- Network Protocols
- wifi 6,5g,ethernet
- Fieldbus Protocols
- CAN,RS485,RS232,Ethernet
- wifi,ethernet,cellular 5g,can bus,usb
- code python,proprietary app
Safety & certification2
- -10 to 50 °C
- Emergency Stop Count
- 2
Buying & support8
- Datasheet Url
- View Link
- Model Variants
- VMR-MC600,VMR-MC600G
- Deployment Count
- 12000
- Price On Request
- Yes
- Country Of Origin
- CN
- Is Research Grade
- No
- Availability Status
- available
- Service Network Density
- regional
Other details87
- OTA
- Supports OTA updates within the local network for program updates via the distribution system
- USB 2.0
- 1 channel
- VDA5050
- Supports VDA5050 protocol for seamless integration with compliant systems
- Voltage
- 48 VDC
- Call Box
- Tasks triggered by call boxes can be freely configured
- Modbus API
- Standard Modbus API for secondary development
- Net Weight
- 800 g
- Net Weight
- 800 g
- Relocation
- Relocate the robot via the screen or backend, based on station points
- LAN1 Status
- Blinking green
- LAN2 Status
- Blinking green
- Map Editing
- Edit maps to add routes and operation points to complete business processes
- Safety Edge
- 1 channel, series connection, end resistance 8.2kΩ
- Audio Output
- 2 channels, 15W each
- Map Creation
- Create maps for robot operation in the backend
- Safety Input
- 1 channel, normally closed
- Start Button
- 1 channel, normally open
- Touch Screen
- Robot visualization and control through the touch screen
- Voice Alarms
- Configure different voice alerts for different anomalies
- Map Stitching
- Combine multiple maps into a single one for larger areas
- Task Transfer
- The system reassigns tasks if a robot cannot complete its current task or if another robot is more suitable
- CAN Interfaces
- 3 channels (2 for MCU, 1 for motherboard)
- Log Management
- Automatically filter relevant logs for analysis based on anomaly type
- Manual Control
- Manual robot control via interface buttons for movements
- Mobile Network
- Full 5G support optional
- Audio Output W
- 2 × 15W
- Can Interfaces
- 3
- Emergency Stop
- Yes
- Mobile Network
- Optional full 5G
- Abnormal Alerts
- Pop-up alerts or bubbles for anomalies
- Command Control
- Control specific robot actions and I/O
- Power Indicator
- Stable green
- Power Interface
- 1 channel, maximum power 200W
- 5G Communication
- 5G support will significantly reduce network instability
- Avoid Congestion
- Replan routes to avoid blocked paths and find the fastest available route
- Batch Operations
- Bulk edit points and lines on the map
- Elevator Support
- The system supports floor calling and switching for elevators and dumbwaiters, as well as automatic card switching
- Function Buttons
- Power, reset, pause, manual/automatic switch
- Protection Level
- IP54
- RS232 Interfaces
- 2 channels (1 for MCU, 1 for motherboard)
- RS485 Interfaces
- 5 channels (4 for MCU, 1 for motherboard)
- Self Consumption
- 7 W
- Status Indicator
- Blinking green
- Wireless Network
- IEEE 802.11ax/ac/a/b/g/n(2T2R), 2.400GHz~2.4835GHz, 5.150GHz~5.850GHz
- Fleet Management
- Yes
- Rs232 Interfaces
- 2
- Rs485 Interfaces
- 5
- Wireless Network
- IEEE 802.11ax/ac/a/b/g/n, 2T2R
- Dimensions(L*W*H)
- 173 mm * 130 mm * 62 mm
- Operating Voltage
- 48 VDC
- Operating Voltage
- 48 VDC
- Real Time Control
- Control robot speed, battery level, location, status, and sensor data in real time
- Ethernet Channels
- 2
- Visual Indicators
- status led,power indicator
- Device Calibration
- One-click calibration for major devices (laser, camera, 3D laser)
- Dimensions (L*W*H)
- 173 mm * 130 mm * 62 mm
- Operating Humidity
- 10~90% RH, non-condensing
- Operating Humidity
- 10~90% RH, no condensation
- WiFi Communication
- WiFi support with roaming switch for stable connectivity during travel
- Operating Humidity
- 10~90% RH, non-condensing
- Self Consumption W
- 7
- Automated Equipment
- Integration with equipment supporting common automation protocols for task calls and loading/unloading actions
- Ethernet Interfaces
- 2 channels, 10/100/1000Mbps, M12 interface
- Storage Temperature
- -20~60°C
- Storage Temperature
- -20~60°C
- Max Robots Dispatch
- 1000
- Programming Methods
- block programming
- Storage Temperature
- -20~60°C
- Emergency Stop Input
- 1 channel, normally closed
- Operating Temp Max C
- 50
- Operating Temp Min C
- -10
- Over The Air Updates
- Yes
- Emergency Stop Output
- 1 channel, normally closed
- Operating Temperature
- -10~50 °C
- PC Background Display
- Robot visualization and operation via a PC
- Digital Interfaces Di
- 12
- Digital Interfaces Do
- 4
- Emergency Stop Inputs
- 1
- Emergency Stop Outputs
- 1
- Power Consumption Avg W
- 7
- Teleoperation Supported
- Yes
- Multi Robot Distribution
- Coordinate and manage multiple robots, supporting up to 1,000 robots
- Automatic Synchronization
- Automatic synchronization of maps with other robots after modification
- Multi Robot Collaboration
- Enable multiple robots to perform the same task collaboratively
- Automatic Door/Aerial Shower Door
- The vehicle will request to open the door when passing through and close it afterwards
- Digital Input Interfaces (12 Channels)
- 1 channel for hand load status monitoring, 2 channels for upper/lower limit positions of the fork, 2 channels for left/right positioning of the fork, 1 channel for chassis operation authorization, 6 channels reserved
- Digital Output Interfaces (4 Channels)
- 1 channel for load transfer, 1 channel for auxiliary device power supply, 1 channel for chassis motor power supply, 1 channel for auxiliary device operation authorization
