Overview

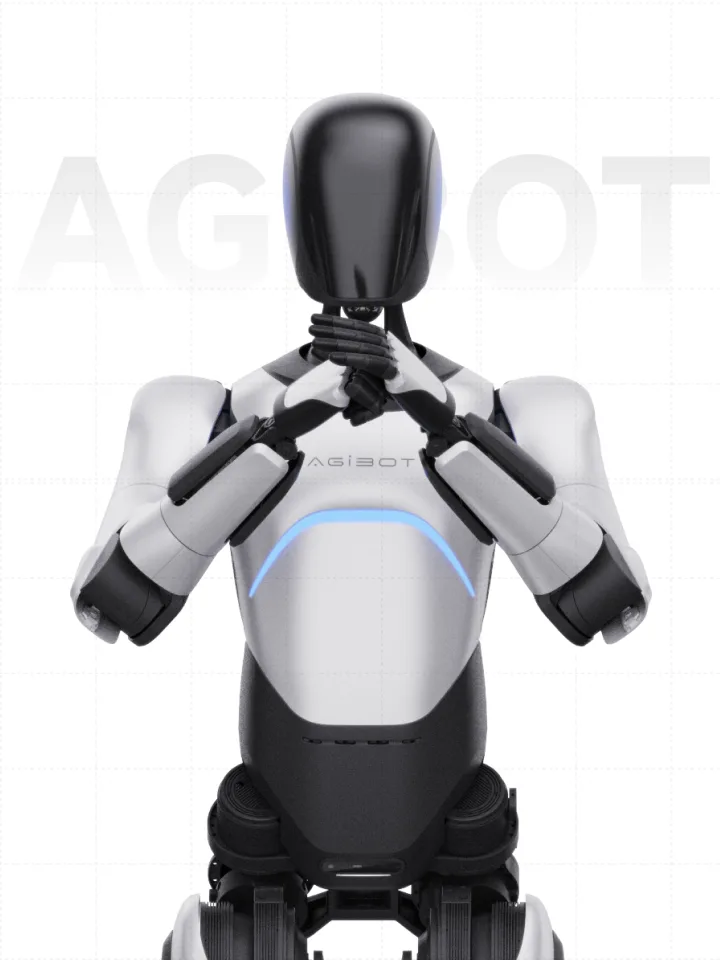

Der AGIBOT X1 ist ein vollständig quelloffener Roboter mit modularem Design, hoher Freiheitsgrade und sicherem Leichtbau, was ihn für verschiedene Anwendungen hochskalierbar macht.
Detailed specifications
Motion & kinematics1
- Dof Total
- 34
Safety & certifications1
- Grip Force N
- 30
Other6
- Height Mm
- 1300
- Sub Category
- bipedal
- Company Country
- CN
- Core Components
- {"name":"PowerFlow R86-3","peak_speed":"85rpm","peak_torque":"200N·m","rated_torque":"60N·m","rated_voltage":"48V","rated_rotational_speed":"30rpm"},{"name":"PowerFlow R86-2","peak_torque":"80N·m","rated_torque":"20N·m","rated_voltage":"48V DC","rated_rotational_speed":"70rpm","maximum_non_loaded_speed":"260rpm"},{"name":"PowerFlow R52","peak_torque":"19N·m","rated_torque":"6N·m","rated_voltage":"48V DC","rated_rotational_speed":"50rpm","maximum_non_loaded_speed":"130rpm"},{"name":"PowerFlow L28","maximum_speed":"50mm/s","rated_voltage":"24V","maximum_thrust":"110N"},{"name":"Domain Controller DCU","features":"High integrated power & communication solution, provides secondary development SDK for Linux"},{"name":"Adaptive Gripper OmniPicker","maximum_stroke":"120mm","working_voltage":"12V~30V","opening_closing_time":"0.7s","maximum_clamping_force":"30N"}
- Walking Speed Ms
- 1
- Additional Information
- - Advanced humanoid design for flexibility and performance. - Modular architecture enabling easy upgrades and maintenance. - Offers open-source support for developers. - Targeted for research and practical deployments in various sectors.
