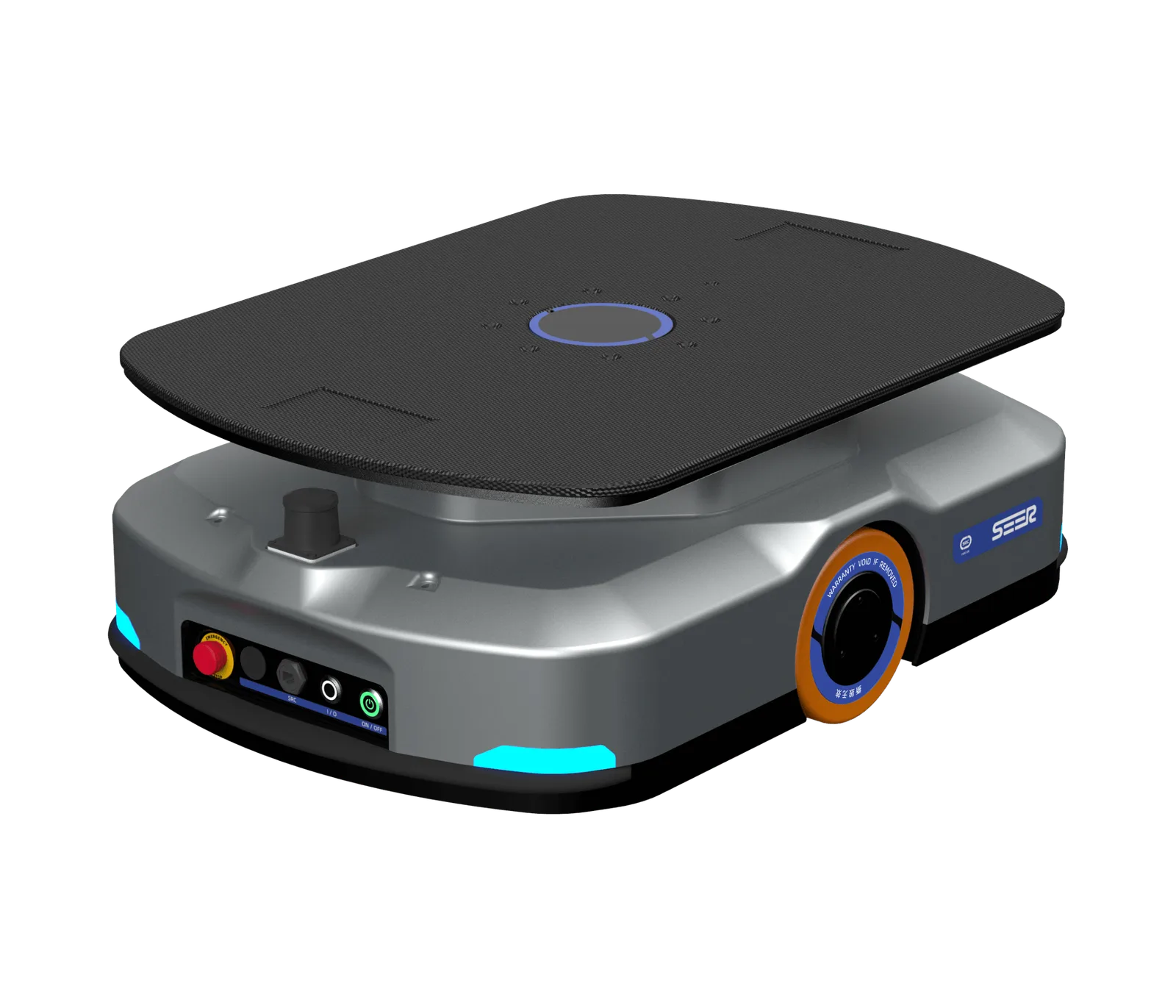

CSK04-KJ 400kg Payload Industrial AMR
Built by Luoyang Rock Precision Engineering
Updated May 2026·methodology
Overview
The CSK04-KJ is an autonomous mobile robot (AMR) designed for industrial material transport with a 400 kg payload. It features navigation options including magnetic tape, nail, QR code, laser, and SLAM. The robot offers 360° rotation, positioning accuracy of ±10mm, and supports multi-AGV linkage and elevator integration for cross-floor transport. It can operate autonomously with scheduled tasks, integrates with WMS/MES systems, and supports wireless and auto-charging. Standard safety features include laser obstacle avoidance, a bumper, and emergency stops. The AMR is built for 24/7 operation with low energy consumption and global brand-grade durability.
Detailed specifications
Motion & kinematics1
- Position Angle Accuracy
- ±5 mm / ±0.5°
Power & battery2
- Battery Spec
- 51.2V 20Ah LFP
- Charge Time 10 To 80 Percent
- ≤1h
Other14
- Hs Code
- 8427109000
- Drive Mode
- Electric
- Control Mode
- Point to Point Control
- Max Lift Stroke
- 60±2 mm
- Passability Gap
- 30 mm
- Standard Config
- 1(H1) + 1(C2) LiDAR, E-Stop, Speaker, Bumper
- Passability Step
- 5 mm
- Passability Slope
- ≤5%
- Lift Platform Size
- 750×545 mm
- Optional Functions
- QR Code Positioning/Navigation, Laser Reflector Navigation
- Standard Functions
- Wi-Fi Roaming, Auto Charging, Rack Recognition, Follow Mode
- Production Capacity
- 500 Pieces/Year
- Customization Available
- Yes
- Charging Mode Manual Auto
- Yes
