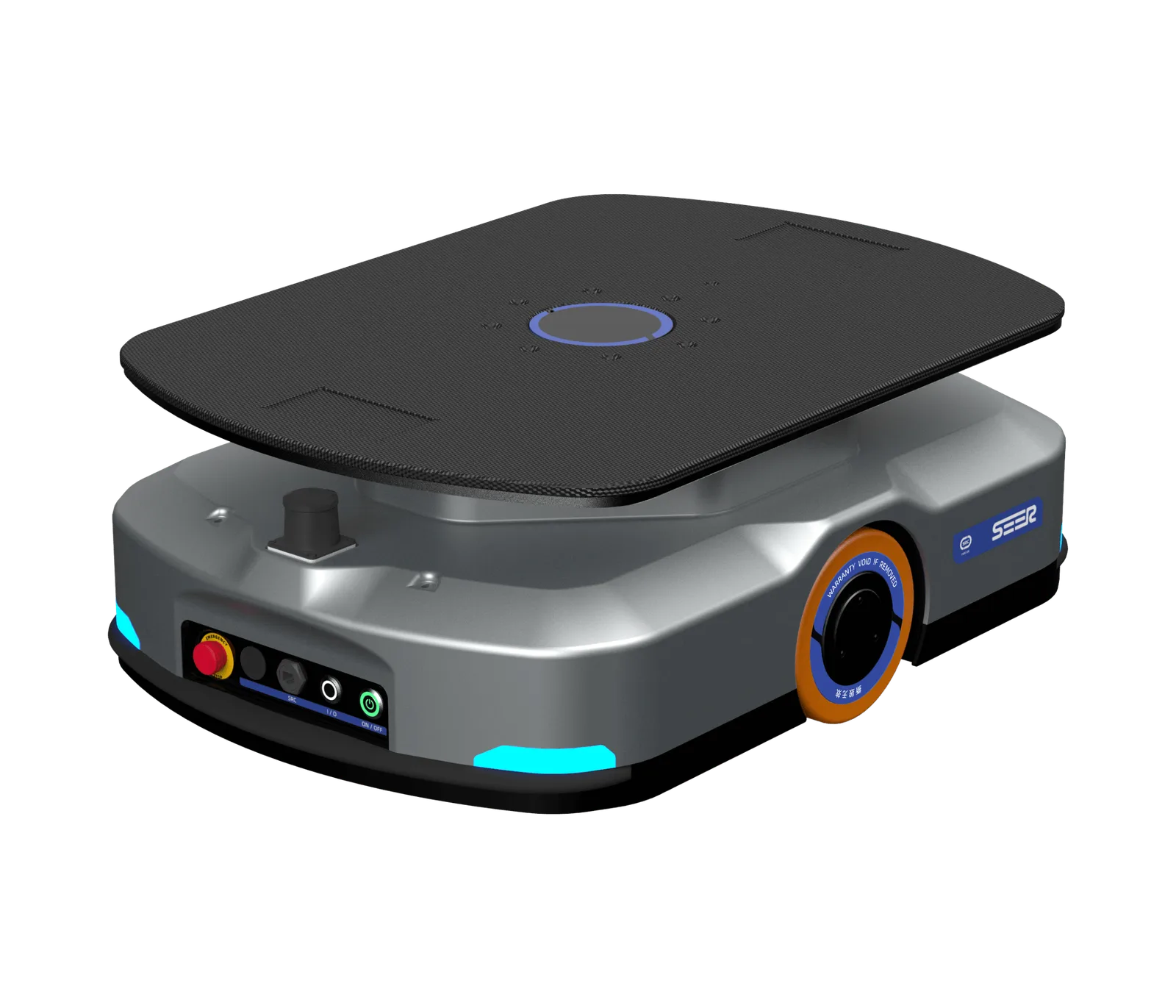

CSL04-KJ / CSK04-KJ 400kg AGV
Built by Luoyang Rock Precision Engineering
Updated May 2026·methodology
Overview
The CSK04-KJ is a 400 kg payload AGV designed for electronics assembly lines, supporting sensitive component transport. It features multiple navigation options (Magnetic tape, QR code, Laser, SLAM), auto-charging with an 8-hour runtime and under 1-hour charge time. It includes comprehensive safety systems (collision avoidance, emergency stop, obstacle sensors, laser scanner), multi-AGV linkage, elevator integration for cross-floor transport, and customizable WMS/MES connectivity. Key specs: dimensions 810x545x250mm, weight 120 kg, LiFePO4 battery (51.2V, 20Ah), max speed 1.5 m/s, positioning accuracy ±5mm, and ground clearance 25mm.
Detailed specifications
Motion & kinematics1
- Localization Accuracy Mm
- 5
Power & battery2
- Battery Chemistry
- lifepo4
- Battery Capacity Kwh
- 1.024
Sensors1
- Lidar Count
- 2
Safety & certifications1
- Emergency Stop Count
- 1
Other15
- Width Mm
- 545
- Height Mm
- 250
- Length Mm
- 810
- Industries
- ecommerce_fulfillment,manufacturing
- Payload Class
- medium
- Lift Height Mm
- 60
- Price Currency
- USD
- Pricing Models
- capex
- Price On Request
- false
- Wms Integrations
- WMS,MES
- Network Protocols
- wifi_5
- Environment Rating
- indoor_only
- Min Aisle Width Mm
- 685
- Obstacle Detection
- true
- Ground Clearance Mm
- 25
