Overview

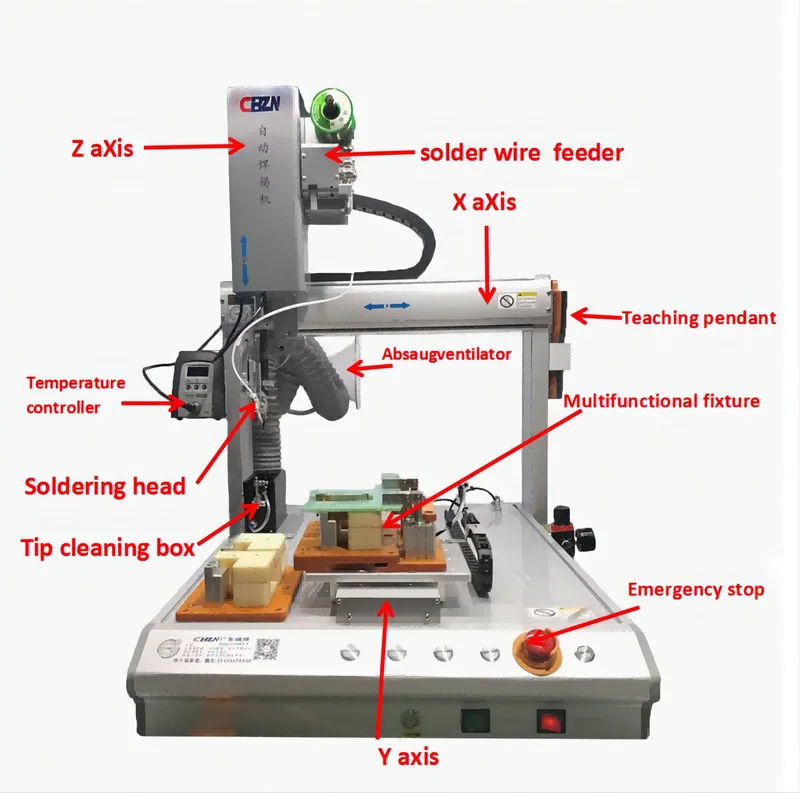

Automatic PCB Laser Solder Automatic soldering machine is an automatic soldering equipment, which mainly completes the soldering operation by using the motion function of the manipulator. The core part of the automatic PCB soldering machine is the soldering system. The soldering system is mainly composed of automatic tin feeding mechanism, temperature control, heating element and soldering iron head. The soldering iron unit can be adjusted to any direction, 360° free rotation for R-axis. Data cable soldering machine is for XYZ movements with teaching pendant for easy programming, even beginner can quickly grasp the operation essentials. Widely used in electronic products as wires, PCBA, Led light, circuit boards, home appliances, etc.
Detailed specifications
Motion & kinematics4
- Dof
- 3
- Dispensing Accuracy
- 95
- Machine Accuracy Mm
- 0.03
- Tin Feeding Accuracy Mm
- 0.2
Power & battery1
- Laser Power
- 150
Compute2
- Industrial Computer
- I5-6, 8G Memory, 128SSD+1T, Win7
- Package Gross Weight Kg
- 130
Other17
- Motor
- Servo motor
- HS Code
- 8515190090
- Stoke Mm
- 300*300*100
- Customs Code
- 8515190090
- Applications
- pcb_assembly,soldering_assistance
- Sub Category
- 3-axis soldering robot
- Pricing Model
- purchase
- Warranty Years
- 2
- Package Size Cm
- 105.00 * 85.00 * 90.00
- Station Size Mm
- 200*200
- Procedure Types
- Solder Wire Feeding, Automatic spot/drag welding, Point soldering / Drag soldering[1][2]
- Training Required
- basic_<1day
- Solder Wire Dia Mm
- 0.5-1.2
- Temperature Celsius
- 100°C~480°C
- Availability Status
- available
- Laser Output Stability
- < (+/-5%)
- Production Capacity Sets/Month
- 500
