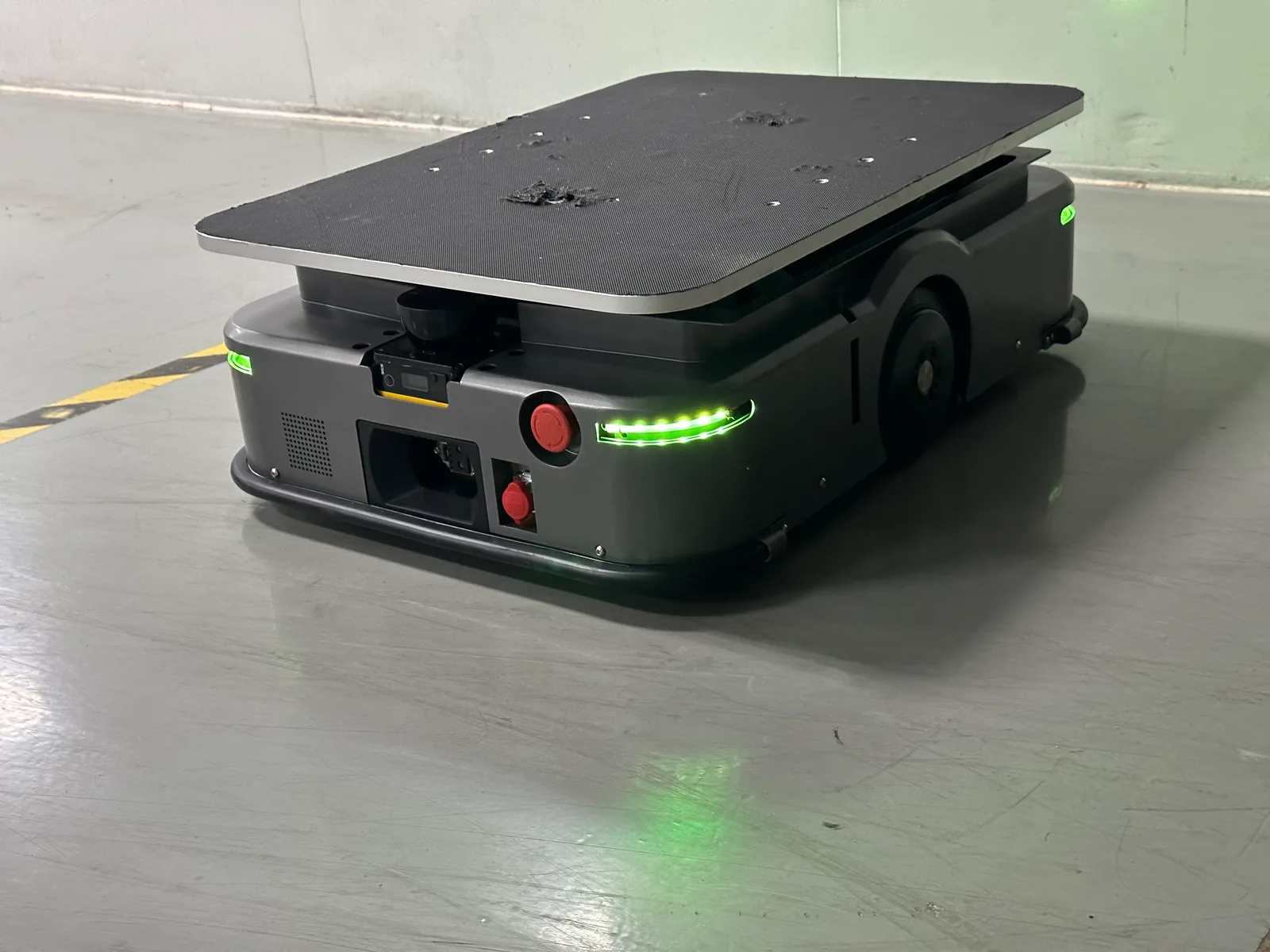

W3-300J Under Drive Lifting AGV Robot
Built by Shenzhen Wellwit Robotics · China
Updated May 2026·methodology
Overview
The W3-300J is a 300kg payload autonomous mobile robot using LiDAR SLAM navigation for fast deployment. It features a modular lifting mechanism, automatic charging, cluster scheduling via a fleet control system, and multiple safety protections including a LiDAR safety barrier, front bumper, and emergency stop buttons. Designed for indoor transport in warehouses and factories, it operates with a 48V/20Ah lithium iron phosphate battery providing up to 8 hours of runtime. The robot supports Wi-Fi roaming, shelf recognition, and optional QR code positioning, and is built for integration via an API interface.
Detailed specifications
Motion & kinematics2
- Localization Accuracy Mm
- 5
- Navigation Angle Accuracy Deg
- ±1
Power & battery3
- Battery Chemistry
- lifepo4
- Charge Cycles Rated
- 1500
- Battery Capacity Kwh
- 0.96
Sensors1
- Lidar Count
- 1
Safety & certifications1
- Emergency Stop Count
- 2
Other36
- Api Type
- open_rest
- Width Mm
- 545
- Height Mm
- 250
- Length Mm
- 760
- Drive Mode
- Double wheel differential
- Industries
- manufacturing,general_warehousing
- Amr Subtype
- other
- Wifi Roaming
- true
- Payload Class
- medium
- Lift Height Mm
- 60
- Price Currency
- USD
- Pricing Models
- capex
- Basic Functions
- map editing, model editing, positioning and navigation, differential motion model, API interface
- Lead Time Weeks
- 4
- Max Incline Deg
- 2.8
- Lifting Time Sec
- 5±0.5
- Price On Request
- false
- Network Protocols
- wifi_5
- Shelf Recognition
- true
- Visual Indicators
- status_led
- Environment Rating
- indoor_only
- Obstacle Detection
- true
- Passability Gap Mm
- 30
- Charging Time Hours
- 1.5
- Countries Available
- North America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
- Floor Compatibility
- smooth_concrete,epoxy
- Ground Clearance Mm
- 25
- Max Speed Loaded Ms
- 1.5
- Passability Step Mm
- 5
- Pedestrian Detection
- generic_obstacle
- Primary Applications
- manufacturing_logistics
- Runtime Loaded Hours
- 8
- Max Speed Unloaded Ms
- 1.5
- Passability Slope Pct
- ≤5
- Service Network Density
- global
- Multi Robot Traffic Management
- dynamic_optimization
